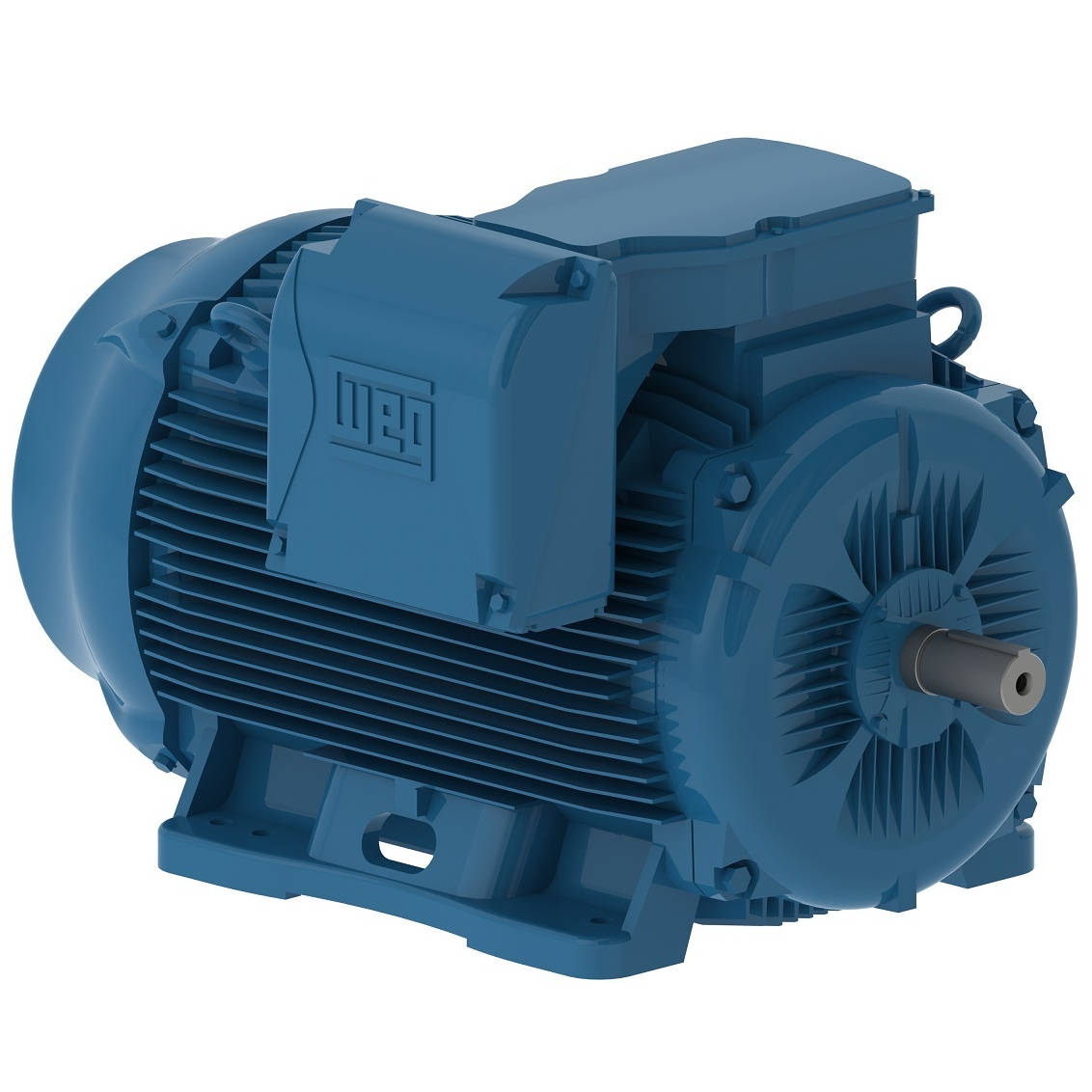

20018ET3HRB447T-W22 WEG 200HP Crusher Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 20018ET3HRB447T-W22

20018ET3HRB447T-W22 WEG 200HP Crusher Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 20018ET3HRB447T-W22

Selected accessories will also be added to cart
$18,777.22 / Each
Quantity:
IC411 - TEFC, IP55, 445T/447T Frame, 575VAC 60Hz 3 Phase, 11165224, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 3-3/8" Keyed Shaft

Electric Motors

Frame445/7T
Output200 HP (150 kW)
Number of Poles4
Frequency60 Hz
Rated speed1785 rpm
Slip0.83 %
Rated voltage575 V
Rated current184 A
L. R. Amperes1251 A
LRC6.8x(Code G)
No load current56.0 A
Rated torque588 ft.lb
Locked rotor torque229 %
Breakdown torque250 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)76.2 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?73.0 dB(A)
Approx. weight?2301 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.2  96.2

Power factor

50%75%100%
0.73  0.82  0.85

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWith
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing typeNU-319 C3 6316 C3
SealingWSeal WSeal
Lubrication interval5000 h 10000 h
Lubricant amount45 g 34 g
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
2770 lb 5072 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Enclosure
TEFC
Input Voltage
575VAC
Application
Crusher
Horsepower
200HP
Frame
445T
Frame
447T
