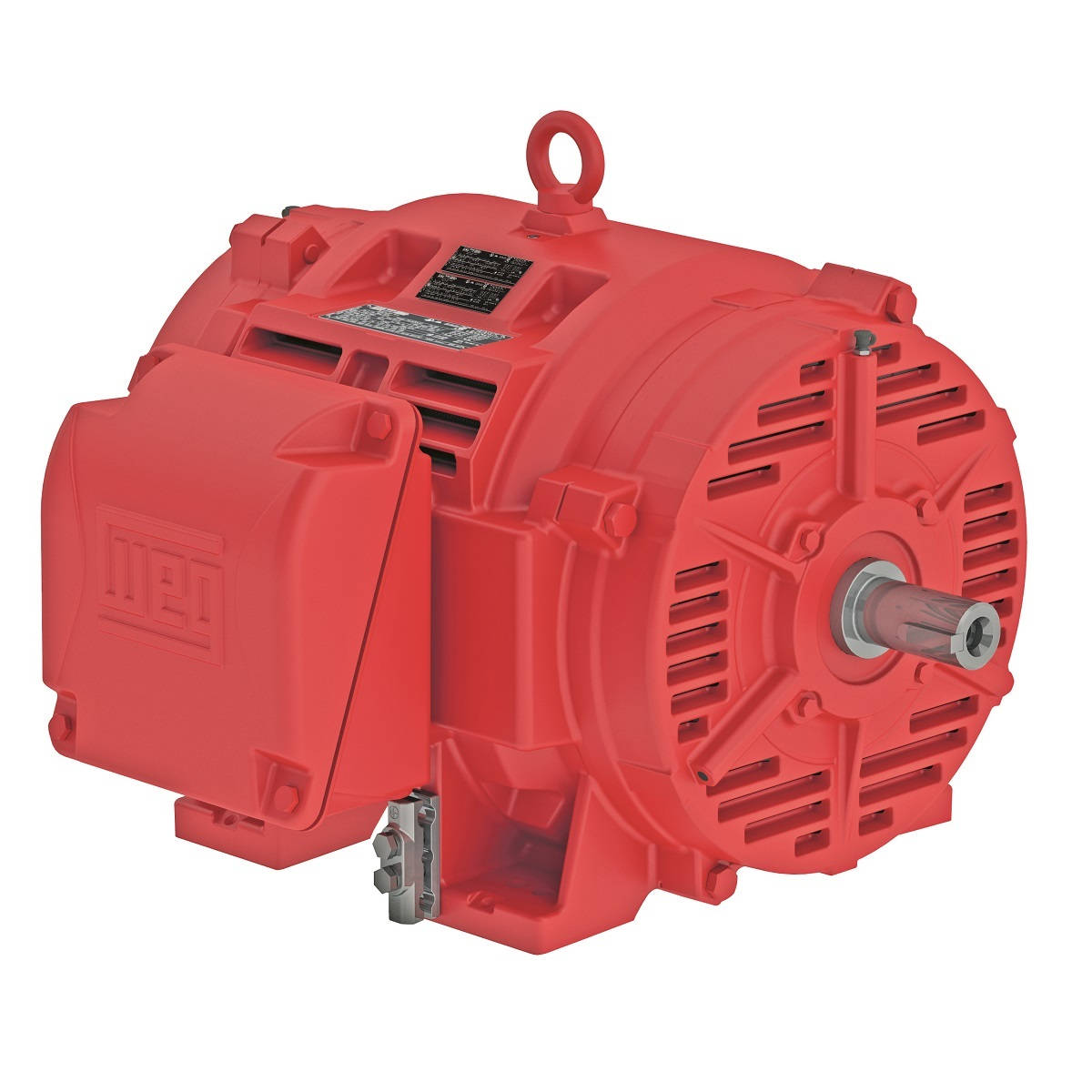

20036OP3JFP444TS-W40 WEG 200HP Fire Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 20036OP3JFP444TS-W40

20036OP3JFP444TS-W40 WEG 200HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 20036OP3JFP444TS-W40

Selected accessories will also be added to cart
$11,375.98 / Each
Quantity:
IC01 - ODP, IP23, 444TS/445TS Frame, 380VAC 60Hz 3 Phase, 14282970, High Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame444/5TS
Output200 HP (150 kW)
Number of Poles2
Frequency60 Hz
Rated speed3560 rpm
Slip1.11 %
Rated voltage380 V
Rated current274 A
L. R. Amperes1724 A
LRC6.3x(Code G)
No load current70.5 A
Rated torque295 ft.lb
Locked rotor torque140 %
Breakdown torque210 %
Locked rotor time48s (cold) 27s (hot)
Moment of inertia (J)21.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?1265 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.0  94.1  94.5

Power factor

50%75%100%
0.82  0.87  0.88

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
200HP
Frame
444TS
Frame
445TS
Application
Fire Pump
