/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/20036ET3E447TS-W22 WEG 200HP Severe Duty Electric Motor, 3600RPM

Product ID: 20036ET3E447TS-W22

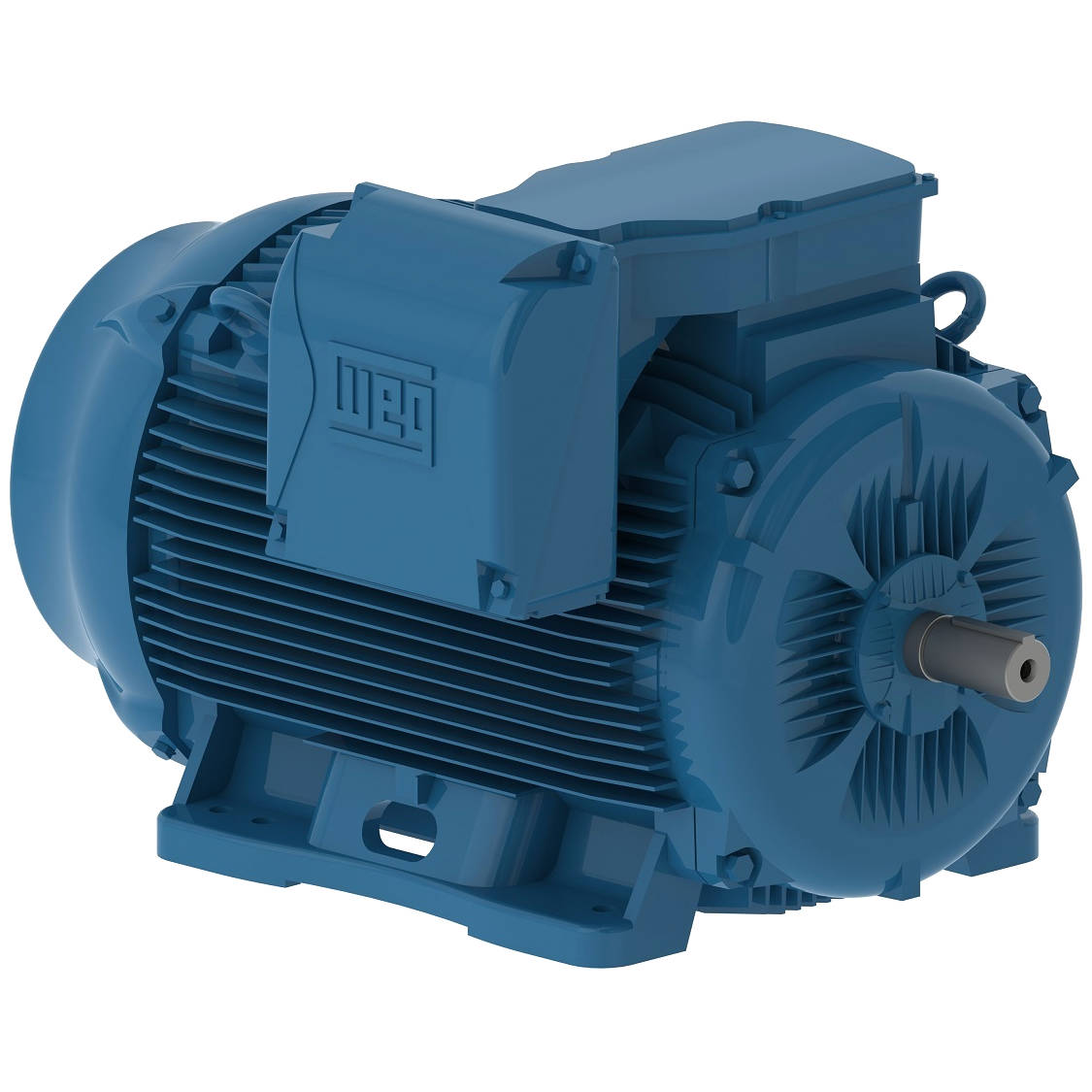

20036ET3E447TS-W22 WEG 200HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 20036ET3E447TS-W22

Selected accessories will also be added to cart

$20,970.18 / Each

Quantity:

IC411 - TEFC, IP55, 445TS/447TS Frame, 230/460/380VAC 50/60Hz 3 Phase, 11600529, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame	445/7TS
Output	200 HP (150 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3570 rpm
Slip	0.83 %
Rated voltage	230/460 V
Rated current	438/219 A
L. R. Amperes	2847/1424 A
LRC	6.5x(Code G)
No load current	90.0/45.0 A
Rated torque	294 ft.lb
Locked rotor torque	210 %
Breakdown torque	229 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	44.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	81.0 dB(A)
Approx. weight?	2067 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.4

Power factor

50%	75%	100%
0.86	0.89	0.90

Frame	445/7TS
Output	150 HP (110 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2975 rpm
Slip	0.83 %
Rated voltage	380 V
Rated current	193 A
L. R. Amperes	1312 A
LRC	6.8x(Code G)
No load current	44.0 A
Rated torque	265 ft.lb
Locked rotor torque	210 %
Breakdown torque	260 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	44.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	81.0 dB(A)
Approx. weight?	2067 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.2	95.2

Power factor

50%	75%	100%
0.85	0.90	0.91

Frame	445/7TS
Output	150 HP (110 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2980 rpm
Slip	0.67 %
Rated voltage	400 V
Rated current	183 A
L. R. Amperes	1391 A
LRC	7.6x(Code H)
No load current	47.0 A
Rated torque	264 ft.lb
Locked rotor torque	220 %
Breakdown torque	290 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	44.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	81.0 dB(A)
Approx. weight?	2067 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.3	95.3

Power factor

50%	75%	100%
0.83	0.89	0.91

Frame	445/7TS
Output	150 HP (110 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2980 rpm
Slip	0.67 %
Rated voltage	415 V
Rated current	178 A
L. R. Amperes	1477 A
LRC	8.3x(Code H)
No load current	49.3 A
Rated torque	264 ft.lb
Locked rotor torque	229 %
Breakdown torque	320 %
Locked rotor time	43s (cold) 24s (hot)

Moment of inertia (J)	44.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	81.0 dB(A)
Approx. weight?	2067 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.3	95.3

Power factor

50%	75%	100%
0.82	0.88	0.90

Frame	445/7TS
Output	200 HP (150 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	268 A
L. R. Amperes	1447 A
LRC	5.4x(Code E)
No load current	42.0 A
Rated torque	355 ft.lb
Locked rotor torque	160 %
Breakdown torque	190 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	44.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	81.0 dB(A)
Approx. weight?	2067 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.0	94.5

Power factor

50%	75%	100%
0.88	0.90	0.90

Frame	445/7TS
Output	200 HP (150 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	400 V
Rated current	253 A
L. R. Amperes	1543 A
LRC	6.1x(Code F)
No load current	45.0 A
Rated torque	354 ft.lb
Locked rotor torque	180 %
Breakdown torque	220 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	44.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	81.0 dB(A)
Approx. weight?	2067 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.0	95.0

Power factor

50%	75%	100%
0.87	0.89	0.90

Frame	445/7TS
Output	200 HP (150 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2970 rpm
Slip	1.00 %
Rated voltage	415 V
Rated current	244 A
L. R. Amperes	1635 A
LRC	6.7x(Code G)
No load current	47.0 A
Rated torque	354 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	44.7 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	81.0 dB(A)
Approx. weight?	2067 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.0	95.4	95.0

Power factor

50%	75%	100%
0.86	0.89	0.90

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xNPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
