/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/20036ET3G504S-W22 WEG 200HP Severe Duty Electric Motor, 3600RPM

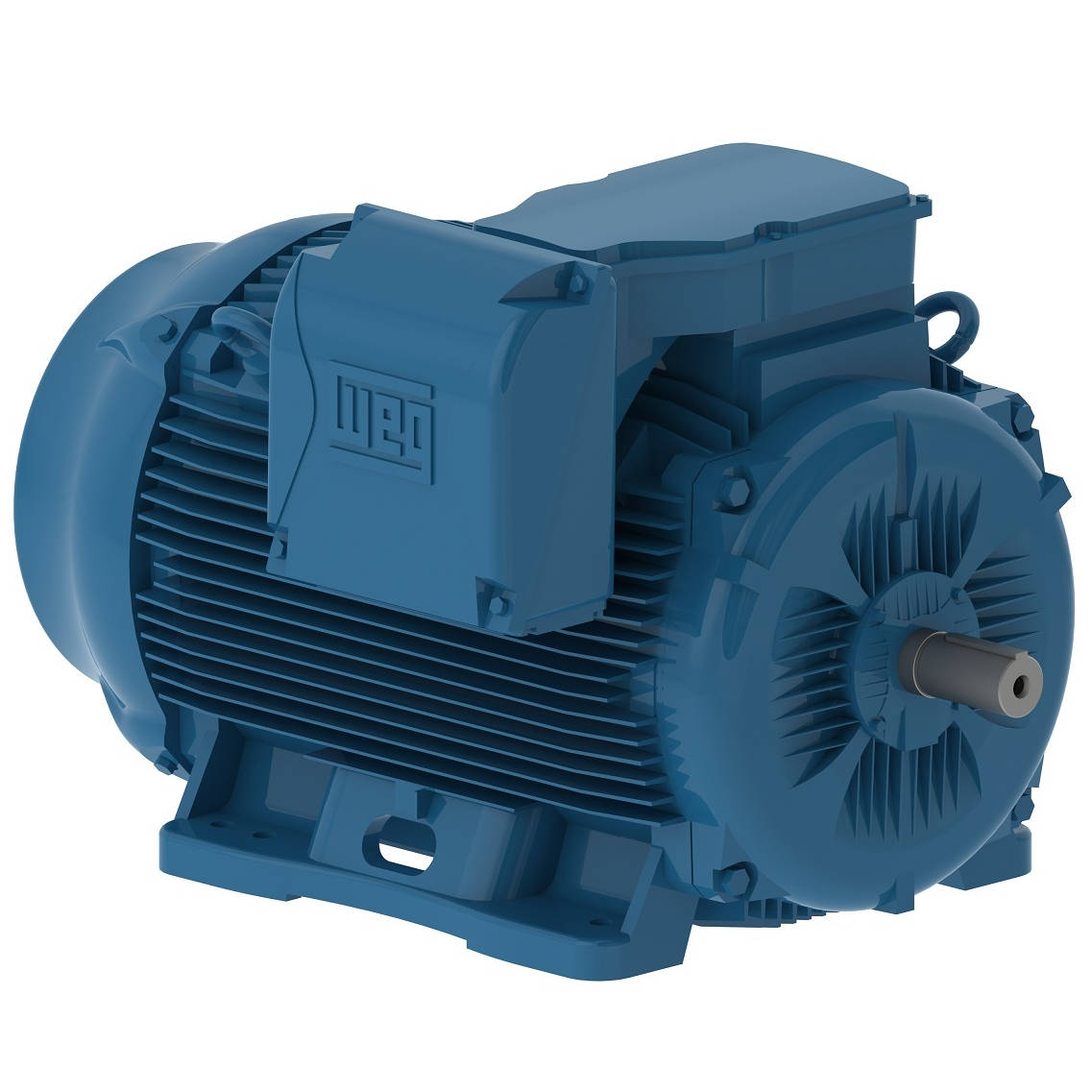

20036ET3G504S-W22 WEG 200HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 20036ET3G504S-W22

20036ET3G504S-W22 WEG 200HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 20036ET3G504S-W22

Selected accessories will also be added to cart
$20,970.18 / Each
Quantity:
IC411 - TEFC, IP55, 504TS/505TS Frame, 460VAC 60Hz 3 Phase, 13572086, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame504/5TS
Output200 HP (150 kW)
Number of Poles2
Frequency60 Hz
Rated speed3575 rpm
Slip0.69 %
Rated voltage460 V
Rated current222 A
L. R. Amperes1510 A
LRC6.8x(Code G)
No load current50.0 A
Rated torque294 ft.lb
Locked rotor torque200 %
Breakdown torque260 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)44.7 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.1  95.0  95.4

Power factor

50%75%100%
0.81  0.87  0.89
Frame504/5TS
Output150 HP (110 kW)
Number of Poles2
Frequency50 Hz
Rated speed2979 rpm
Slip0.70 %
Rated voltage380 V
Rated current195 A
L. R. Amperes1424 A
LRC7.3x(Code G)
No load current50.0 A
Rated torque264 ft.lb
Locked rotor torque210 %
Breakdown torque290 %
Locked rotor time90s (cold) 50s (hot)
Moment of inertia (J)44.7 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.1  95.2  95.2

Power factor

50%75%100%
0.82  0.88  0.90
Frame504/5TS
Output150 HP (110 kW)
Number of Poles2
Frequency50 Hz
Rated speed2981 rpm
Slip0.63 %
Rated voltage400 V
Rated current187 A
L. R. Amperes1515 A
LRC8.1x(Code H)
No load current55.0 A
Rated torque264 ft.lb
Locked rotor torque229 %
Breakdown torque330 %
Locked rotor time81s (cold) 45s (hot)
Moment of inertia (J)44.7 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.0  95.2  95.3

Power factor

50%75%100%
0.79  0.86  0.89
Frame504/5TS
Output150 HP (110 kW)
Number of Poles2
Frequency50 Hz
Rated speed2983 rpm
Slip0.57 %
Rated voltage415 V
Rated current182 A
L. R. Amperes1565 A
LRC8.6x(Code J)
No load current60.0 A
Rated torque264 ft.lb
Locked rotor torque250 %
Breakdown torque350 %
Locked rotor time77s (cold) 43s (hot)
Moment of inertia (J)44.7 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.9  95.2  95.3

Power factor

50%75%100%
0.77  0.85  0.88
Frame504/5TS
Output200 HP (150 kW)
Number of Poles2
Frequency50 Hz
Rated speed2965 rpm
Slip1.17 %
Rated voltage380 V
Rated current267 A
L. R. Amperes1442 A
LRC5.4x(Code E)
No load current50.0 A
Rated torque354 ft.lb
Locked rotor torque160 %
Breakdown torque210 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)44.7 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.4  95.0

Power factor

50%75%100%
0.85  0.89  0.90
Frame504/5TS
Output200 HP (150 kW)
Number of Poles2
Frequency50 Hz
Rated speed2970 rpm
Slip1.00 %
Rated voltage400 V
Rated current256 A
L. R. Amperes1536 A
LRC6.0x(Code F)
No load current55.0 A
Rated torque354 ft.lb
Locked rotor torque170 %
Breakdown torque229 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)44.7 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.4  95.0

Power factor

50%75%100%
0.82  0.88  0.89
Frame504/5TS
Output200 HP (150 kW)
Number of Poles2
Frequency50 Hz
Rated speed2975 rpm
Slip0.83 %
Rated voltage415 V
Rated current249 A
L. R. Amperes1619 A
LRC6.5x(Code G)
No load current60.0 A
Rated torque353 ft.lb
Locked rotor torque190 %
Breakdown torque250 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)44.7 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?77.0 dB(A)
Approx. weight?2292 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  95.0  95.4

Power factor

50%75%100%
0.79  0.86  0.88

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C3)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Fan materialPlastic
Screw capCARBON STEEL SAE 1010/20
NDE bearing SealWSeal
DE bearing SealWSeal
Cable Press MaterialSem
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Horsepower
200HP
Input Voltage
460VAC
Frame
504TS/505TS
