/Products/Power Tools/Milwaukee Power Tools/Milwaukee Tool Test Equipment/2236-20 Milwaukee Clamp Meter HVAC/R
Click Image to Expand

Product ID: 2236-20

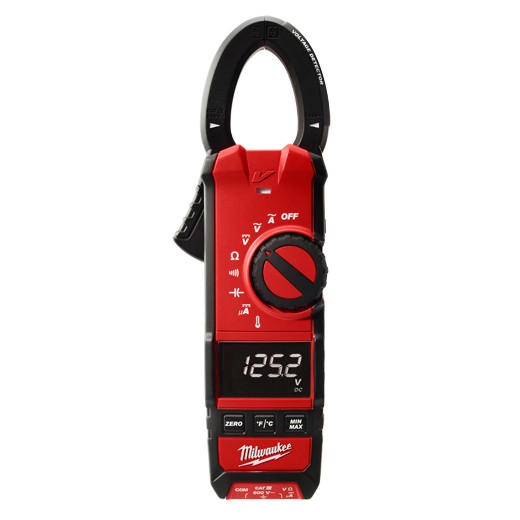

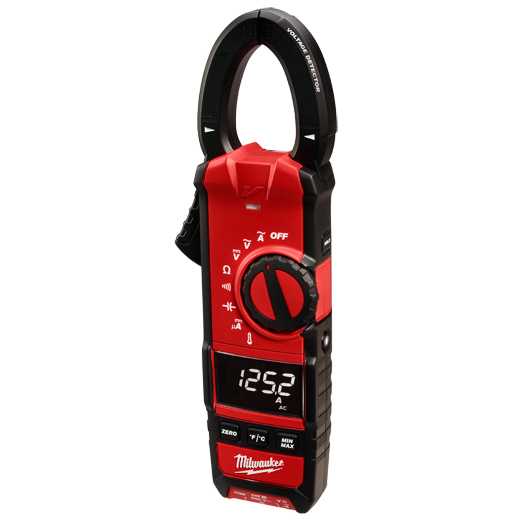

2236-20 Milwaukee Clamp Meter HVAC/R

MFG: Milwaukee Tool
MFG Part Number: 2236-20

Temporarily out of stock
Selected accessories will also be added to cart
$149.00 / Each

Includes

(1)Clamp Meter for HVAC/R(2236-20)
(1)Dual Banana Thermocouple
(1)Electrical Test Lead Set
(2)AA Batteries
(1)Manual

Product Features

  • Measures up to 600 amps AC, Large 1.30? jaw opening
  • Thin Jaw Profile for easier wire measurement in panels or in bundles
  • Wide Voltage range to 600 AC/DC volts
  • True-RMS for accurate measurement in all applications
  • Built-In Voltage Detector and LED Work Light
  • Thermocouple (dual banana) input for contact temperature measurement
  • 600 uA DC for Flame Rectification
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip

Product Specifications

TRMSYes
Jaw Size1.3"
Safety RatingCAT III 600V
Current AC600A
Microamps DC600?A
Voltage AC/DC600V
Resistance6 kO
ContinuityYes
CapacitanceYes
Contact Temperature-40? F to 752? F (-40? C to 400? C)
HoldYes
Display BacklightYes
Display TypeHigh Contrast White on Black
Non-Contact VoltageYes
LED Work LightYes
Rugged Over-moldingYes
Tool Warranty5 Years
TempYes
Dual Banana Thermocouple InputYes
IndicationVisual (for NCVD)
Switch TypeDial
Battery TypeAlkaline (AA)
Length9 1/2"
