25036ET3G449TS-W22 WEG 250HP Severe Duty Electric Motor, 3600RPM

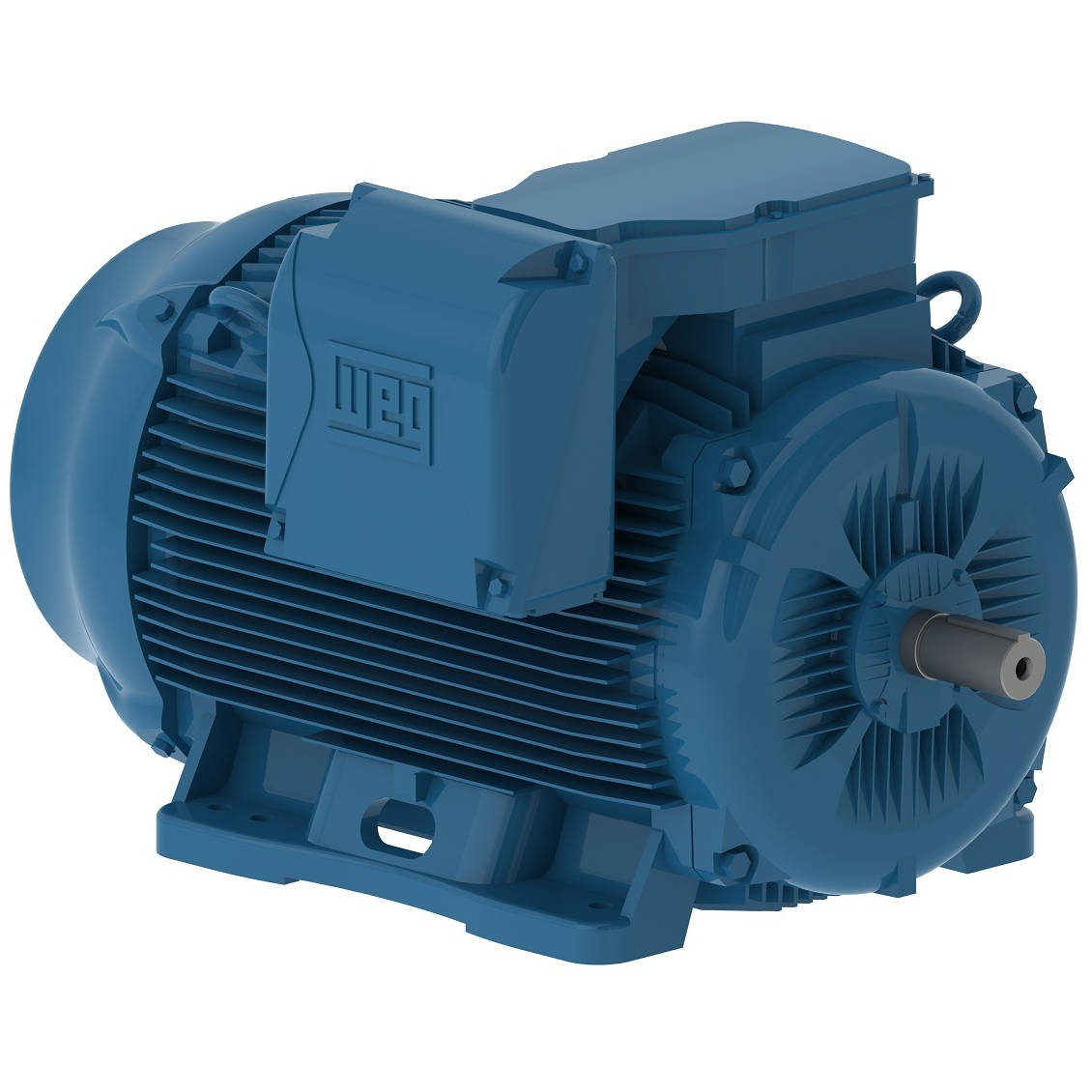

Enlarge Photo

Product ID: 25036ET3G449TS-W22

25036ET3G449TS-W22 WEG 250HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 25036ET3G449TS-W22

Selected accessories will also be added to cart
$29,523.97 / Each
Quantity:
IC411 - TEFC, IP55, 447TS/449TS Frame, 460VAC 60Hz 3 Phase, 11380894, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame447/9TS
Output250 HP (185 kW)
Number of Poles2
Frequency60 Hz
Rated speed3573 rpm
Slip0.75 %
Rated voltage460 V
Rated current269 A
L. R. Amperes1802 A
LRC6.7x(Code G)
No load current62.0 A
Rated torque367 ft.lb
Locked rotor torque200 %
Breakdown torque240 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)50.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?2520 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.84  0.89  0.90
Frame447/9TS
Output200 HP (150 kW)
Number of Poles2
Frequency50 Hz
Rated speed2973 rpm
Slip0.90 %
Rated voltage380 V
Rated current265 A
L. R. Amperes1511 A
LRC5.7x(Code E)
No load current60.0 A
Rated torque353 ft.lb
Locked rotor torque190 %
Breakdown torque240 %
Locked rotor time48s (cold) 27s (hot)
Moment of inertia (J)50.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?2520 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.0  95.6  95.6

Power factor

50%75%100%
0.84  0.89  0.90
Frame447/9TS
Output200 HP (150 kW)
Number of Poles2
Frequency50 Hz
Rated speed2977 rpm
Slip0.77 %
Rated voltage400 V
Rated current252 A
L. R. Amperes1638 A
LRC6.5x(Code G)
No load current65.0 A
Rated torque353 ft.lb
Locked rotor torque210 %
Breakdown torque270 %
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)50.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?2520 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.1  95.6  95.6

Power factor

50%75%100%
0.82  0.88  0.90
Frame447/9TS
Output200 HP (150 kW)
Number of Poles2
Frequency50 Hz
Rated speed2979 rpm
Slip0.70 %
Rated voltage415 V
Rated current245 A
L. R. Amperes1740 A
LRC7.1x(Code G)
No load current70.0 A
Rated torque353 ft.lb
Locked rotor torque220 %
Breakdown torque300 %
Locked rotor time41s (cold) 23s (hot)
Moment of inertia (J)50.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?2520 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.1  95.6  95.6

Power factor

50%75%100%
0.80  0.87  0.89
Frame447/9TS
Output250 HP (185 kW)
Number of Poles2
Frequency50 Hz
Rated speed2962 rpm
Slip1.27 %
Rated voltage380 V
Rated current330 A
L. R. Amperes1749 A
LRC5.3x(Code E)
No load current61.0 A
Rated torque443 ft.lb
Locked rotor torque150 %
Breakdown torque190 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)50.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?2520 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.0  94.5

Power factor

50%75%100%
0.87  0.90  0.90
Frame447/9TS
Output250 HP (185 kW)
Number of Poles2
Frequency50 Hz
Rated speed2967 rpm
Slip1.10 %
Rated voltage400 V
Rated current312 A
L. R. Amperes1810 A
LRC5.8x(Code F)
No load current65.0 A
Rated torque442 ft.lb
Locked rotor torque160 %
Breakdown torque220 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)50.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?2520 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.4  95.0

Power factor

50%75%100%
0.85  0.89  0.90
Frame447/9TS
Output250 HP (185 kW)
Number of Poles2
Frequency50 Hz
Rated speed2970 rpm
Slip1.00 %
Rated voltage415 V
Rated current300 A
L. R. Amperes1920 A
LRC6.4x(Code F)
No load current70.0 A
Rated torque442 ft.lb
Locked rotor torque180 %
Breakdown torque229 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)50.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?2520 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.4

Power factor

50%75%100%
0.84  0.89  0.90

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Horsepower
250HP
Input Voltage
460VAC
Frame
447TS/449TS
