25036OP3GFP445TS-W40 WEG 250HP Fire Pump Electric Motor, 3600RPM

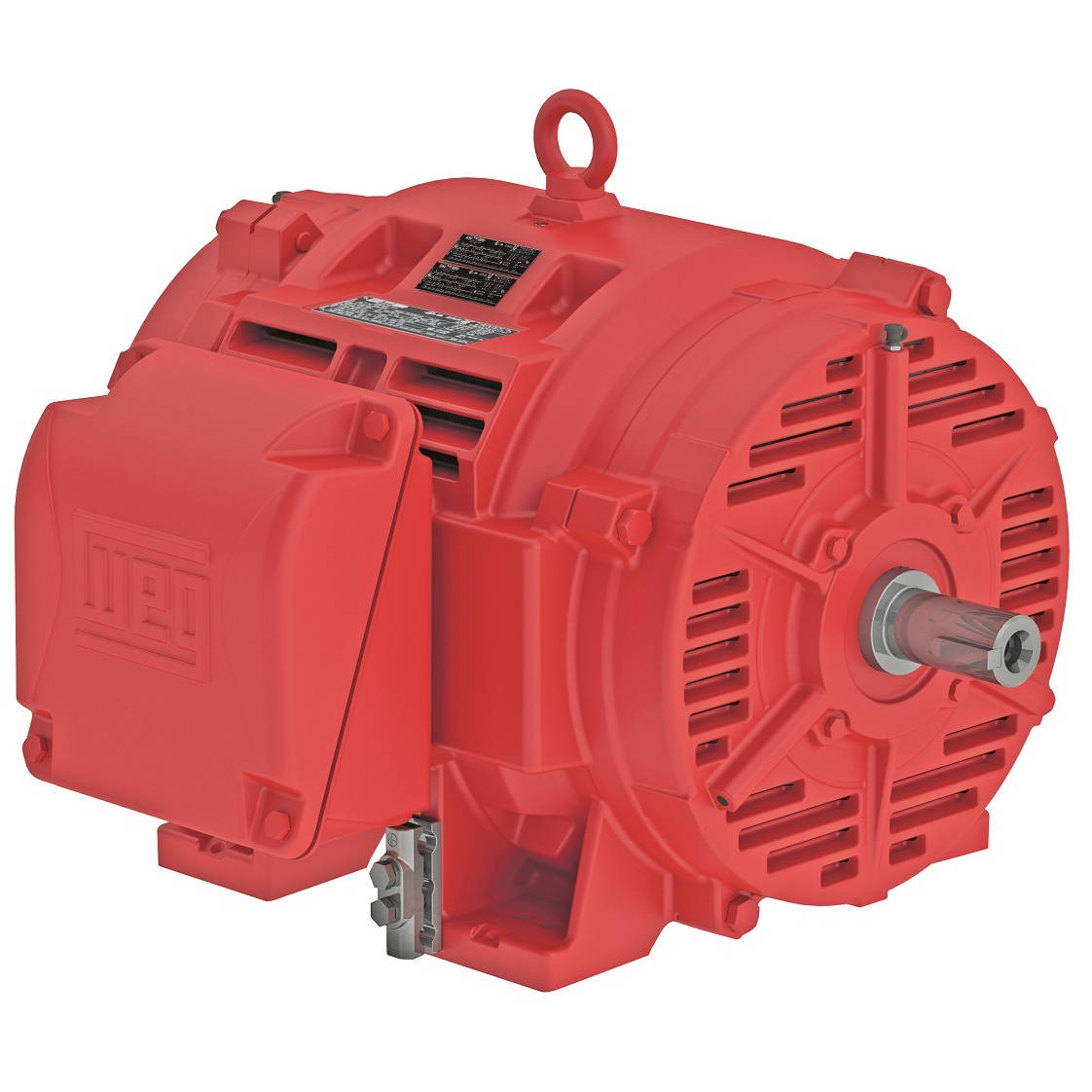

Enlarge Photo

Product ID: 25036OP3GFP445TS-W40

25036OP3GFP445TS-W40 WEG 250HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 25036OP3GFP445TS-W40

Selected accessories will also be added to cart
$13,932.06 / Each
Quantity:
IC01 - ODP, IP23, 444TS/445TS Frame, 380/460VAC 50/60Hz 3 Phase, 14282974, High Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame444/5TS
Output250 HP (185 kW)
Number of Poles2
Frequency60 Hz
Rated speed3570 rpm
Slip0.83 %
Rated voltage460 V
Rated current282 A
L. R. Amperes1805 A
LRC6.4x(Code G)
No load current85.0 A
Rated torque368 ft.lb
Locked rotor torque130 %
Breakdown torque220 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)23.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?1325 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.6  94.5  94.5

Power factor

50%75%100%
0.77  0.84  0.87
Frame444/5TS
Output250 HP (185 kW)
Number of Poles2
Frequency50 Hz
Rated speed2960 rpm
Slip1.33 %
Rated voltage380 V
Rated current342 A
L. R. Amperes1813 A
LRC5.3x(Code E)
No load current85.0 A
Rated torque444 ft.lb
Locked rotor torque130 %
Breakdown torque200 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)23.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?1325 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.6  94.1  94.5

Power factor

50%75%100%
0.81  0.85  0.87
Frame444/5TS
Output250 HP (185 kW)
Number of Poles2
Frequency50 Hz
Rated speed2965 rpm
Slip1.17 %
Rated voltage400 V
Rated current329 A
L. R. Amperes1974 A
LRC6.0x(Code F)
No load current98.0 A
Rated torque443 ft.lb
Locked rotor torque150 %
Breakdown torque210 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)23.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?1325 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.6  94.5  94.5

Power factor

50%75%100%
0.70  0.84  0.86
Frame444/5TS
Output250 HP (185 kW)
Number of Poles2
Frequency50 Hz
Rated speed2965 rpm
Slip1.17 %
Rated voltage415 V
Rated current320 A
L. R. Amperes2048 A
LRC6.4x(Code G)
No load current112 A
Rated torque443 ft.lb
Locked rotor torque150 %
Breakdown torque220 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)23.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?1325 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.6  94.5  94.5

Power factor

50%75%100%
0.73  0.81  0.85

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
250HP
Frame
444TS
Frame
445TS
Application
Fire Pump
