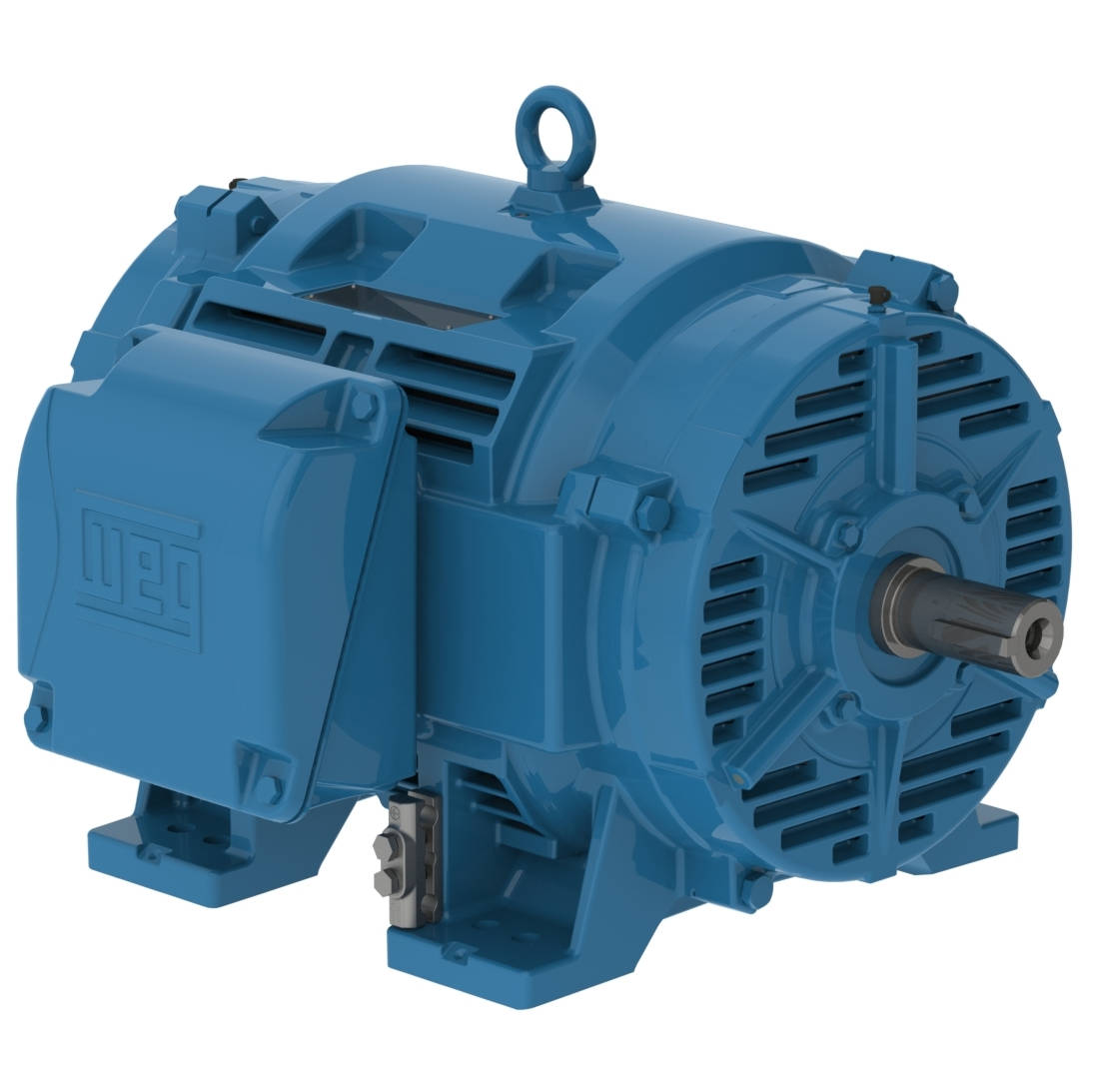

25036OT3G445TS-RFVFD WEG 250HP Refrigeration Electric Motor, 3600RPM
Enlarge Photo

Product ID: 25036OT3G445TS-RFVFD

25036OT3G445TS-RFVFD WEG 250HP Refrigeration Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 25036OT3G445TS-RFVFD

Selected accessories will also be added to cart
$21,133.05 / Each
Quantity:
IC01 - ODP, IP23, 444TS/445TS Frame, 460/380VAC 50/60Hz 3 Phase, 16065108, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame444/5TS
Output250 HP (185 kW)
Number of Poles2
Frequency60 Hz
Rated speed3571 rpm
Slip0.81 %
Rated voltage460 V
Rated current284 A
L. R. Amperes2414 A
LRC8.5x(Code J)
No load current86.0 A
Rated torque368 ft.lb
Locked rotor torque240 %
Breakdown torque290 %
Locked rotor time41s (cold) 23s (hot)
Moment of inertia (J)28.6 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodVFD
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?87.0 dB(A)
Approx. weight?1394 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  94.8  95.0

Power factor

50%75%100%
0.75  0.83  0.86

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Space Heater Voltage110-127/200-240 V
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
250HP
Frame
444TS
Frame
445TS
Application
Refrigeration
