.2518ES1BW56CFL-S WEG 1/4HP Electric Motor, 1800RPM

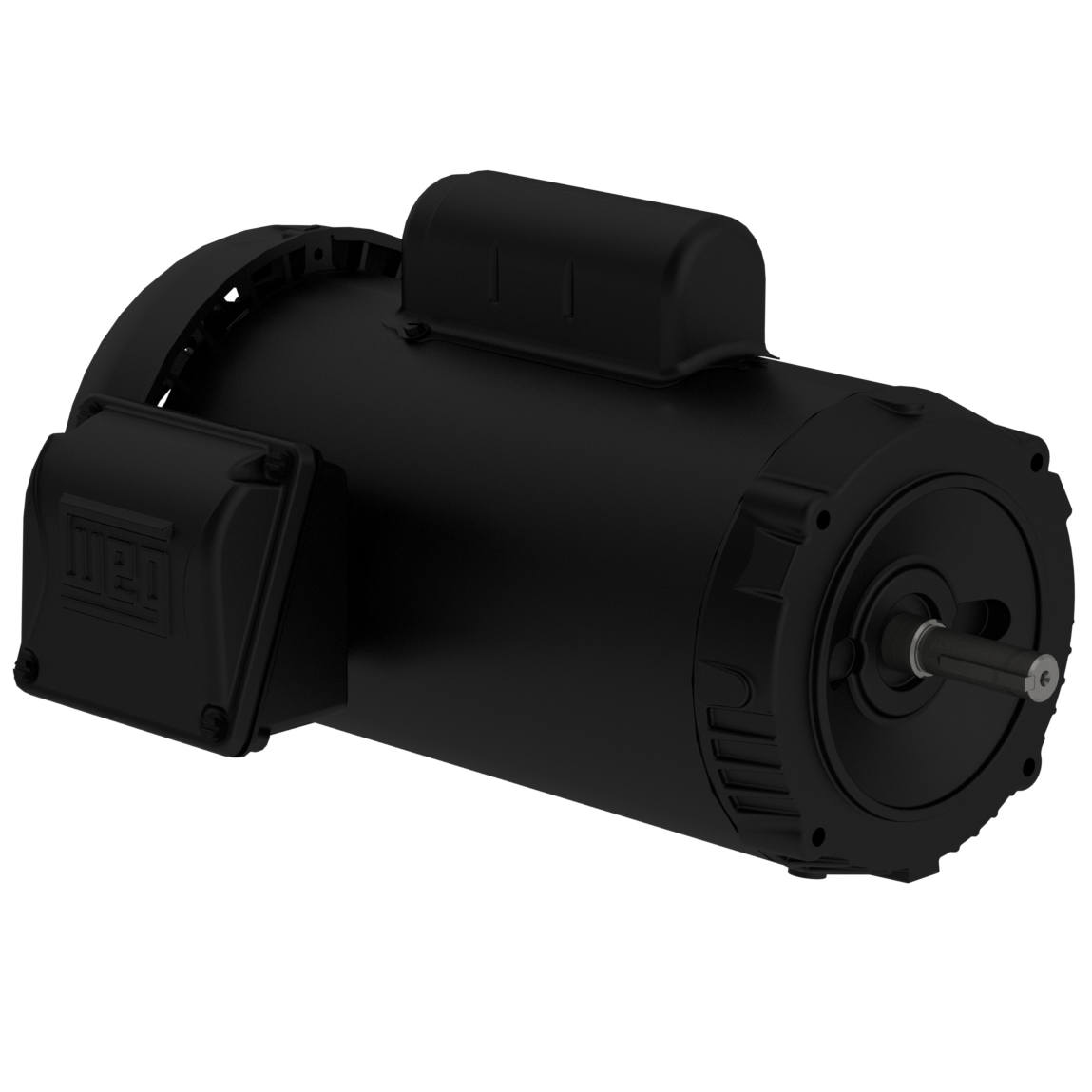

Enlarge Photo

Product ID: .2518ES1BW56CFL-S

.2518ES1BW56CFL-S WEG 1/4HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .2518ES1BW56CFL-S

Selected accessories will also be added to cart
$256.32 / Each
Quantity:
IC411 - TEFC, IP55, W56C Frame, 115/208-230VAC 60Hz Single Phase, 13823769, Rolled Steel, Footless, C-Face, 5/8" Keyed Shaft

Electric Motors

FrameW56C
Output0.25 HP (0.18 kW)
Number of Poles4
Frequency60 Hz
Rated speed1735 rpm
Slip3.61 %
Rated voltage115/208-230 V
Rated current4.60/2.54-2.30 A
L. R. Amperes24.4/13.5-12.2 A
LRC5.3x(Code N)
No load current4.00/1.72-2.00 A
Rated torque0.757 ft.lb
Locked rotor torque310 %
Breakdown torque280 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)0.0318 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²52.0 dB(A)
Approx. weight³15.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
43.052.057.0

Power factor

50%75%100%
0.430.520.60

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialIndustrial polymer
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodNot Balanced
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
1/4HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
W56C
