Product ID: .2518ES3E56C-S

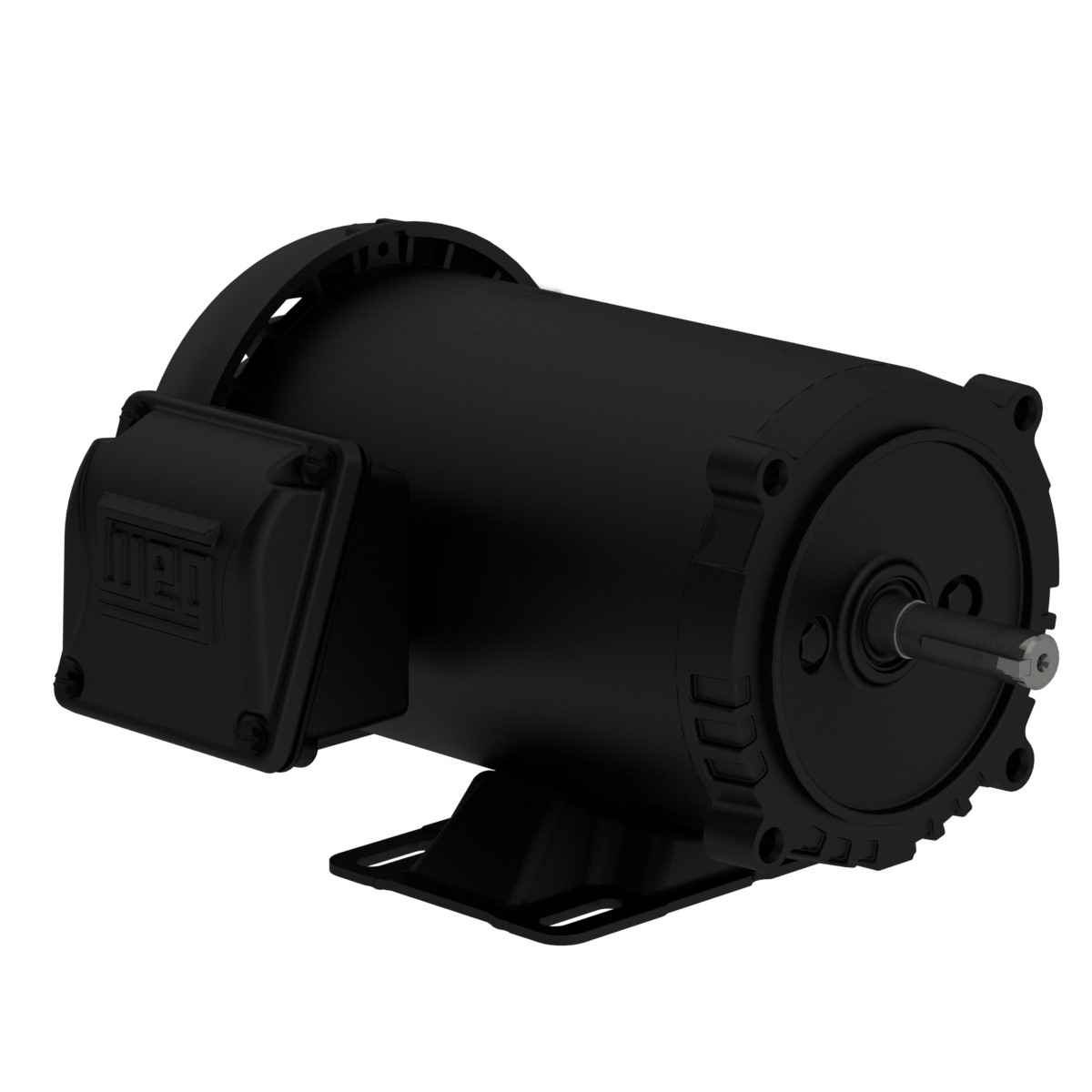

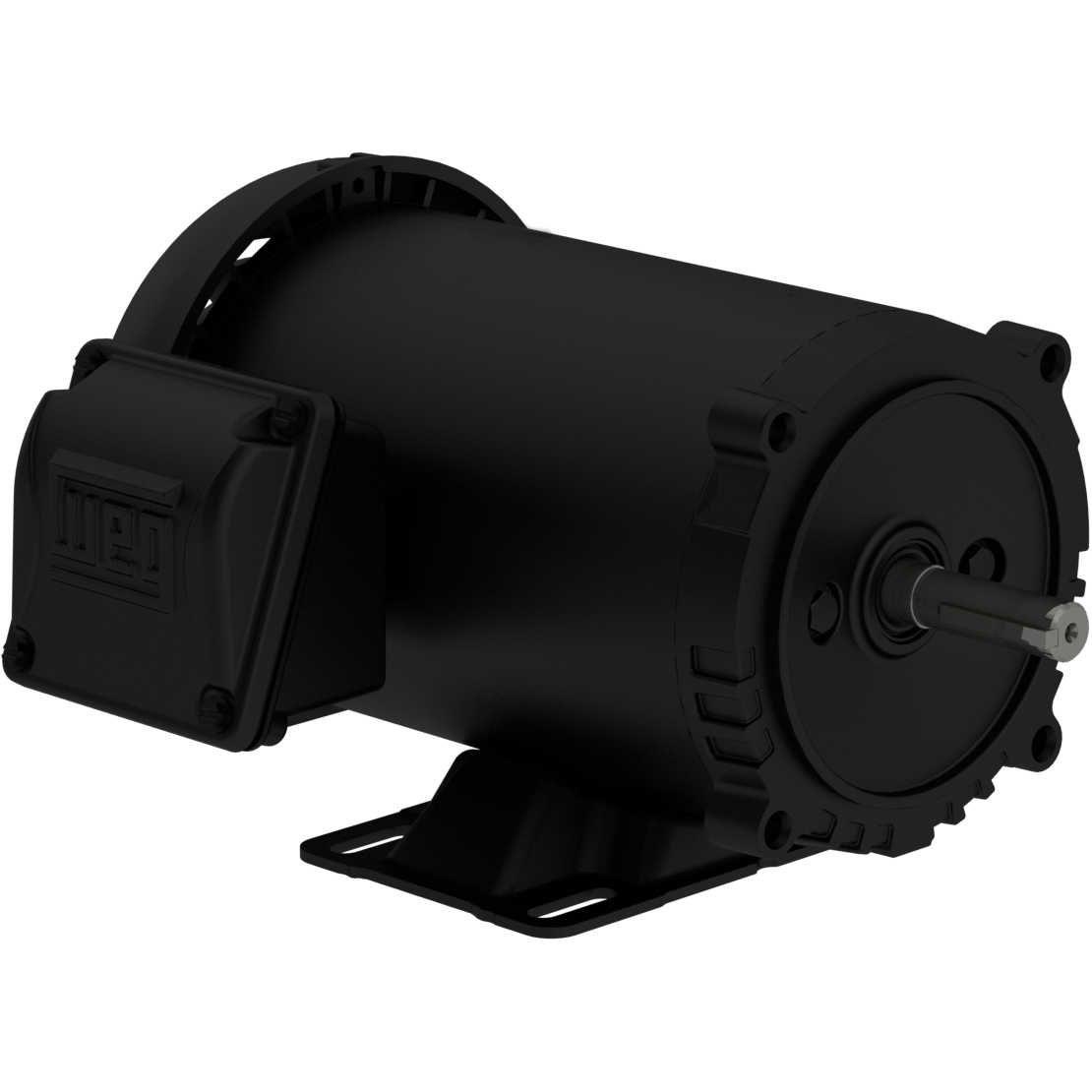

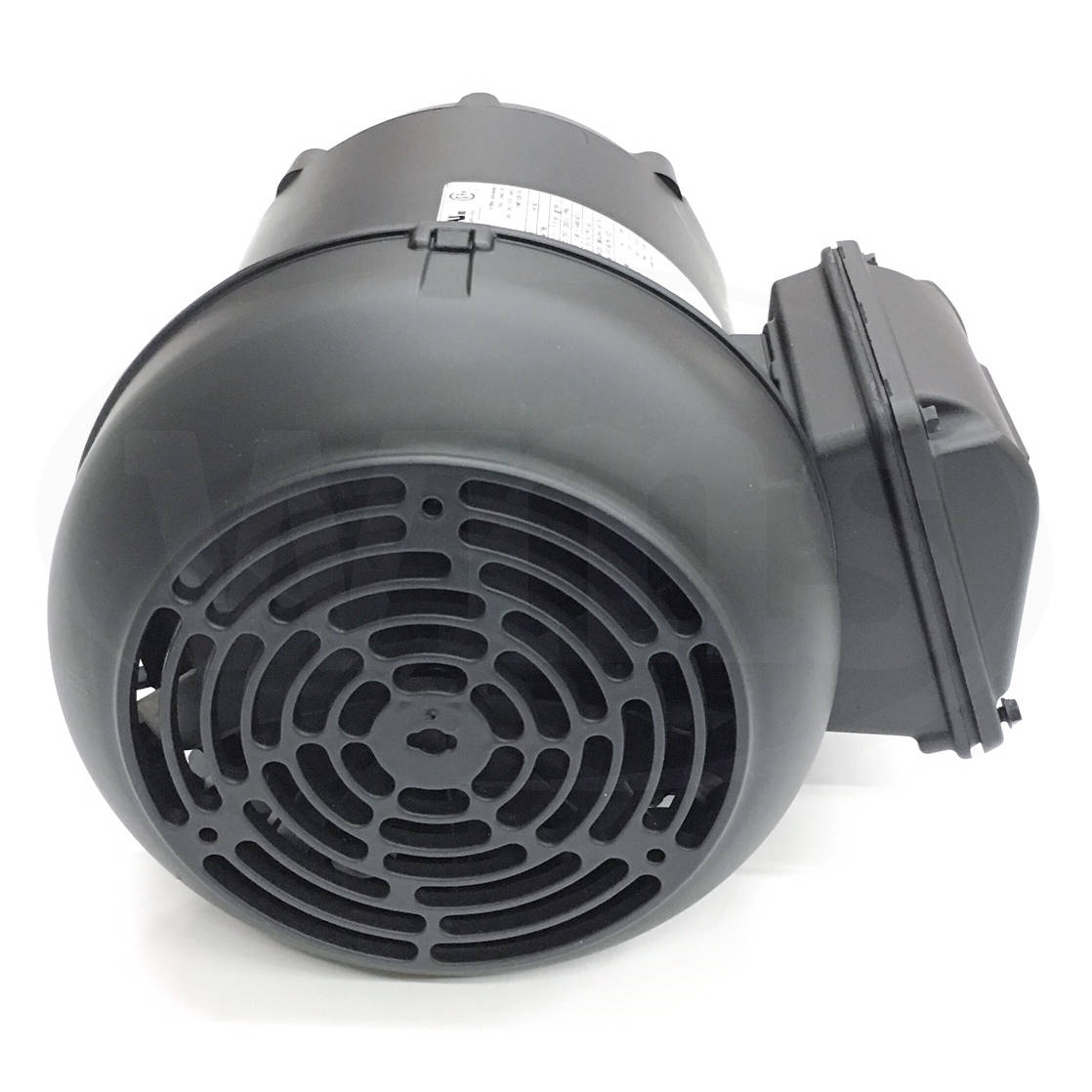

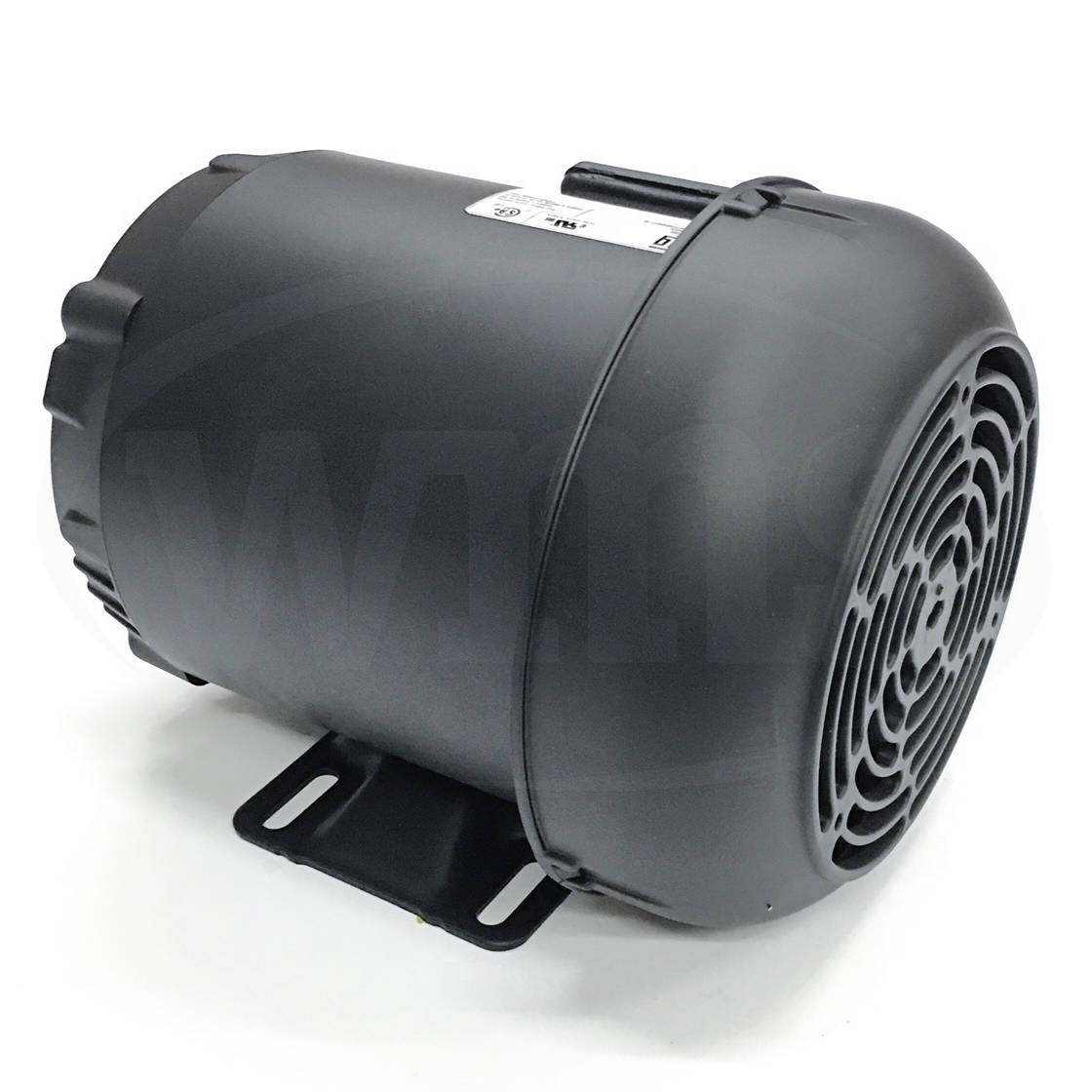

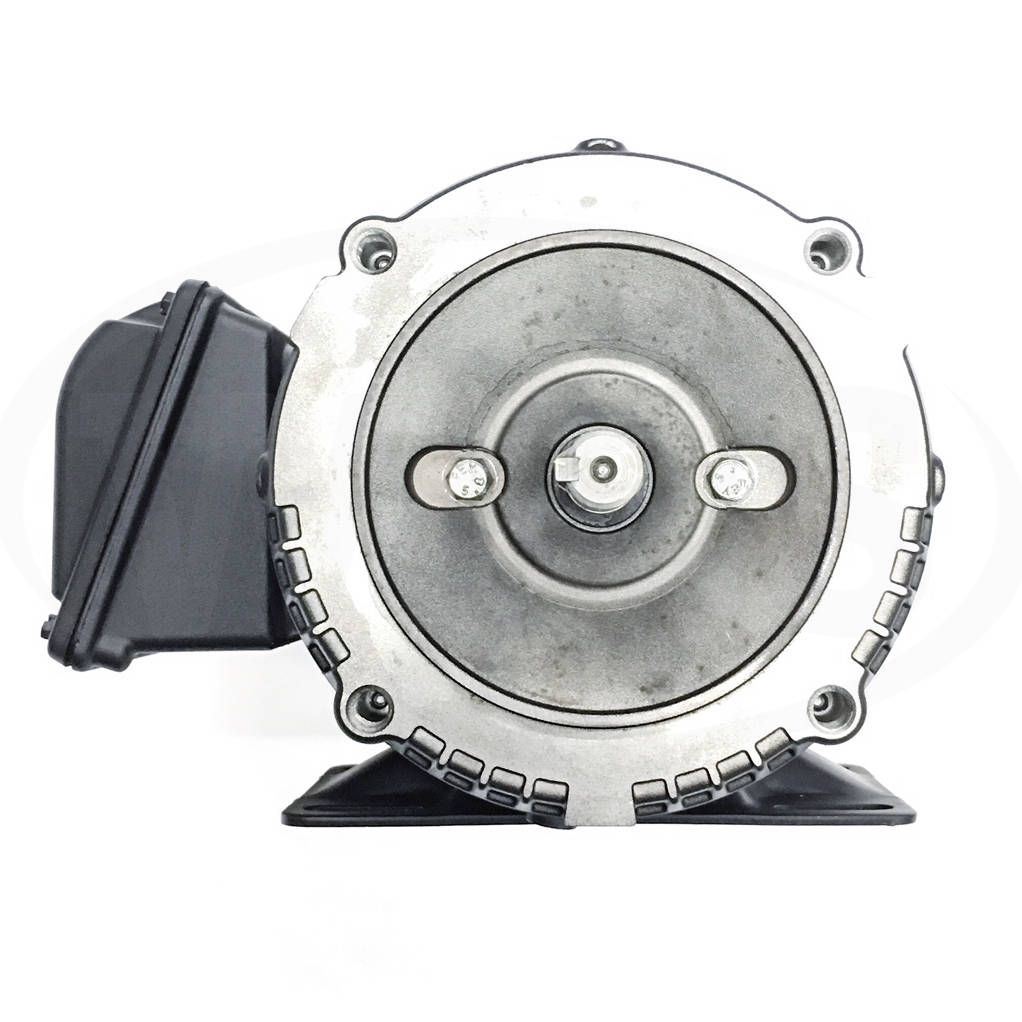

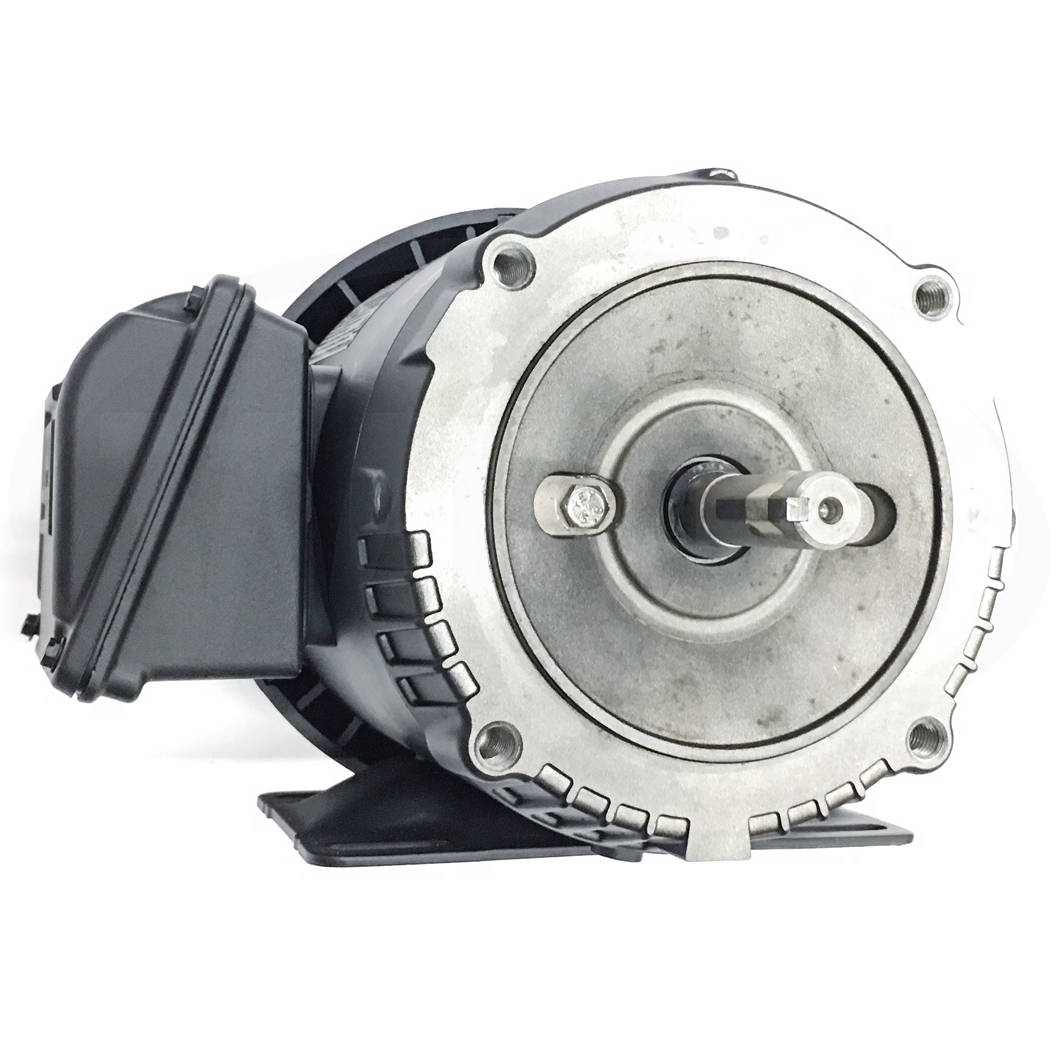

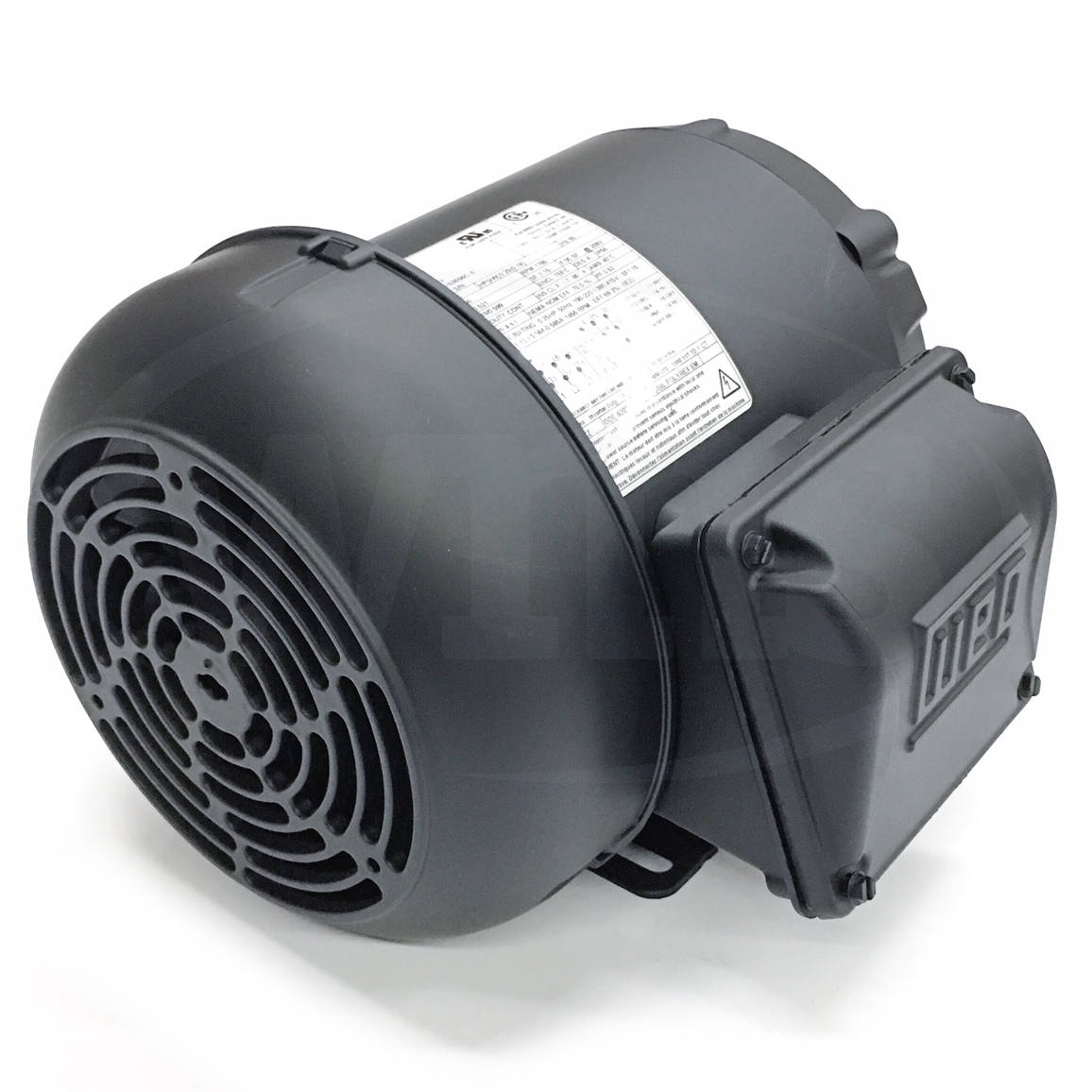

.2518ES3E56C-S WEG 1/4HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .2518ES3E56C-S

Selected accessories will also be added to cart

$240.30 / Each

Quantity:

IC411 - TEFC, IP55, 56C Frame, 208-230/460VAC 60Hz 190-220/380-415VAC 50Hz 3 Phase, 14796862, Standard Efficiency, Foot Mounted, C-Face, Rolled Steel, 5/8" Keyed Shaft

Features
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
Painting

Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout

Electric Motors
Frame56C
Output0.25 HP (0.18 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage208-230/460 V
Rated current1.15-1.04/0.521 A
L. R. Amperes7.26-6.56/3.28 A
LRC6.3x(Code M)
No load current0.776-0.900/0.450 A
Rated torque0.734 ft.lb
Locked rotor torque240 %
Breakdown torque300 %
Locked rotor time68s (cold) 38s (hot)
Moment of inertia (J)0.0453 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise Level?52.0 dB(A)
Approx. weight?18.7 lb
