/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, ODP/Resilient Base/.2518OS1BRBFBW56-S WEG 1/4HP Fan & Exhaust Electric Motor, 1800RPM

Product ID: .2518OS1BRBFBW56-S

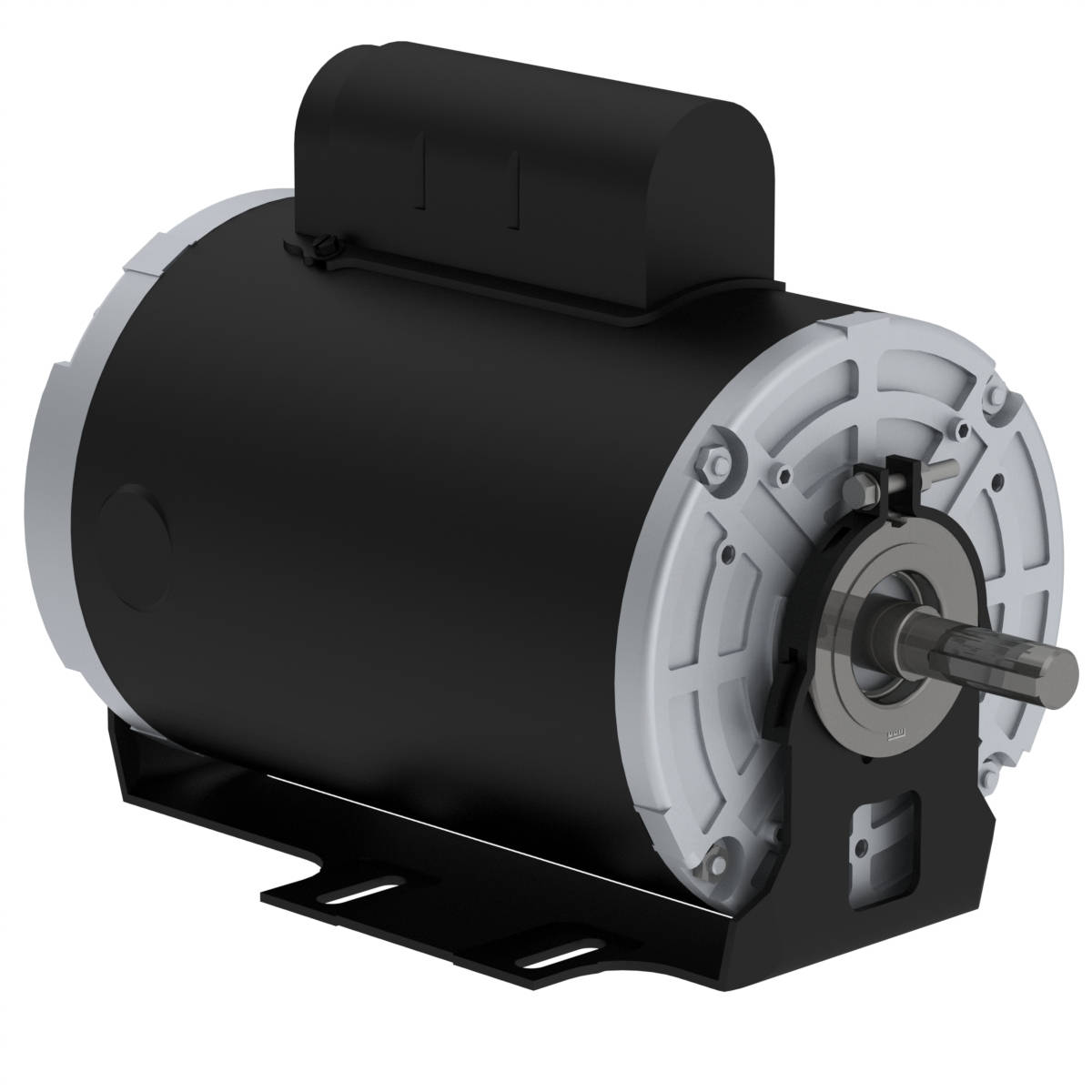

.2518OS1BRBFBW56-S WEG 1/4HP Fan & Exhaust Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .2518OS1BRBFBW56-S

Selected accessories will also be added to cart

$241.19 / Each

Quantity:

IC01 - ODP, W56 Frame, 115/208-230VAC 60Hz Single Phase, 14588211, Rolled Steel, Foot Mounted

Electric Motors

Frame	W56
Output	0.25 HP (0.18 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1735 rpm
Slip	3.61 %
Rated voltage	115/208-230 V
Rated current	4.66/2.58-2.33 A
L. R. Amperes	24.7/13.7-12.3 A
LRC	5.3x(Code N)
No load current	4.00/1.72-2.00 A
Rated torque	0.757 ft.lb
Locked rotor torque	310 %
Breakdown torque	280 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.0318 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.35 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +50Â°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	50.0 dB(A)
Approx. weightÂ³	18.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
46.0	54.0	57.0

Power factor

50%	75%	100%
0.41	0.51	0.59

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	With
Overload protector (phenolic)	Without overload protector

6203ZZC3 Koyo Ball Bearing, Shielded

6203ZZC3 Koyo Ball Bearing, Shielded

6203-ZZC3, 17mm x 40mm x 12mm
Available Stock: 15

MFG: JTEKT Corporation

6203-ZZC3

$6.00 / Each

Type

Electric Motor

Input Phase

Single Phase

Speed

1800RPM

Enclosure

ODP

Horsepower

1/4HP

Input Voltage

230VAC

Input Voltage

208VAC

Input Voltage

115VAC

Frame

W56
