.2518OS1BSPRBO48Z-S WEG 1/4HP Fan & Exhaust Electric Motor, 1800RPM

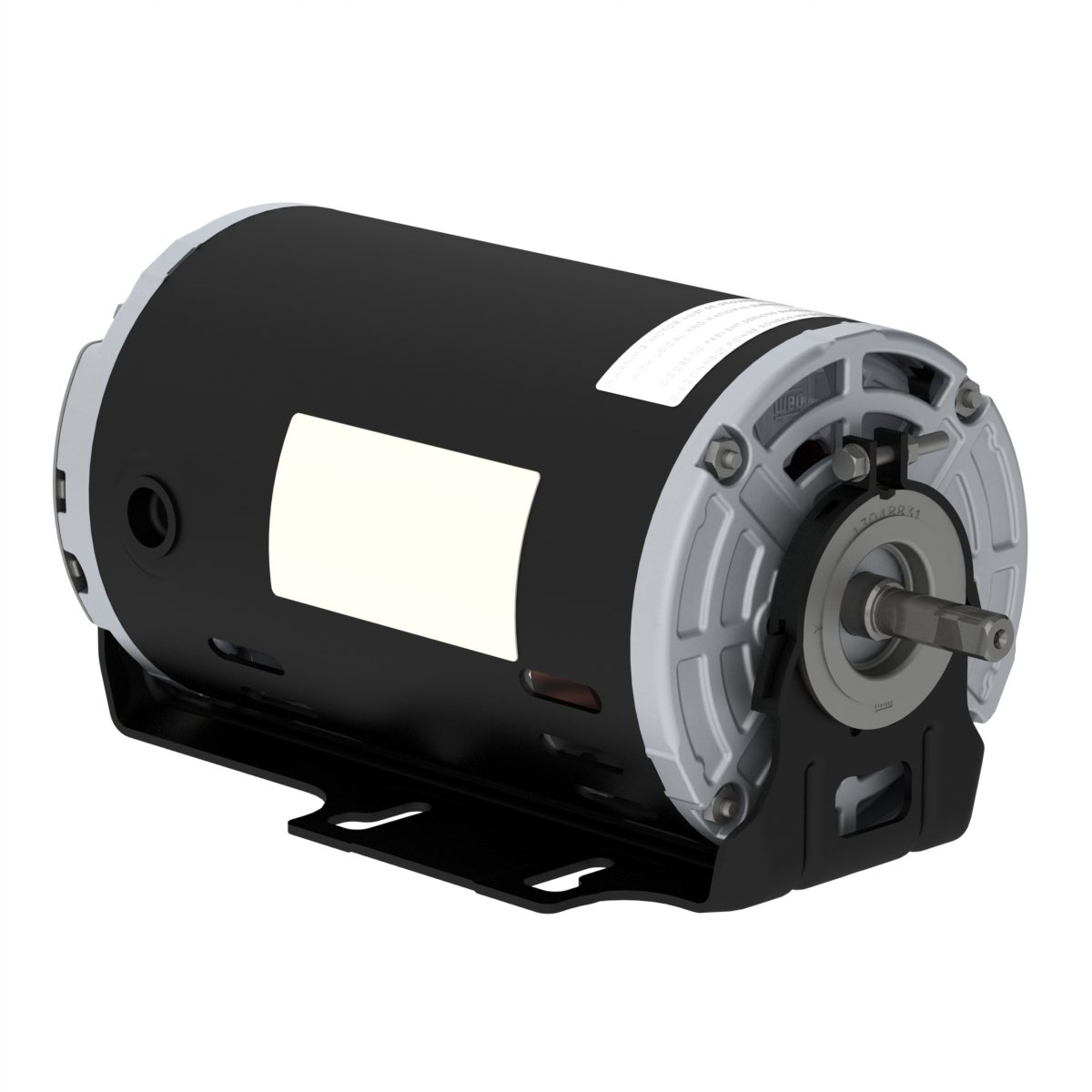

Enlarge Photo

Product ID: .2518OS1BSPRBO48Z-S

.2518OS1BSPRBO48Z-S WEG 1/4HP Fan & Exhaust Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .2518OS1BSPRBO48Z-S

Selected accessories will also be added to cart
$243.86 / Each
Quantity:
IC01 - ODP, 48Z Frame, 115/208-230VAC Single Phase 60Hz, 13190489, Resilient Base, Foot Mounted, Rolled Steel, 1/2" Shaft

Electric Motors

Frame48Z
Output0.25 HP (0.18 kW)
Number of Poles4
Frequency60 Hz
Rated speed1710 rpm
Slip5.00 %
Rated voltage115/208-230 V
Rated current4.24/2.20-2.12 A
L. R. Amperes25.4/13.2-12.7 A
LRC6.0x(Code N)
No load current4.00/1.72-2.00 A
Rated torque0.757 ft.lb
Locked rotor torque150 %
Breakdown torque220 %
Locked rotor time0s (cold) 0s (hot)
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.35 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³16.0 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
42.051.055.0

Power factor

50%75%100%
0.490.590.67

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodNot Balanced
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
1/4HP
Frame
48Z
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
