Motor/Control Division

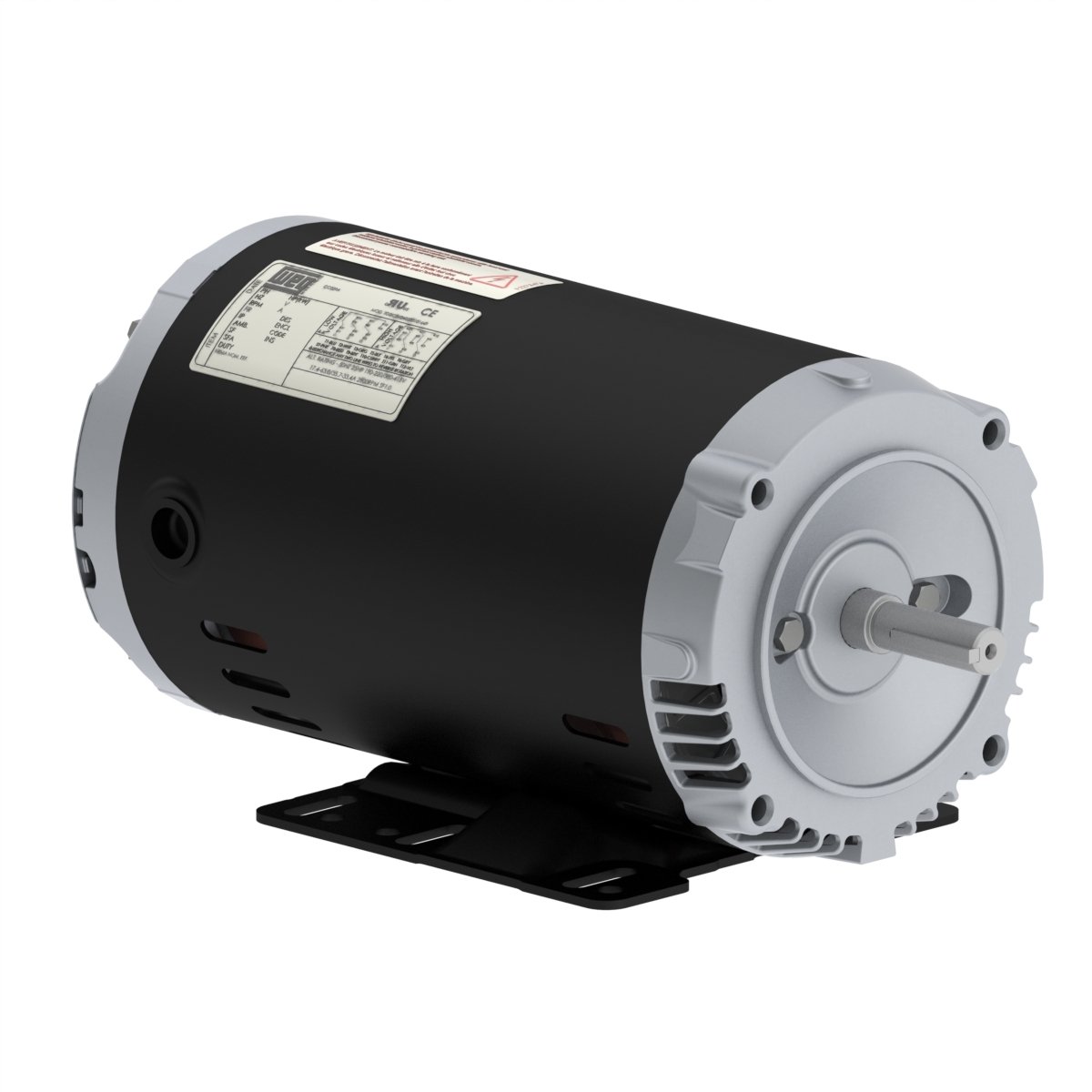

Frame	56C
Output	0.25 HP (0.18 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	208-230/460 V
Rated current	1.18-1.07/0.533 A
L. R. Amperes	6.96-6.29/3.14 A
LRC	5.9x(Code M)
No load current	0.862-1.00/0.500 A
Rated torque	0.734 ft.lb
Locked rotor torque	229 %
Breakdown torque	330 %
Locked rotor time	68s (cold) 38s (hot)

Moment of inertia (J)	0.0389 sq.ft.lb
Insulation Class	F
Temperature rise	80 K
Service factor	1.35 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	52.0 dB(A)
Approx. weight?	16.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
57.5	64.0	69.5

Power factor

50%	75%	100%
0.41	0.52	0.61

Frame	56C
Output	0.25 HP (0.18 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	190/380 V
Rated current	1.14/0.571 A
L. R. Amperes	5.71/2.85 A
LRC	5.0x(Code J)
No load current	0.910/0.455 A
Rated torque	0.890 ft.lb
Locked rotor torque	170 %
Breakdown torque	270 %
Locked rotor time	84s (cold) 47s (hot)

Moment of inertia (J)	0.0389 sq.ft.lb
Insulation Class	F
Service factor	1.35
Temperature rise	80 K
Service factor	1.35 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	16.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
59.2	66.3	69.4

Power factor

50%	75%	100%
0.48	0.59	0.69

Frame	56C
Output	0.25 HP (0.18 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	220/415 V
Rated current	1.15/0.612 A
L. R. Amperes	5.89/3.12 A
LRC	5.1x(Code K)
No load current	1.03/0.548 A
Rated torque	0.884 ft.lb
Locked rotor torque	210 %
Breakdown torque	330 %
Locked rotor time	68s (cold) 38s (hot)

Moment of inertia (J)	0.0389 sq.ft.lb
Insulation Class	F
Service factor	1.35
Temperature rise	80 K
Service factor	1.35 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	16.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
54.0	62.5	67.1

Power factor

50%	75%	100%
0.42	0.52	0.61

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without

6203ZZC3 Koyo Ball Bearing, Shielded

6203-ZZC3, 17mm x 40mm x 12mm
Available Stock: 14

MFG: JTEKT Corporation

6203-ZZC3

$6.00 / Each

Details...

Type

Electric Motor

Input Phase

3-Phase

Speed

1800RPM

Frame

56C

Enclosure

ODP

Horsepower

1/4HP

Input Voltage

208VAC

Input Voltage

208VAC

Input Voltage

230VAC

Input Voltage

230VAC

Input Voltage

460VAC

Input Voltage

460VAC
