/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Rolled Steel, ODP/C-Face, Foot Mount/.2536OT3E56C-S WEG 1/4HP General Purpose Electric Motor, 3600RPM

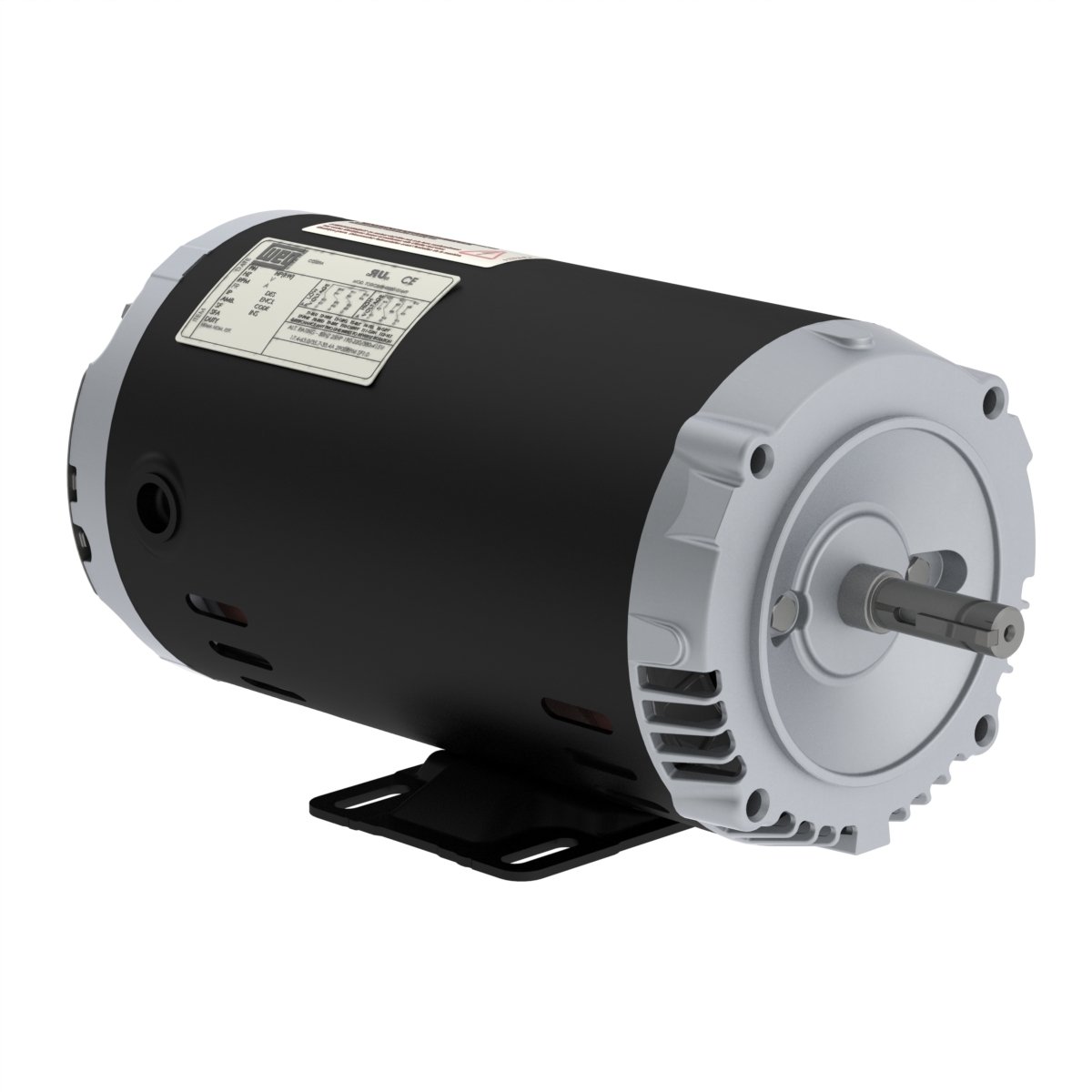

.2536OT3E56C-S WEG 1/4HP General Purpose Electric Motor, 3600RPM
Enlarge Photo

Product ID: .2536OT3E56C-S

.2536OT3E56C-S WEG 1/4HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .2536OT3E56C-S

Selected accessories will also be added to cart
$230.51 / Each
Quantity:
IC01 - ODP, 56C Frame, 208-230/460VAC 3-Phase 60Hz, 12808936, C-Face, Foot Mount, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame56C
Output0.25 HP (0.18 kW)
Number of Poles2
Frequency60 Hz
Rated speed3525 rpm
Slip2.08 %
Rated voltage208-230/460 V
Rated current1.01-0.918/0.459 A
L. R. Amperes7.00-6.33/3.17 A
LRC6.9x(Code M)
No load current0.604-0.700/0.350 A
Rated torque0.367 ft.lb
Locked rotor torque240 %
Breakdown torque330 %
Locked rotor time77s (cold) 43s (hot)
Moment of inertia (J)0.0389 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.35 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?16.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
55.0  64.0  65.6

Power factor

50%75%100%
0.56  0.66  0.75
Frame56C
Output0.25 HP (0.18 kW)
Number of Poles2
Frequency50 Hz
Rated speed2900 rpm
Slip3.33 %
Rated voltage190/380 V
Rated current0.988/0.494 A
L. R. Amperes5.43/2.72 A
LRC5.5x(Code J)
No load current0.638/0.319 A
Rated torque0.447 ft.lb
Locked rotor torque180 %
Breakdown torque270 %
Locked rotor time97s (cold) 54s (hot)
Moment of inertia (J)0.0389 sq.ft.lb
Insulation ClassF
Service factor1.35
Temperature rise80 K
Service factor1.35 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?60.0 dB(A)
Approx. weight?16.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
58.8  65.6  68.3

Power factor

50%75%100%
0.62  0.73  0.81
Frame56C
Output0.25 HP (0.18 kW)
Number of Poles2
Frequency50 Hz
Rated speed2920 rpm
Slip2.67 %
Rated voltage220/415 V
Rated current0.938/0.497 A
L. R. Amperes5.63/2.98 A
LRC6.0x(Code K)
No load current0.713/0.378 A
Rated torque0.444 ft.lb
Locked rotor torque220 %
Breakdown torque320 %
Locked rotor time81s (cold) 45s (hot)
Moment of inertia (J)0.0389 sq.ft.lb
Insulation ClassF
Service factor1.35
Temperature rise80 K
Service factor1.35 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?60.0 dB(A)
Approx. weight?16.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
55.2  63.1  67.2

Power factor

50%75%100%
0.55  0.66  0.75

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Frame
56C
Enclosure
ODP
Horsepower
1/4HP
Input Voltage
208VAC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
460VAC
