.2536ES1BW56C-S WEG 1/4HP Electric Motor, 3600RPM

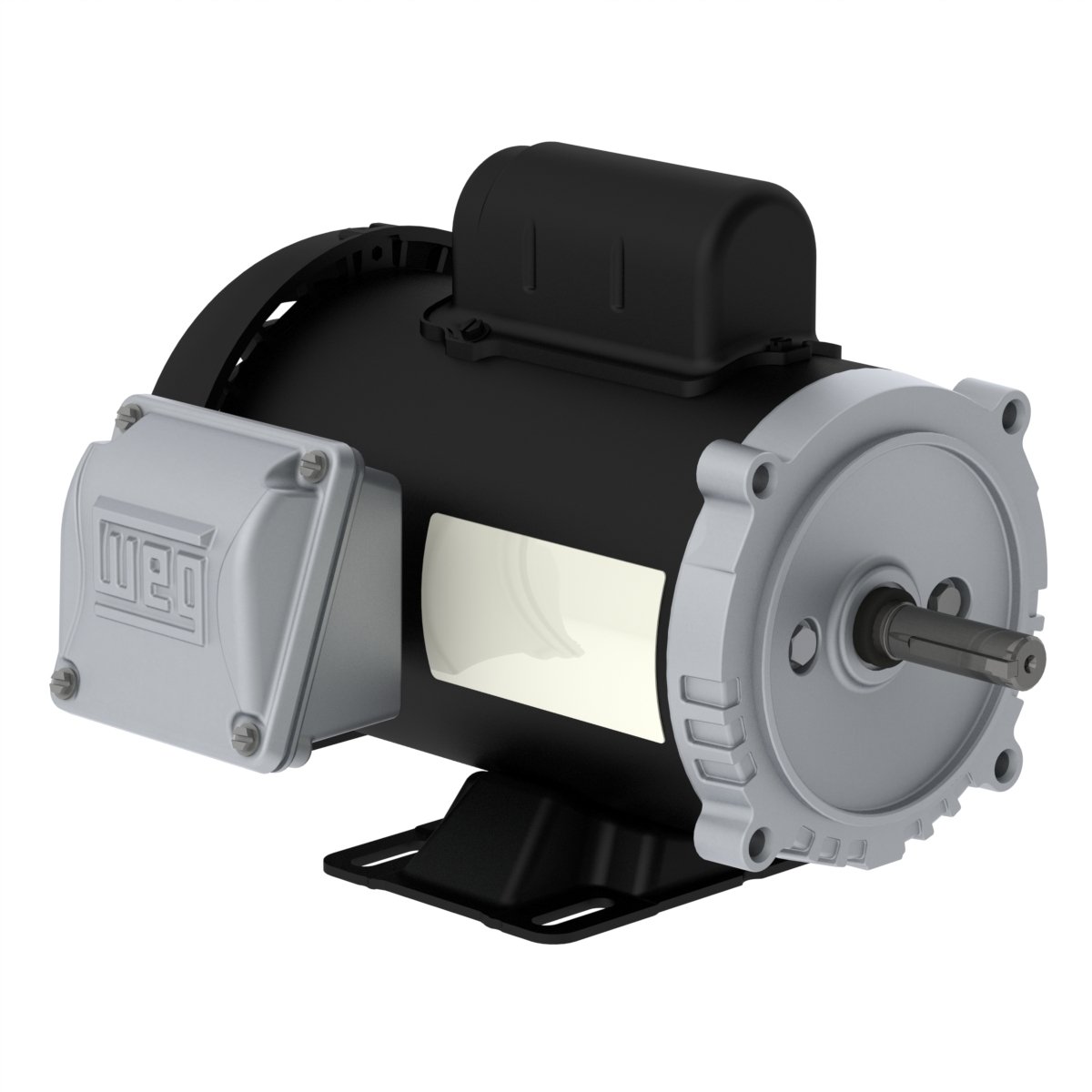

Enlarge Photo

Product ID: .2536ES1BW56C-S

.2536ES1BW56C-S WEG 1/4HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .2536ES1BW56C-S

Selected accessories will also be added to cart
$249.20 / Each
Quantity:
IC411 - TEFC, W56C Frame, 115/208-230VAC Single Phase 60Hz, 13685097, C-Face, Foot Mount, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

FrameW56C
Output0.25 HP (0.18 kW)
Number of Poles2
Frequency60 Hz
Rated speed3485 rpm
Slip3.19 %
Rated voltage<115/208-230 V
Rated current4.20/2.32-2.10 A
L. R. Amperes<27.7/15.3-13.8 A
LRC6.6x(Code P)
No load current<3.20/1.38-1.60 A
Rated torque0.372 ft.lb
Locked rotor torque290 %
Breakdown torque300 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)0.0147 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²66.0 dB(A)
Approx. weight³17.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
35.044.050.0

Power factor

50%75%100%
0.600.680.74

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodNot Balanced
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
1/4HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
W56C
