/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, ODP/Foot Mount/.2536OT1B48-S WEG 1/4HP General Purpose Electric Motor, 3600RPM

Product ID: .2536OT1B48-S

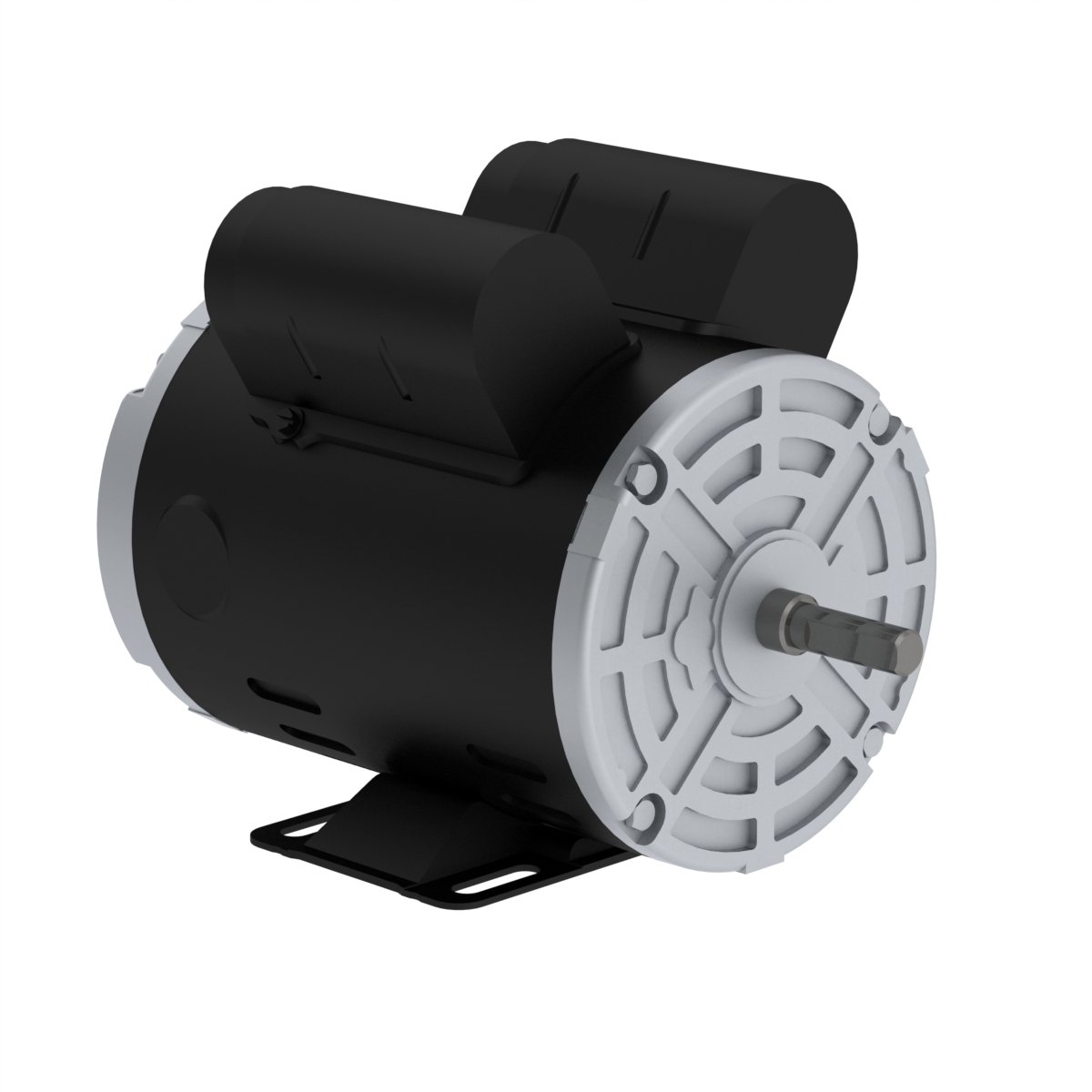

.2536OT1B48-S WEG 1/4HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .2536OT1B48-S

Selected accessories will also be added to cart

$225.17 / Each

Quantity:

IC01 - ODP, 48 Frame, 115/208-230VAC Single Phase 60Hz, 14360133, Rolled Steel, Foot Mount, 1/2" Keyed

Electric Motors

Frame	48
Output	0.25 HP (0.18 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3510 rpm
Slip	2.50 %
Rated voltage	115/208-230 V
Rated current	2.50/1.38-1.25 A
L. R. Amperes	22.0/12.1-11.0 A
LRC	8.8x(Code M)
No load current	1.00/0.431-0.500 A
Rated torque	0.369 ft.lb
Locked rotor torque	280 %
Breakdown torque	310 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.0211 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.35 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	56.0 dB(A)
Approx. weightÂ³	17.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
50.0	59.0	66.6

Power factor

50%	75%	100%
0.91	0.93	0.94

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without

6203ZZC3 Koyo Ball Bearing, Shielded

6203ZZC3 Koyo Ball Bearing, Shielded

6203-ZZC3, 17mm x 40mm x 12mm
Available Stock: 15

MFG: JTEKT Corporation

6203-ZZC3

$6.00 / Each

Type

Electric Motor

Input Phase

Single Phase

Speed

3600RPM

Enclosure

ODP

Horsepower

1/4HP

Input Voltage

230VAC

Input Voltage

208VAC

Input Voltage

115VAC

Frame

48
