/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, ODP/C-Face, Foot Mount/.2536OT1BW56C-S WEG 1/4HP Electric Motor, 3600RPM
.2536OT1BW56C-S WEG 1/4HP Electric Motor, 3600RPM

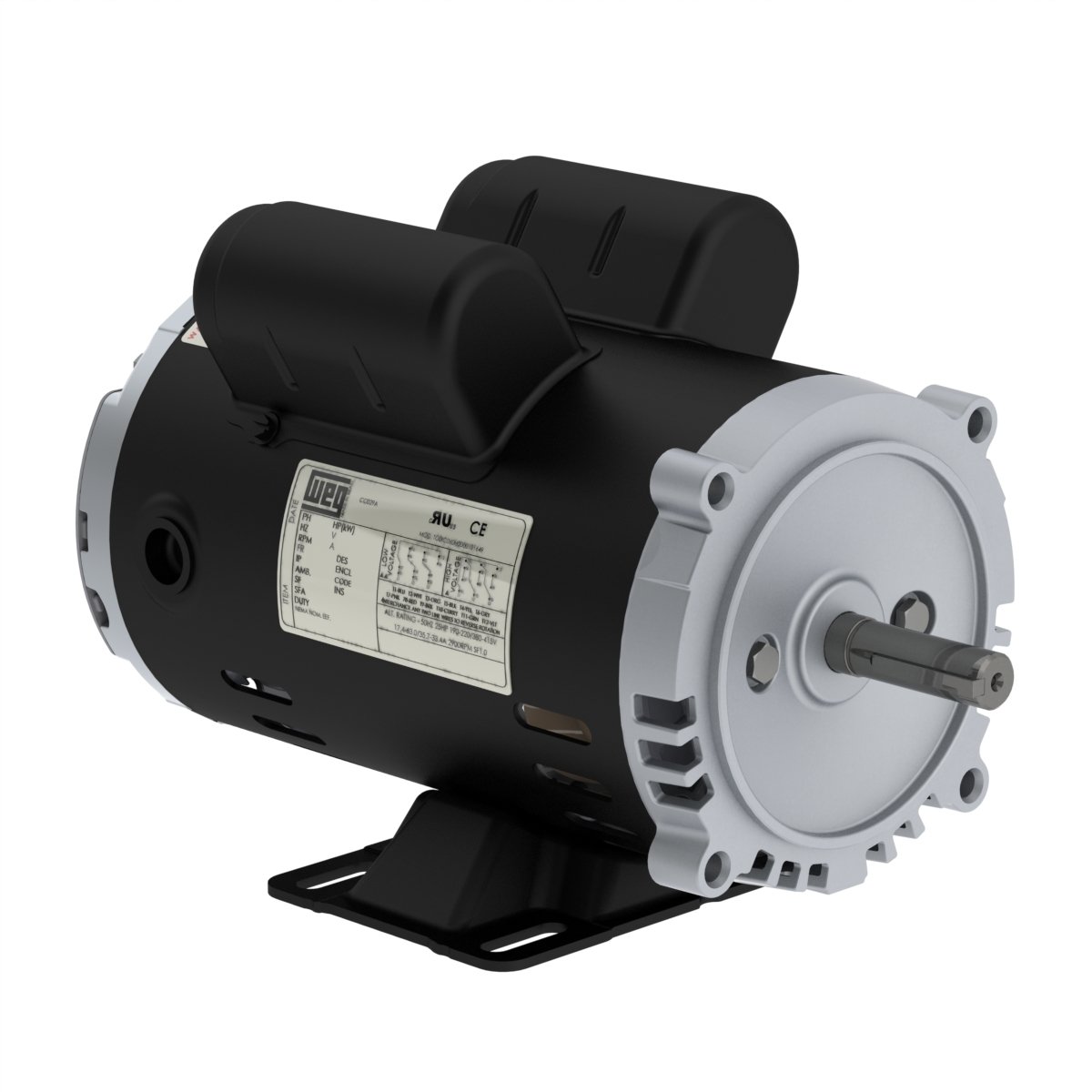

Enlarge Photo

Product ID: .2536OT1BW56C-S

.2536OT1BW56C-S WEG 1/4HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .2536OT1BW56C-S

Selected accessories will also be added to cart
$250.09 / Each
Quantity:
IC01 - ODP, W56C Frame, 115/208-230VAC Single Phase 60Hz, 14419276, C-Face, Foot Mounted, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

FrameW56C
Output0.25 HP (0.18 kW)
Number of Poles2
Frequency60 Hz
Rated speed3510 rpm
Slip2.50 %
Rated voltage115/208-230 V
Rated current2.50/1.38-1.25 A
L. R. Amperes22.0/12.1-11.0 A
LRC8.8x(Code M)
No load current1.00/0.431-0.500 A
Rated torque0.369 ft.lb
Locked rotor torque280 %
Breakdown torque310 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)0.0211 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.35 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²56.0 dB(A)
Approx. weight³17.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
50.059.066.6

Power factor

50%75%100%
0.910.930.94

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodNot Balanced
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
1/4HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
W56C
