Product ID: 2BK2714

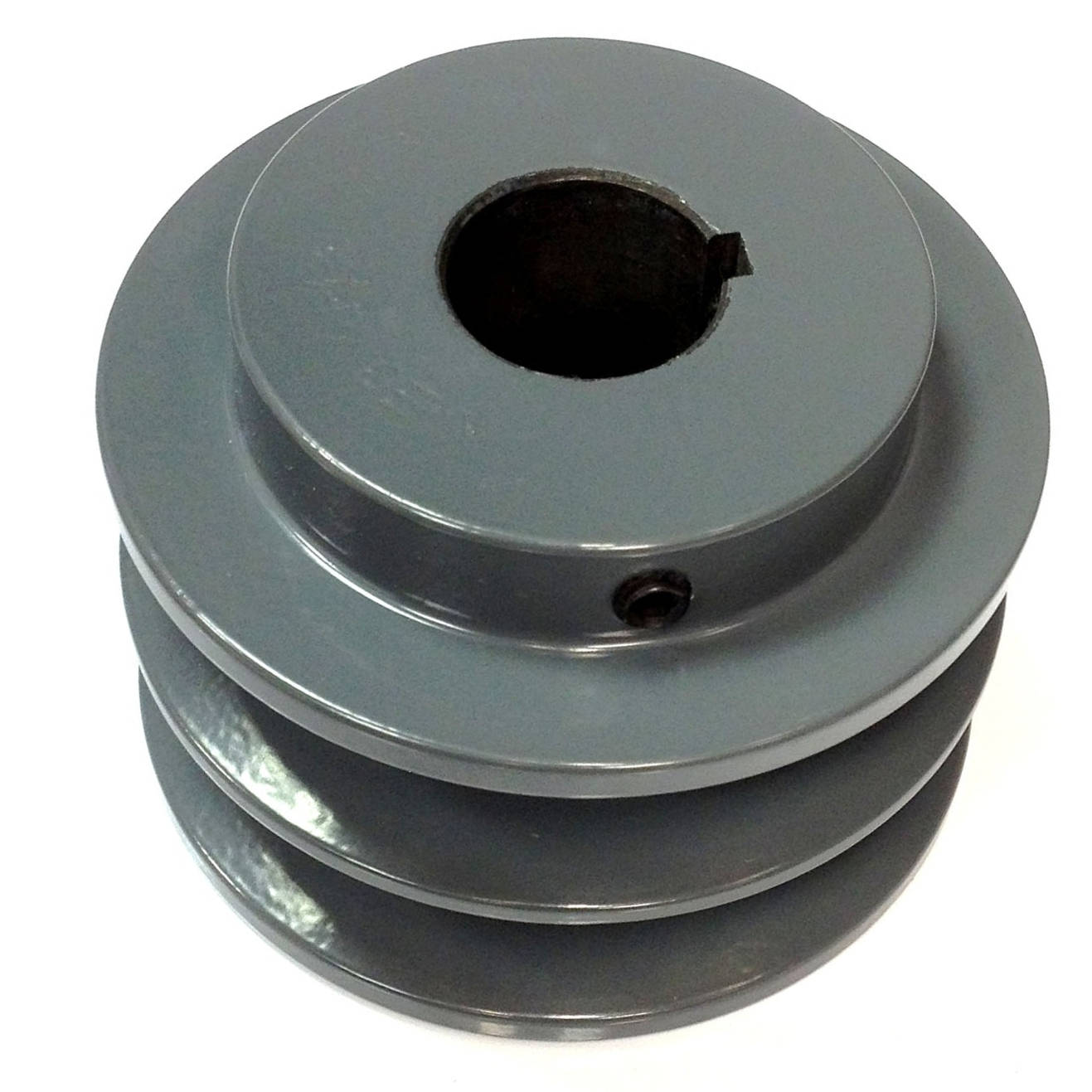

2BK2714 2.70" x 7/8" BK Double Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: 2BK2714

Available Stock: 4
Selected accessories will also be added to cart
$25.74 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Part Number 2BK2714
Bore Size 7/8"
Outside Diameter 2.70"
Pulley Diameter "A" 2.10"
Pulley Diameter "B" 2.50"
Type 1D
Dimension "F" 1-3/4"
Dimension "L" 1-31/32"
Dimension "P" 15/32"
Dimension "C" 1/4"
Approximate Weight 1.6 lbs
Country of Origin
