/Products/Pulleys & Sheaves/2BK Double Groove/2BK3014 3.15" x 7/8" BK Double Groove V-Pulley
Click Image to Expand

Product ID: 2BK3014

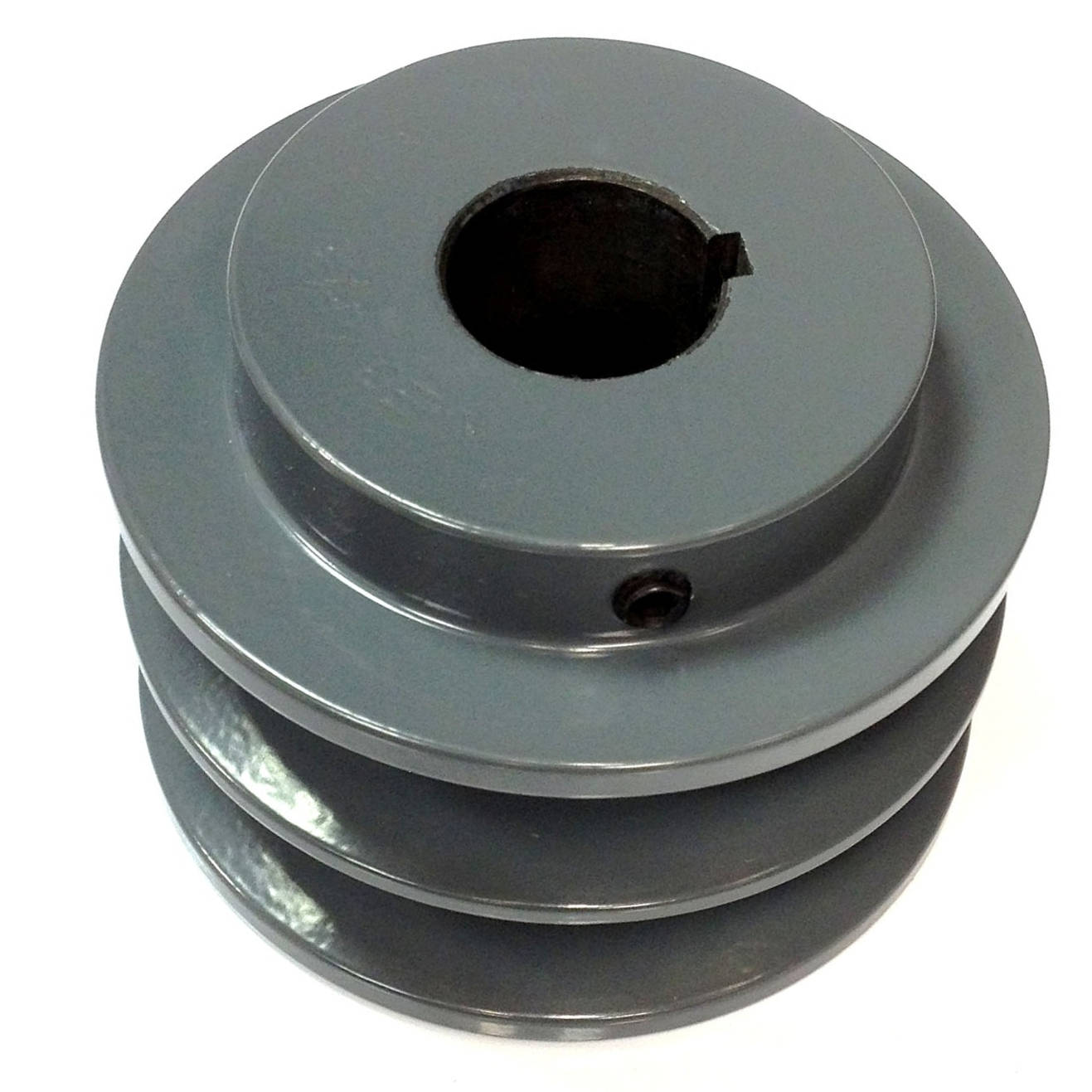

2BK3014 3.15" x 7/8" BK Double Groove V-Pulley

Selected accessories will also be added to cart
$31.46 / Each
Quantity:

Available Stock: 1

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number 2BK3014
2BK30X7/8
Bore Size 7/8"
Outside Diameter 3.15"
Pulley Diameter "A" 2.40"
Pulley Diameter "B" 2.80"

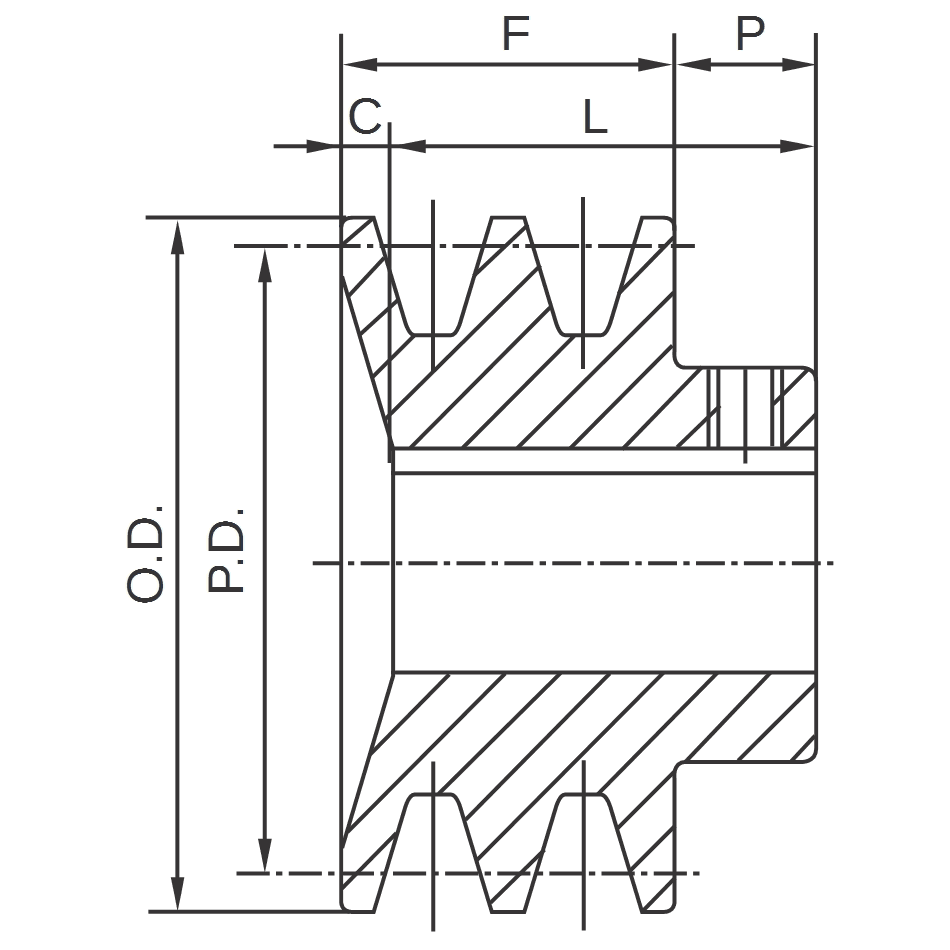

Type 1D
Dimension "F" 1-3/4"
Dimension "L" 1-31/32"
Dimension "P" 15/32"
Dimension "C" 1/4"
Approximate Weight 2.3 lbs
UPC
Country of Origin
