Product ID: 2BK3410

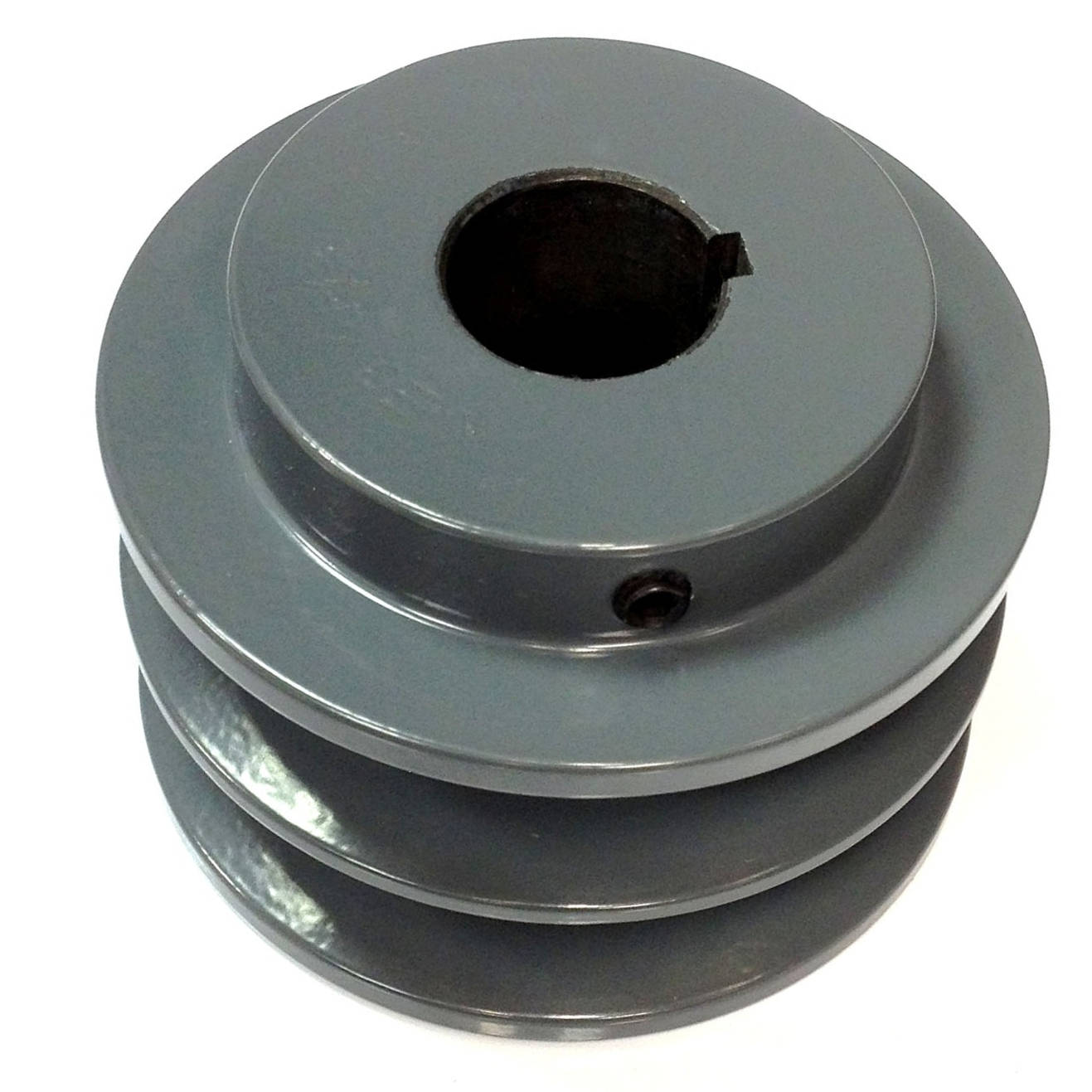

2BK3410 3.55" x 5/8" BK Double Groove V-Pulley

MFG: Leeson Electric
MFG Part Number: 2BK34X5/8

Selected accessories will also be added to cart
$26.38 / Each
Quantity:

Available Stock: 2

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Various
Part Number 2BK3410
2BK34X5/8
Bore Size 5/8"

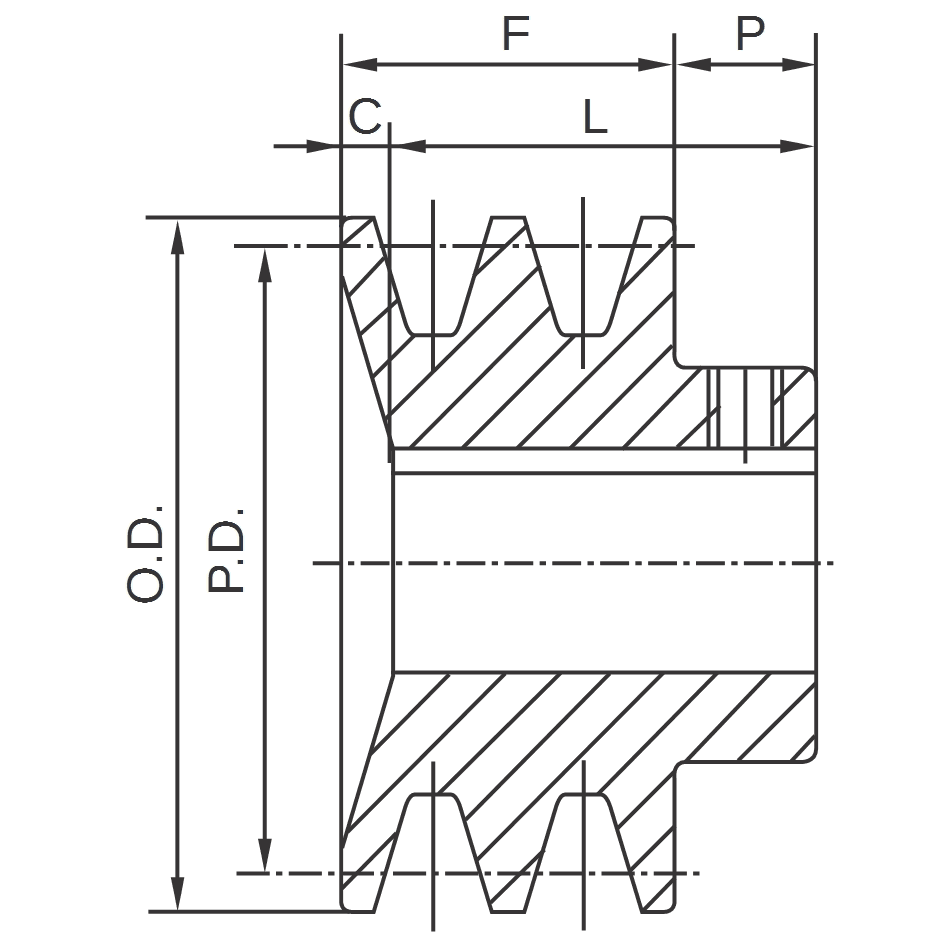

Outside Diameter 3.55"
Pulley Diameter "A" 2.80"
Pulley Diameter "B" 3.20"
Type 1D
Dimension "F" 1-3/4"
Dimension "L" 1-31/32"
Dimension "P" 15/32"
Dimension "C" 1/4"
Approximate Weight 2.8 lbs
