Product ID: 2BK40H

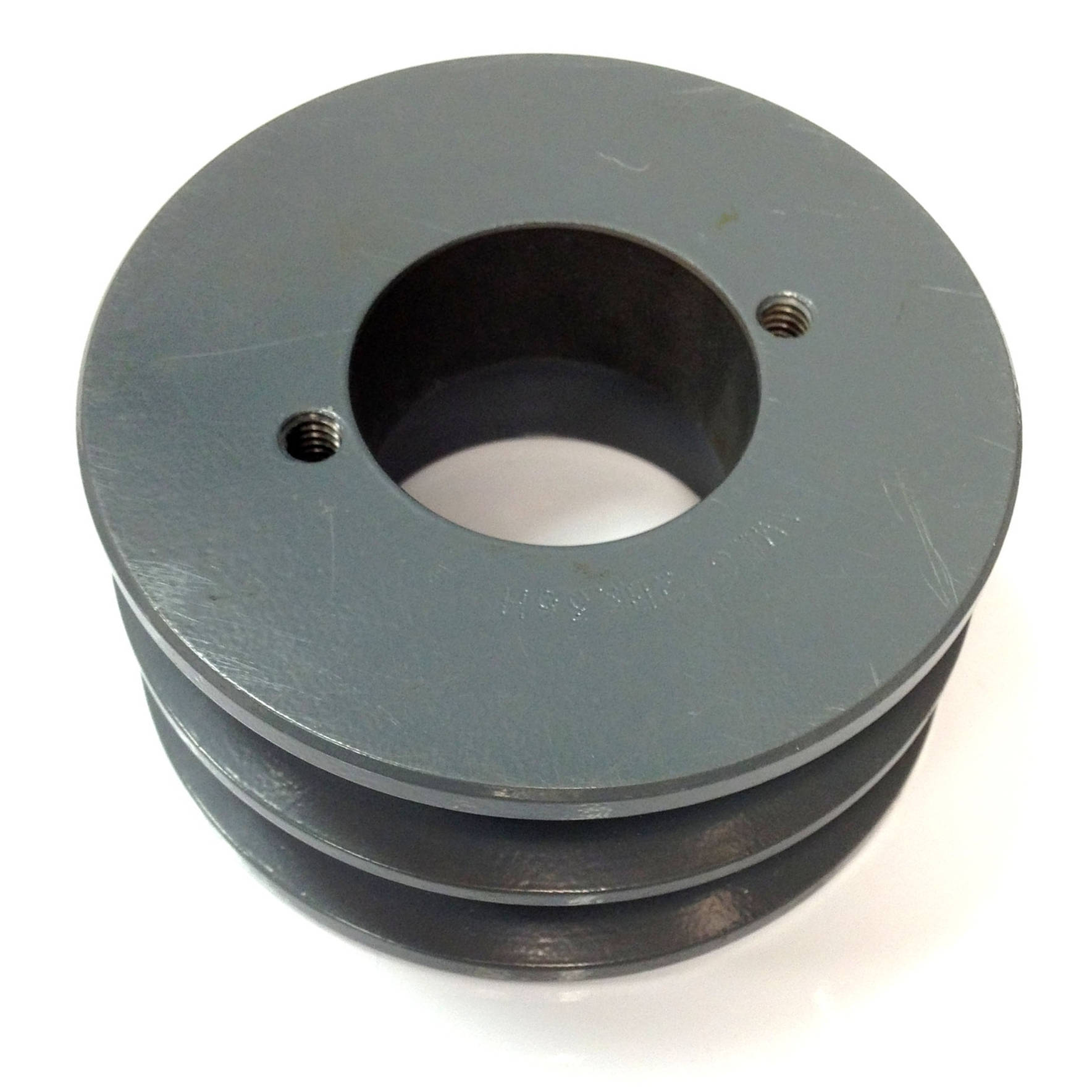

2BK40H AMEC 3.95" "H" Style BK Double Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: 2BK40H

Available Stock: 1
Selected accessories will also be added to cart
$33.58 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Part Number 2BK40H
Outside Diameter 3.95"
Pulley Diameter "A" 3.20"
Pulley Diameter "3L" 3.60"
Type 1D
Dimension "OL" 2-3/8"
Dimension "F" 1-3/4"
Dimension "L" 1-1/4"
Dimension "P" 7/16"
Dimension "C" 7/8"
Dimension "X" 7/8"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 2.4 lbs
Country of Origin
