/Products/Pulleys & Sheaves/2BK-H Double Groove/2BK57H5.45" "H" Style BK Double Groove V-Pulley
Click Image to Expand

Product ID: 2BK57H

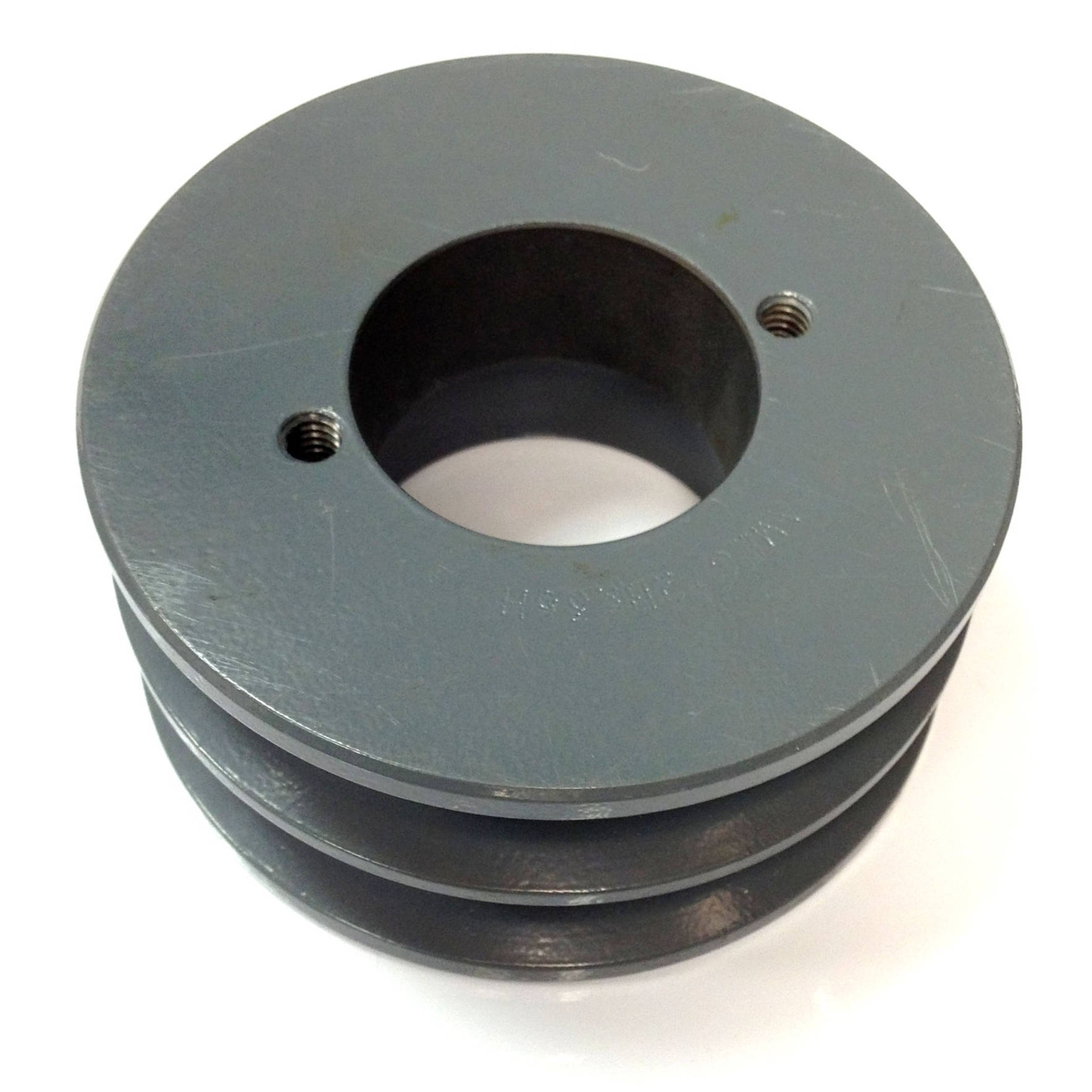

2BK57H5.45" "H" Style BK Double Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 2BK57H

Temporarily out of stock
Selected accessories will also be added to cart
$48.14 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number 2BK57H

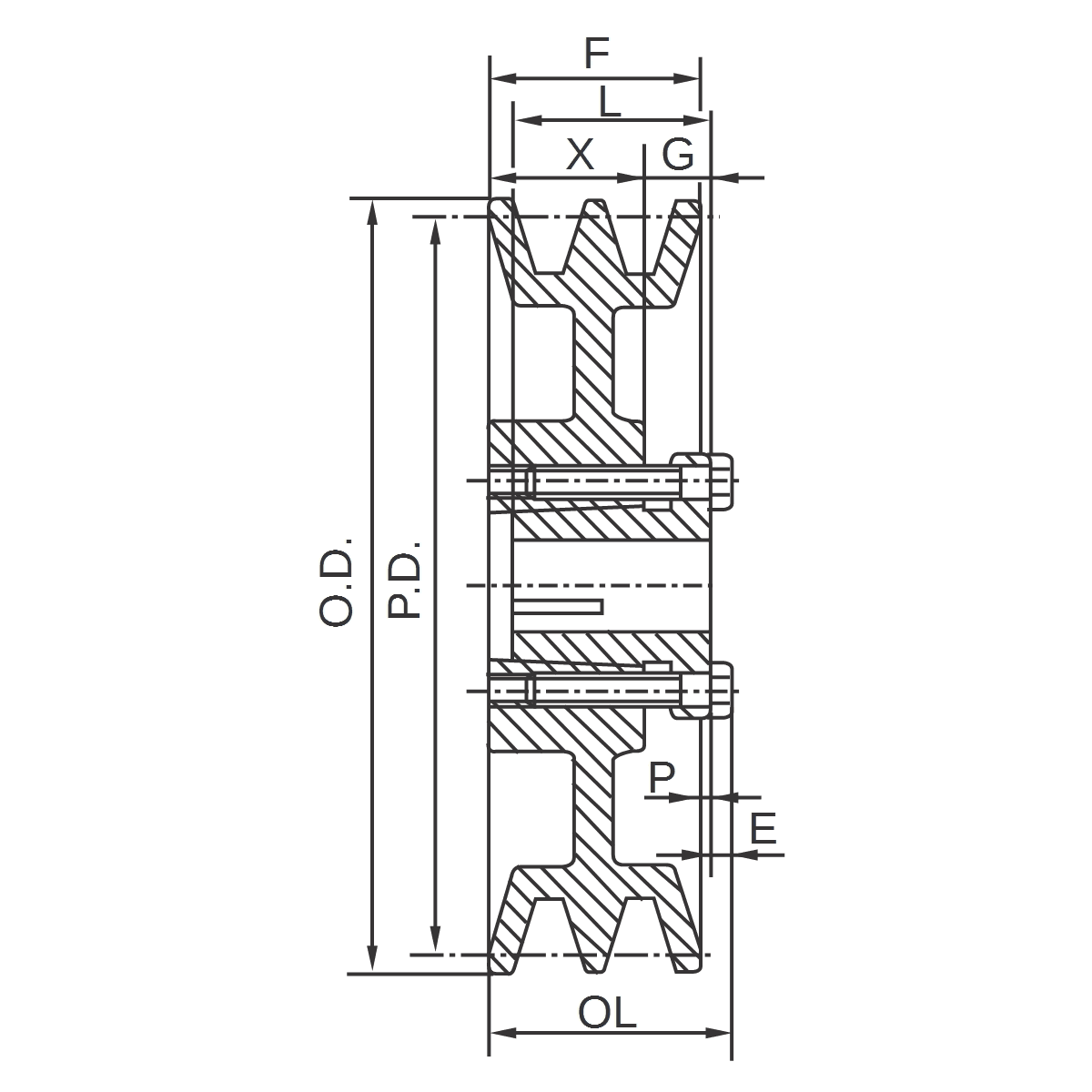

Outside Diameter 5.45"
Pulley Diameter "A" 4.70"
Pulley Diameter "3L" 5.10"
Type 2D
Dimension "OL" 1-3/4"
Dimension "F" 1-3/4"
Dimension "L" 1-1/4"
Dimension "P" 7/16"
Dimension "X" 7/8"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 4.3 lbs
