/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Cast Iron, ODP, W40/Refrigeration/30036OT3G449TS-RFVFD WEG 300HP Refrigeration Electric Motor, 3600RPM

Product ID: 30036OT3G449TS-RFVFD

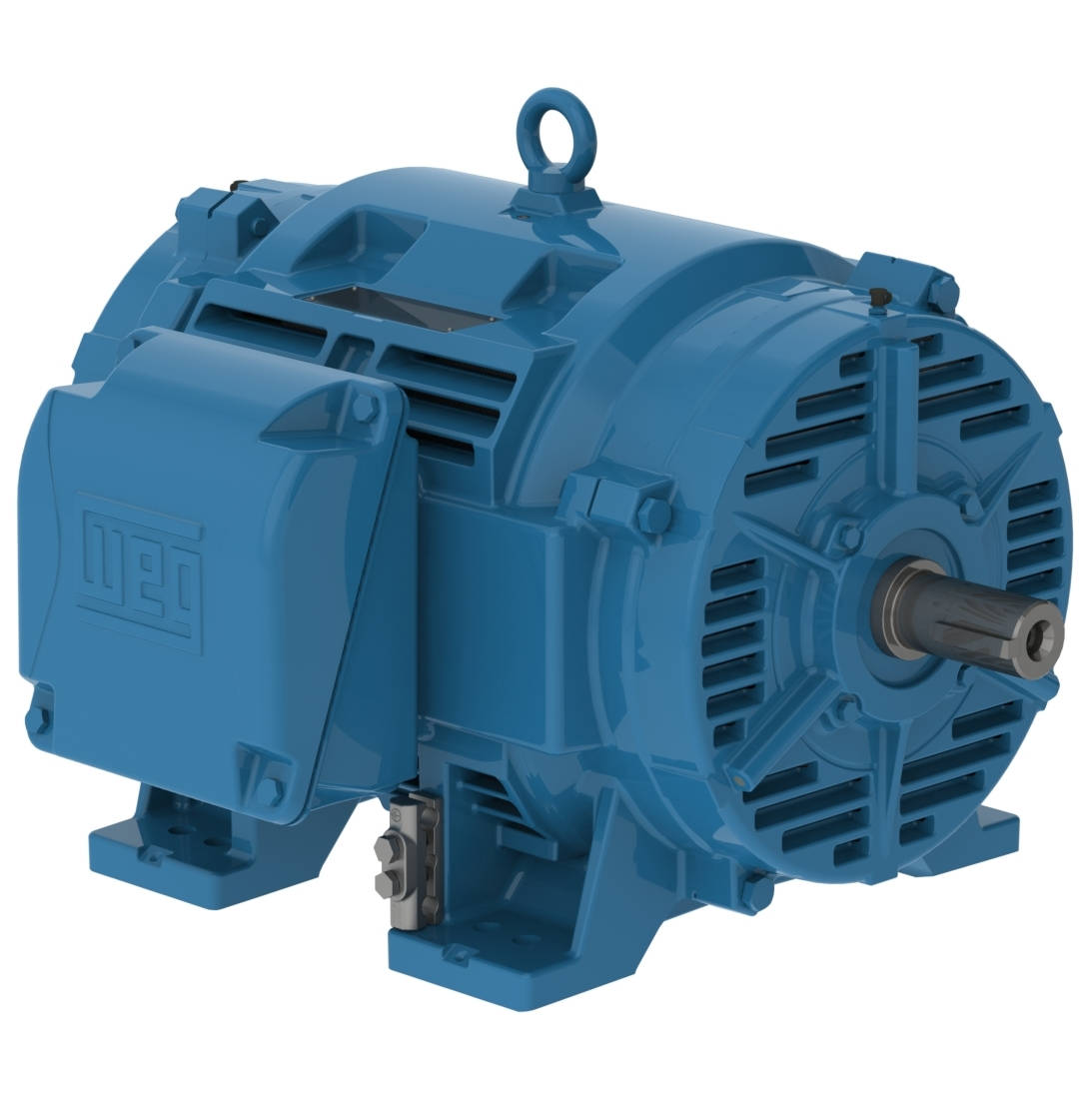

30036OT3G449TS-RFVFD WEG 300HP Refrigeration Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 30036OT3G449TS-RFVFD

Selected accessories will also be added to cart

$24,374.43 / Each

Quantity:

IC01 - ODP, IP23, 447TS/449TS Frame, 460VAC 60Hz 3 Phase, 16086810, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, AEGIS Shaft Grounding Ring, Insulated Bearing Housing, 2-3/8" Keyed Shaft

Details
Specs

Frame	447/9TS
Output	300 HP (220 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3575 rpm
Slip	0.69 %
Rated voltage	460 V
Rated current	329 A
L. R. Amperes	2764 A
LRC	8.4x(Code J)
No load current	102 A
Rated torque	441 ft.lb
Locked rotor torque	229 %
Breakdown torque	340 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	33.7 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	VFD
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	87.0 dB(A)
Approx. weight?	1943 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
95.2	95.4	95.4

Power factor

50%	75%	100%
0.77	0.84	0.88

Type

Electric Motor

Input Phase

3-Phase

Speed

3600RPM

Enclosure

ODP

Horsepower

300HP

Input Voltage

460VAC

Frame

447TS/449TS

Application

Refrigeration
