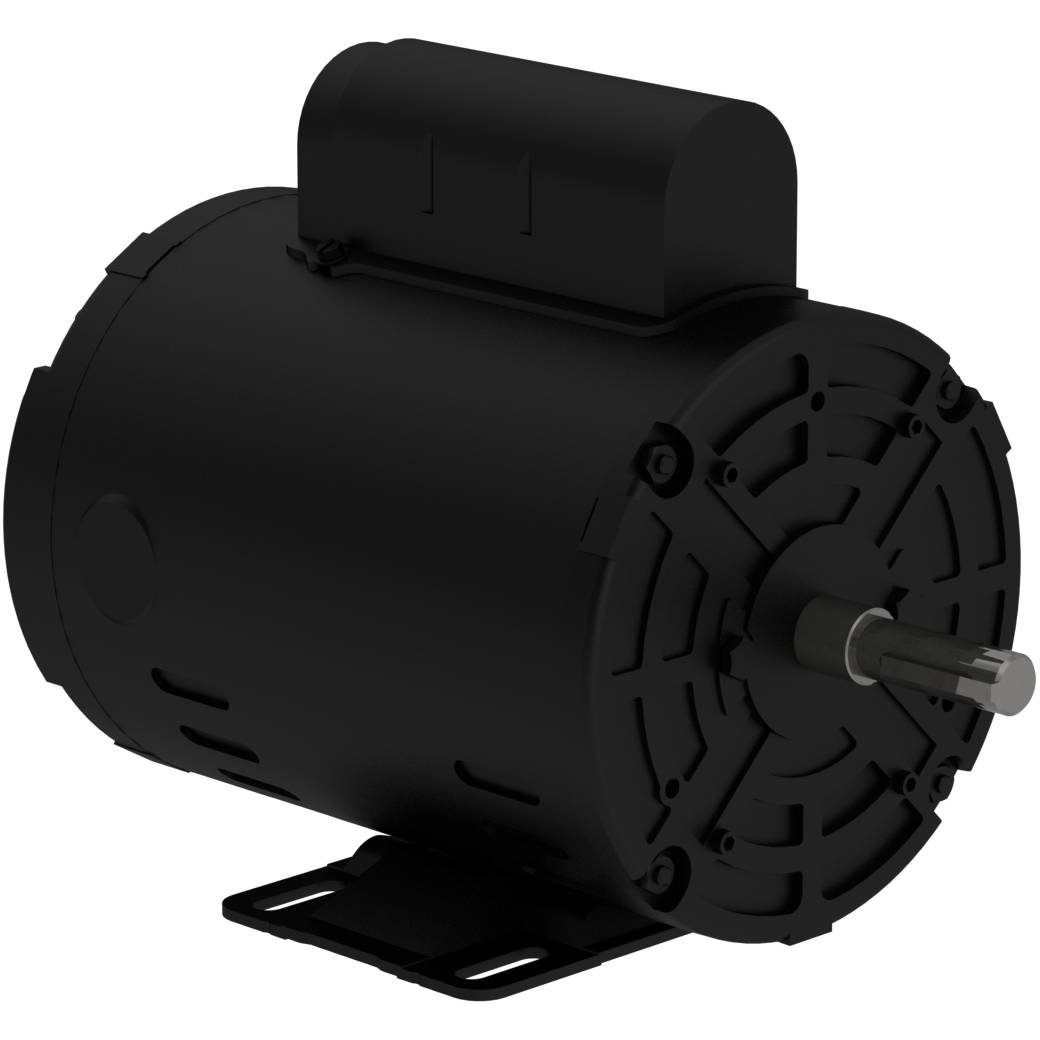

.3318AS1BPF48-S WEG 1/3HP Farm Duty Poultry Fan Electric Motor, 1800RPM
Enlarge Photo

Product ID: .3318AS1BPF48-S

.3318AS1BPF48-S WEG 1/3HP Farm Duty Poultry Fan Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .3318AS1BPF48-S

Selected accessories will also be added to cart
$276.79 / Each
Quantity:
IC410 -TEAO, IP55, 48 Frame, 115/208-230VAC 60Hz Single Phase, 15508279, Rolled Steel, Split Phase, Foot Mounted, 1/2" Flat Shaft

Electric Motors

Frame48
Output0.33 HP (0.25 kW)
Number of Poles4
Frequency60 Hz
Rated speed1720 rpm
Slip4.44 %
Rated voltage115/208-230 V
Rated current5.52/2.70-2.76 A
L. R. Amperes43.1/21.1-21.5 A
LRC7.8x(Code R)
No load current4.40/1.90-2.25 A
Rated torque1.01 ft.lb
Locked rotor torque180 %
Breakdown torque235 %
Locked rotor time0s (cold) 0s (hot)
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³16.8 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
50.658.361.5

Power factor

50%75%100%
0.460.560.64

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodNot Balanced
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Automatic
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Enclosure
TEAO
Horsepower
1/3HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
48
Application
Poultry Fan
