/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, ODP/Foot Mount/.3318OS1BSPO48-S WEG 1/3HP General Purpose Electric Motor, 1800RPM

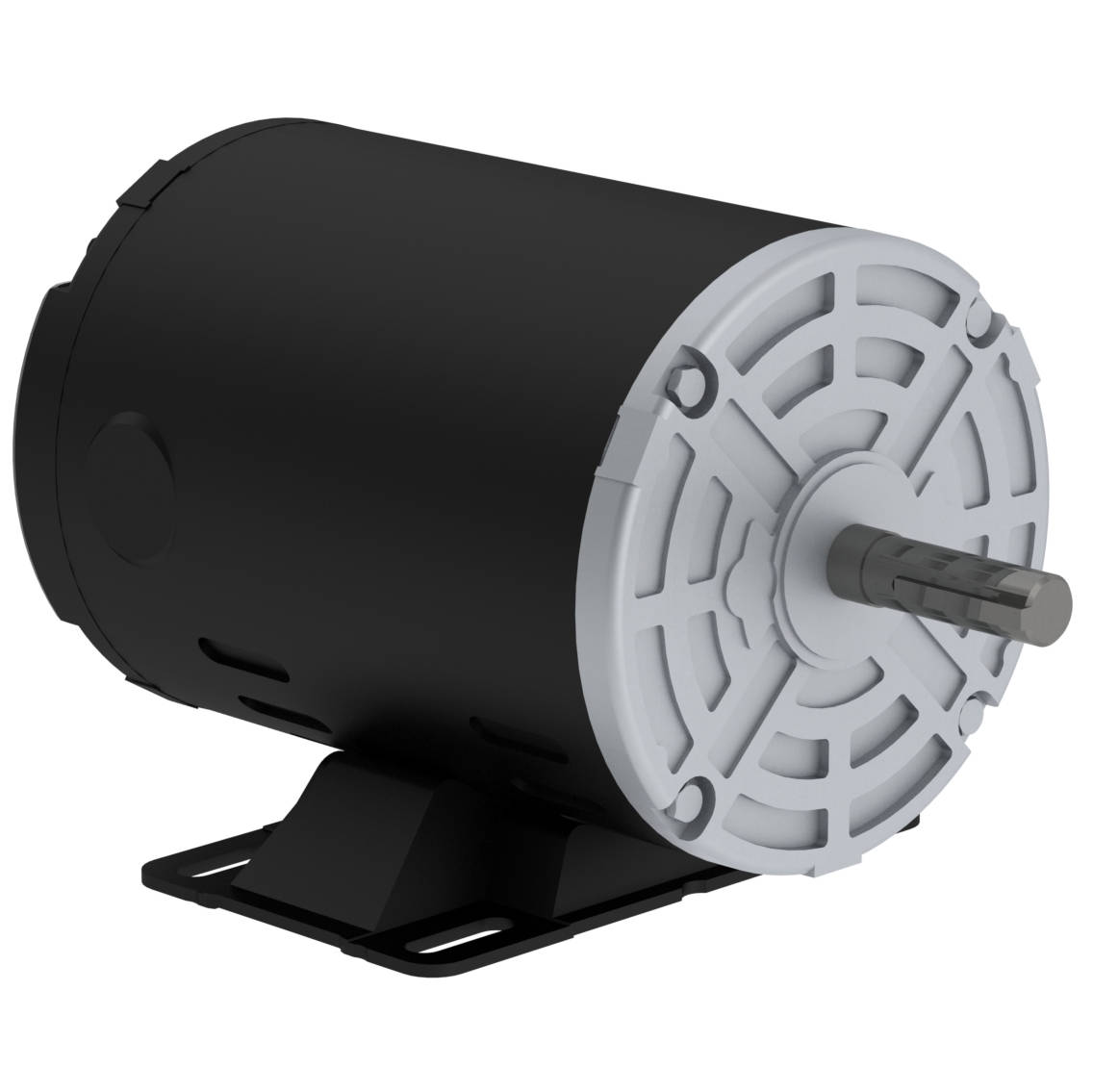

.3318OS1BSPO48-S WEG 1/3HP General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: .3318OS1BSPO48-S

.3318OS1BSPO48-S WEG 1/3HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .3318OS1BSPO48-S

Selected accessories will also be added to cart
$220.72 / Each
Quantity:
IC01 - ODP, 48 Frame, 115/208-230VAC 60Hz Single Phase, 14275155, Rolled Steel Frame, Split Phase, Foot Mounted

Electric Motors

Frame48
Output0.33 HP (0.25 kW)
Number of Poles4
Frequency60 Hz
Rated speed1710 rpm
Slip5.00 %
Rated voltage115/208-230 V
Rated current5.16/2.60-2.58 A
L. R. Amperes31.0/15.6-15.5 A
LRC6.0x(Code M)
No load current4.20/1.81-2.10 A
Rated torque1.01 ft.lb
Locked rotor torque120 %
Breakdown torque220 %
Locked rotor time10s (cold) 6s (hot)
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.35 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³14.2 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
51.058.062.0

Power factor

50%75%100%
0.480.600.68

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodNot Balanced
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Automatic
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
1/3HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
48
