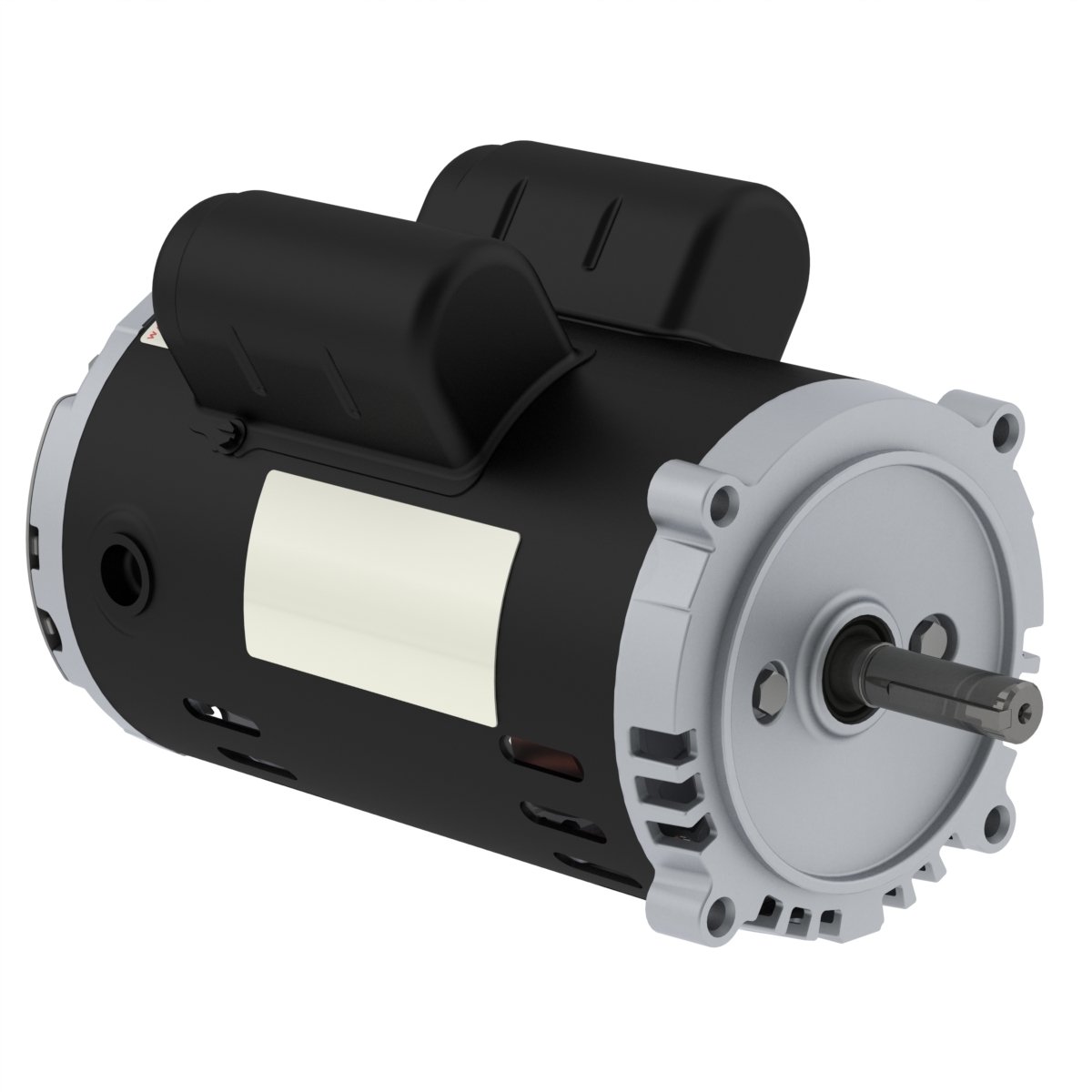

.3318OT1BW56CFL-S WEG 1/3HP Electric Motor, 1800RPM
Enlarge Photo

Product ID: .3318OT1BW56CFL-S

.3318OT1BW56CFL-S WEG 1/3HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .3318OT1BW56CFL-S

Selected accessories will also be added to cart
$269.67 / Each
Quantity:
IC01 - ODP, W56C Frame, 115/208-230VAC Single Phase 60Hz, 13189618, C-Face, Footless, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

FrameW56C
Output0.33 HP (0.25 kW)
Number of Poles4
Frequency60 Hz
Rated speed1745 rpm
Slip3.06 %
Rated voltage115/208-230 V
Rated current4.12/2.32-2.06 A
L. R. Amperes30.1/16.9-15.0 A
LRC7.3x(Code M)
No load current3.10/1.34-1.55 A
Rated torque0.980 ft.lb
Locked rotor torque320 %
Breakdown torque300 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)0.0439 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.35 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²50.0 dB(A)
Approx. weight³19.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
61.068.072.4

Power factor

50%75%100%
0.530.670.73

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodNot Balanced
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
1/3HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
W56C
