Motor/Control Division

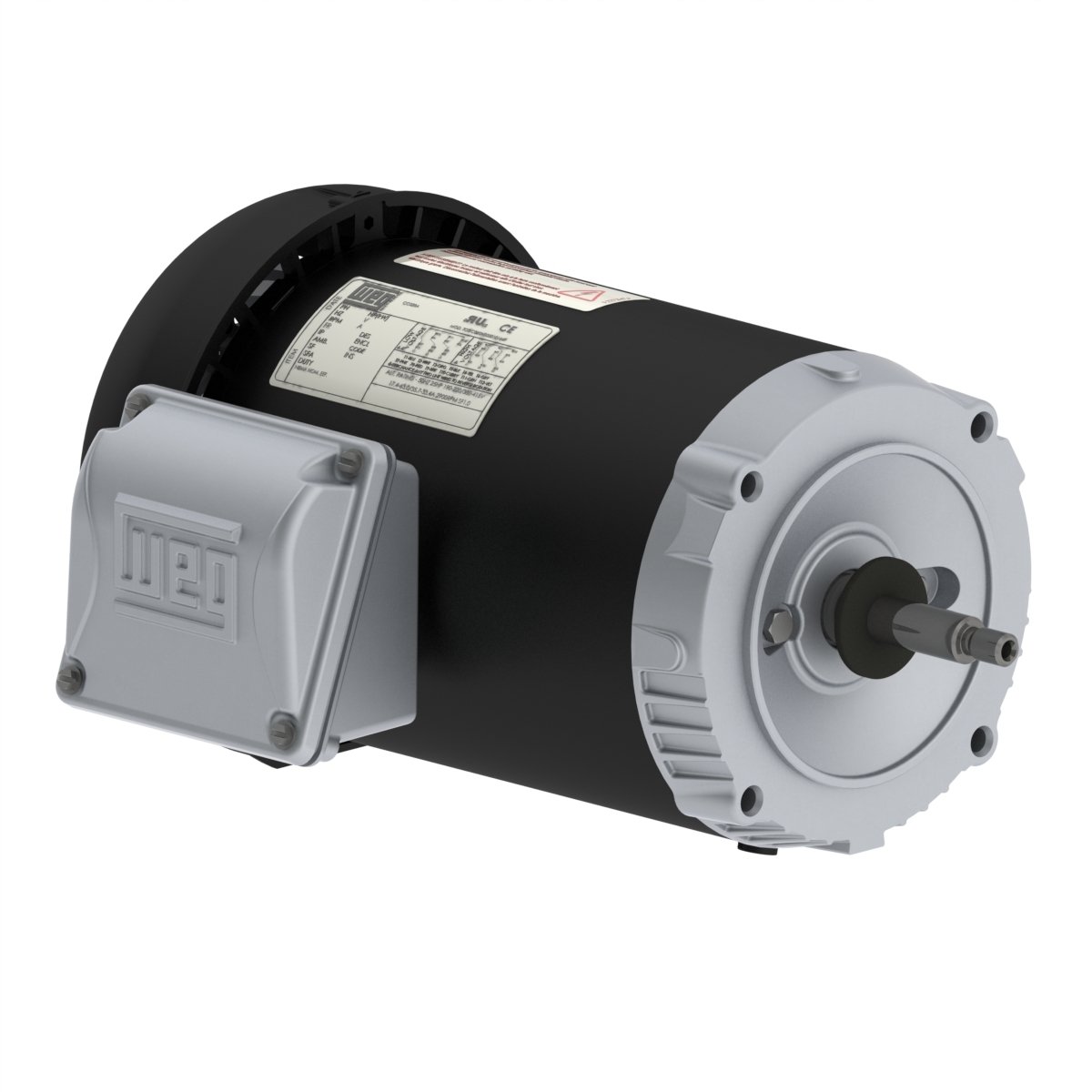

Frame	56J
Output	0.33 HP (0.25 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3485 rpm
Slip	3.19 %
Rated voltage	208-230/460 V
Rated current	1.33-1.20/0.602 A
L. R. Amperes	8.52-7.71/3.85 A
LRC	6.4x(Code L)
No load current	0.621-0.720/0.360 A
Rated torque	0.491 ft.lb
Locked rotor torque	250 %
Breakdown torque	300 %
Locked rotor time	72s (cold) 40s (hot)

Moment of inertia (J)	0.0389 sq.ft.lb
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	CCW
Noise level?	68.0 dB(A)
Approx. weight?	17.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
48.0	57.5	62.0

Power factor

50%	75%	100%
0.72	0.79	0.84

Frame	56J
Output	0.33 HP (0.25 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2850 rpm
Slip	5.00 %
Rated voltage	190/380 V
Rated current	1.27/0.635 A
L. R. Amperes	6.73/3.37 A
LRC	5.3x(Code H)
No load current	0.586/0.293 A
Rated torque	0.600 ft.lb
Locked rotor torque	180 %
Breakdown torque	240 %
Locked rotor time	90s (cold) 50s (hot)

Moment of inertia (J)	0.0389 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	CCW
Noise level?	65.0 dB(A)
Approx. weight?	17.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
59.6	65.4	67.2

Power factor

50%	75%	100%
0.77	0.85	0.89

Frame	56J
Output	0.33 HP (0.25 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2880 rpm
Slip	4.00 %
Rated voltage	220/415 V
Rated current	1.14/0.604 A
L. R. Amperes	6.95/3.68 A
LRC	6.1x(Code K)
No load current	0.658/0.349 A
Rated torque	0.594 ft.lb
Locked rotor torque	220 %
Breakdown torque	290 %
Locked rotor time	75s (cold) 42s (hot)

Moment of inertia (J)	0.0389 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	CCW
Noise level?	65.0 dB(A)
Approx. weight?	17.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
57.7	64.6	67.7

Power factor

50%	75%	100%
0.69	0.79	0.85

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	AISI 304 Stainless Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Without Key
Drip Cover	Without
Resilient Base	Without
