/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, ODP/Jet Pump/.3336OS1BJPRW56J-S WEG 1/3HP Jet Pump Electric Motor, 3600RPM
.3336OS1BJPRW56J-S WEG 1/3HP Jet Pump Electric Motor, 3600RPM

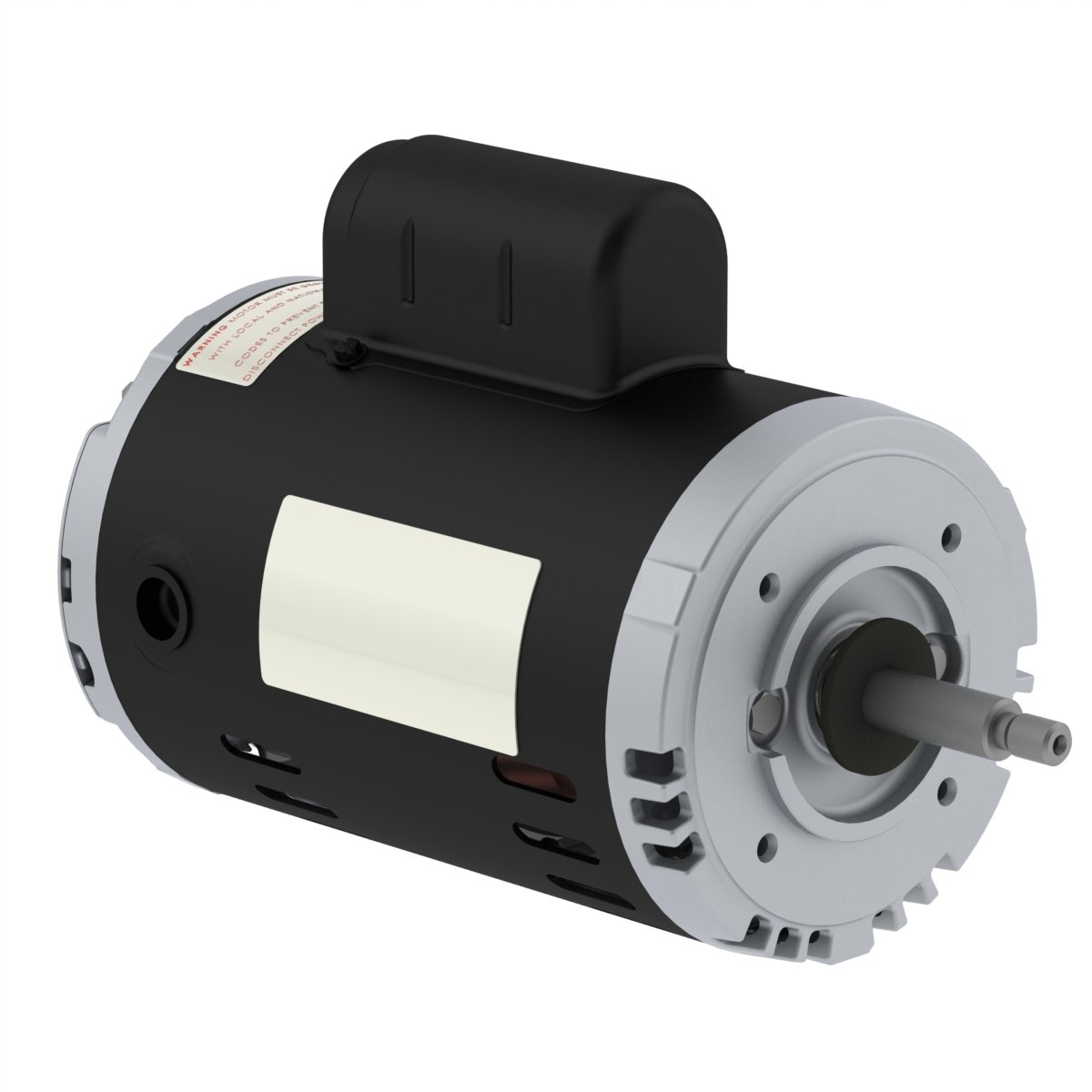

Enlarge Photo

Product ID: .3336OS1BJPRW56J-S

.3336OS1BJPRW56J-S WEG 1/3HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .3336OS1BJPRW56J-S

Available Stock: 2
Selected accessories will also be added to cart
$226.95 / Each
Quantity:
IC01 - ODP, W56J Frame, 115/208-230VAC Single Phase 60Hz, 13624762, Footless, Rolled Steel 304 Stainless Steel Shaft

Electric Motors

FrameW56J
Output0.33 HP (0.25 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage115/208-230 V
Rated current5.00/2.76-2.50 A
L. R. Amperes37.0/20.4-18.5 A
LRC7.4x(Code P)
No load current3.40/1.47-1.70 A
Rated torque0.488 ft.lb
Locked rotor torque300 %
Breakdown torque300 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.0190 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.75 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Noise level²56.0 dB(A)
Approx. weight³17.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
49.056.059.0

Power factor

50%75%100%
0.570.660.74

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialAISI 304 Stainless Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodNot Balanced
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Frame
W56J
Horsepower
1/3HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
