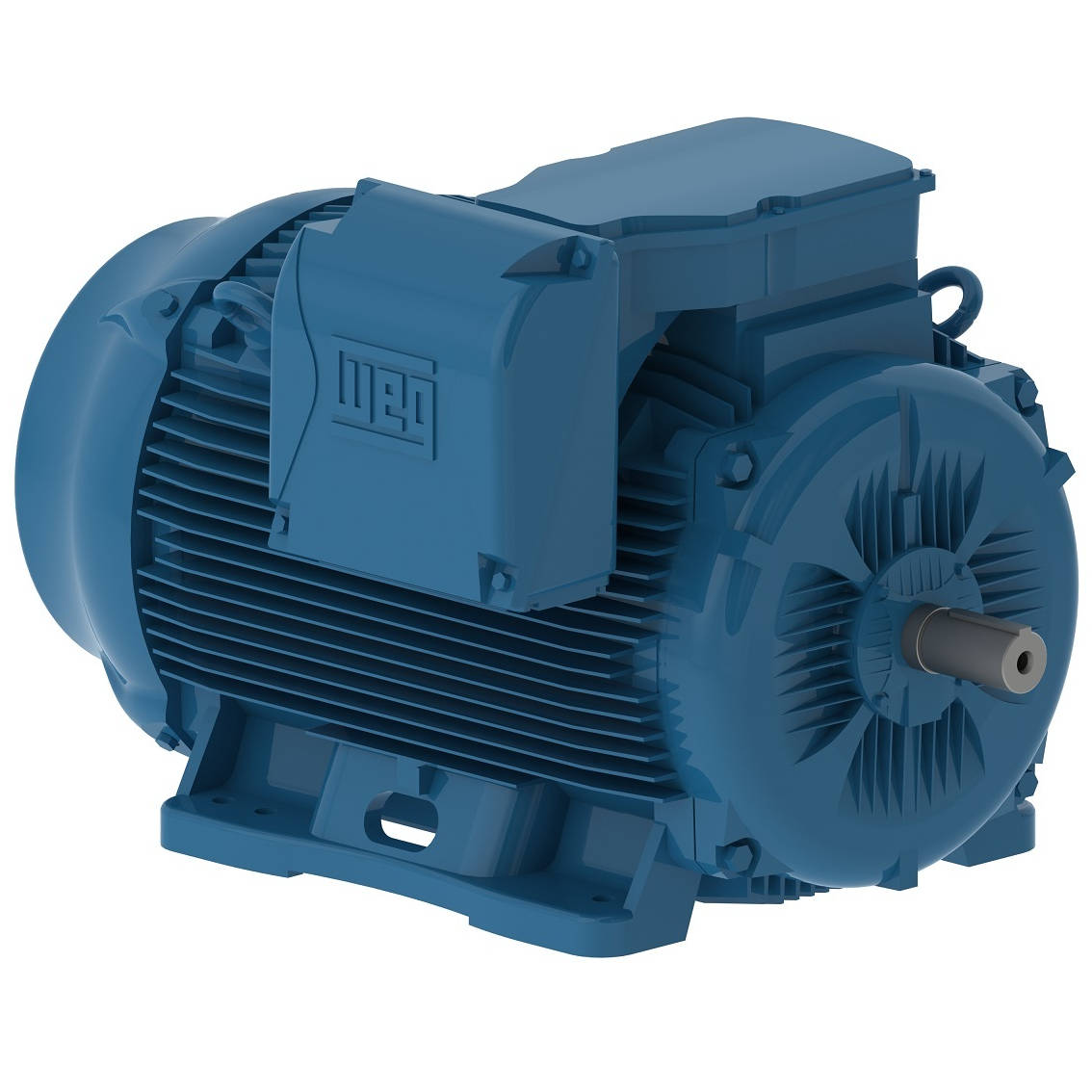

35018ET3G449TS-W22 WEG 350HP Severe Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 35018ET3G449TS-W22

35018ET3G449TS-W22 WEG 350HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 35018ET3G449TS-W22

Selected accessories will also be added to cart
$32,500.13 / Each
Quantity:
IC411 - TEFC, IP55, 447TS/449TS Frame, 460VAC 60Hz 3 Phase, 12075524, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame447/9TS
Output350 HP (260 kW)
Number of Poles4
Frequency60 Hz
Rated speed1785 rpm
Slip0.83 %
Rated voltage460 V
Rated current399 A
L. R. Amperes3192 A
LRC8.0x(Code J)
No load current135 A
Rated torque1030 ft.lb
Locked rotor torque280 %
Breakdown torque280 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)118 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?75.0 dB(A)
Approx. weight?2942 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.2  96.2

Power factor

50%75%100%
0.73  0.82  0.85
Frame447/9TS
Output300 HP (220 kW)
Number of Poles4
Frequency50 Hz
Rated speed1483 rpm
Slip1.13 %
Rated voltage380 V
Rated current405 A
L. R. Amperes2957 A
LRC7.3x(Code H)
No load current135 A
Rated torque1060 ft.lb
Locked rotor torque260 %
Breakdown torque260 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)118 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?71.0 dB(A)
Approx. weight?2942 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  95.8  96.0

Power factor

50%75%100%
0.73  0.82  0.86
Frame447/9TS
Output300 HP (220 kW)
Number of Poles4
Frequency50 Hz
Rated speed1485 rpm
Slip1.00 %
Rated voltage400 V
Rated current389 A
L. R. Amperes3151 A
LRC8.1x(Code J)
No load current143 A
Rated torque1060 ft.lb
Locked rotor torque290 %
Breakdown torque290 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)118 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?71.0 dB(A)
Approx. weight?2942 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.2  96.0

Power factor

50%75%100%
0.70  0.80  0.85
Frame447/9TS
Output300 HP (220 kW)
Number of Poles4
Frequency50 Hz
Rated speed1487 rpm
Slip0.87 %
Rated voltage415 V
Rated current379 A
L. R. Amperes3373 A
LRC8.9x(Code K)
No load current151 A
Rated torque1060 ft.lb
Locked rotor torque310 %
Breakdown torque310 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)118 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?71.0 dB(A)
Approx. weight?2942 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  96.2

Power factor

50%75%100%
0.68  0.79  0.84

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemExtended, at Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Horsepower
350HP
Input Voltage
460VAC
Frame
447TS/449TS
