35036ET3G449TS-W22 WEG 350HP Severe Duty Electric Motor, 3600RPM

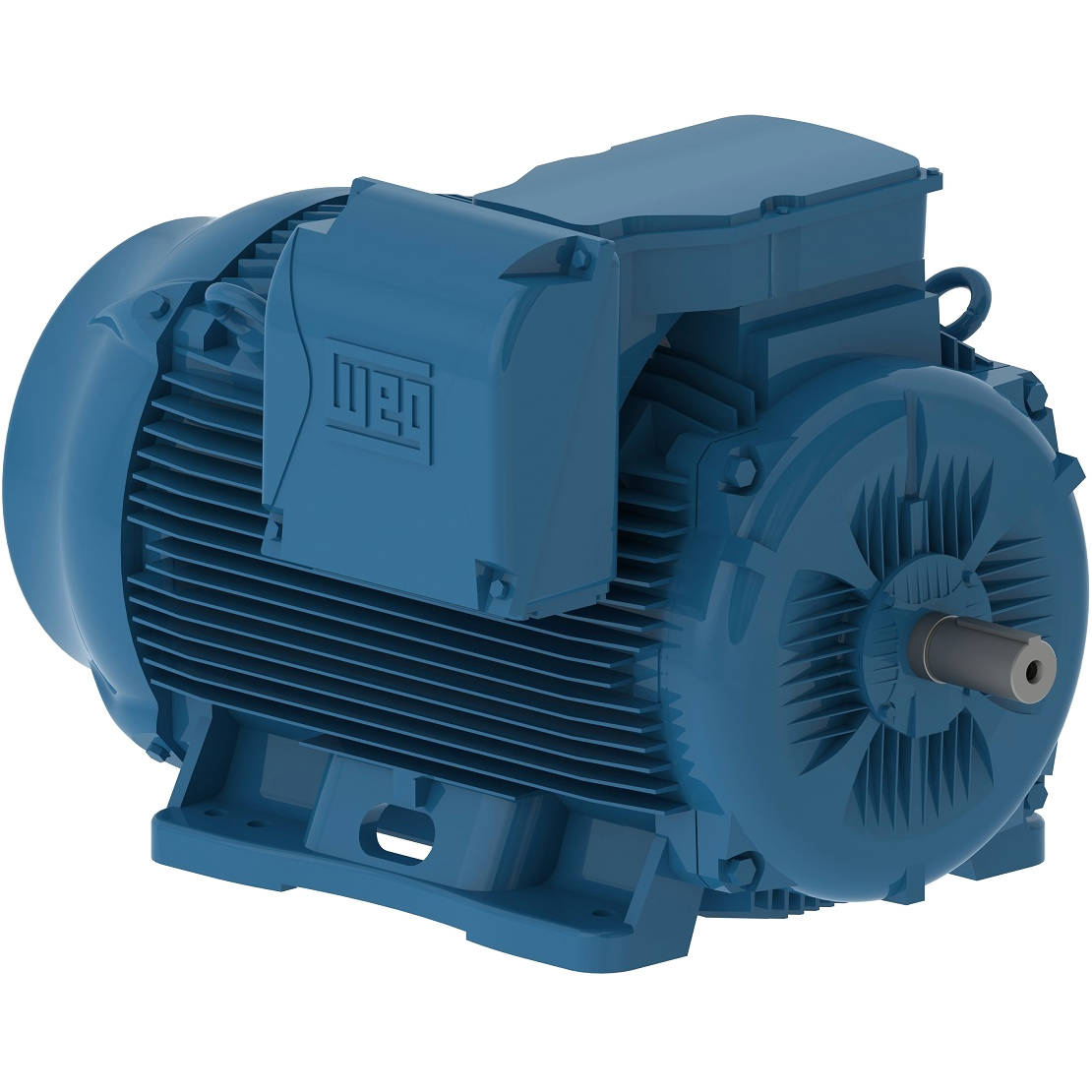

Enlarge Photo

Product ID: 35036ET3G449TS-W22

35036ET3G449TS-W22 WEG 350HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 35036ET3G449TS-W22

Selected accessories will also be added to cart
$38,986.45 / Each
Quantity:
IC411 - TEFC, IP55, 447TS/449TS Frame, 460VAC 60Hz 3 Phase, 11679239, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame447/9TS
Output350 HP (260 kW)
Number of Poles2
Frequency60 Hz
Rated speed3575 rpm
Slip0.69 %
Rated voltage460 V
Rated current385 A
L. R. Amperes3273 A
LRC8.5x(Code J)
No load current105 A
Rated torque514 ft.lb
Locked rotor torque240 %
Breakdown torque250 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)68.1 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?2985 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  96.2  96.2

Power factor

50%75%100%
0.80  0.86  0.88
Frame447/9TS
Output300 HP (220 kW)
Number of Poles2
Frequency50 Hz
Rated speed2972 rpm
Slip0.93 %
Rated voltage380 V
Rated current388 A
L. R. Amperes3026 A
LRC7.8x(Code H)
No load current105 A
Rated torque530 ft.lb
Locked rotor torque229 %
Breakdown torque270 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)68.1 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?2985 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.80  0.85  0.90
Frame447/9TS
Output300 HP (220 kW)
Number of Poles2
Frequency50 Hz
Rated speed2975 rpm
Slip0.83 %
Rated voltage400 V
Rated current375 A
L. R. Amperes3338 A
LRC8.9x(Code J)
No load current110 A
Rated torque530 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)68.1 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?2985 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  96.2

Power factor

50%75%100%
0.78  0.85  0.88
Frame447/9TS
Output300 HP (220 kW)
Number of Poles2
Frequency50 Hz
Rated speed2978 rpm
Slip0.73 %
Rated voltage415 V
Rated current362 A
L. R. Amperes3511 A
LRC9.7x(Code K)
No load current115 A
Rated torque529 ft.lb
Locked rotor torque270 %
Breakdown torque340 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)68.1 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?81.0 dB(A)
Approx. weight?2985 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  96.2  96.2

Power factor

50%75%100%
0.75  0.84  0.88

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Horsepower
350HP
Input Voltage
460VAC
Frame
447TS/449TS
