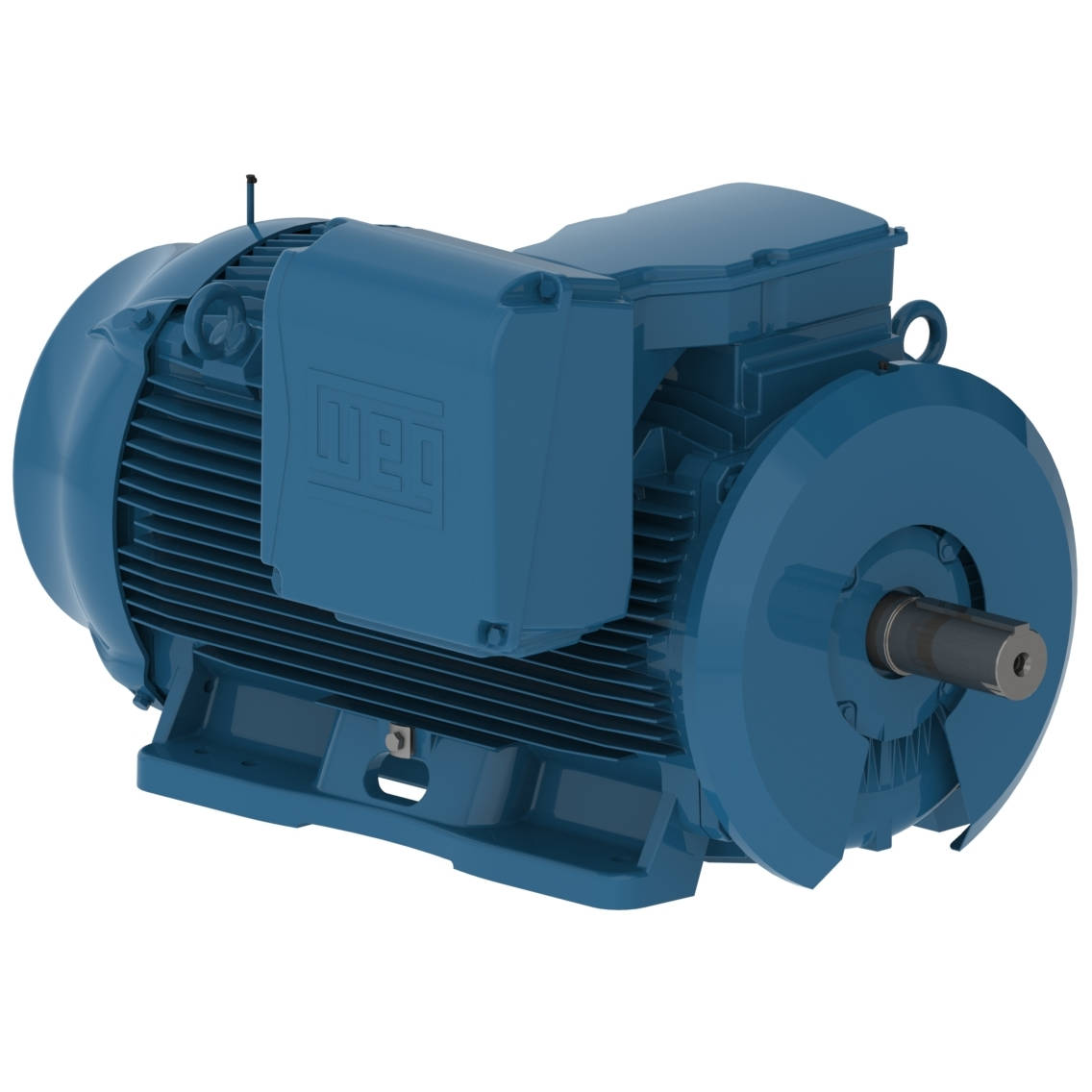

40036ET3G449TS-W22 WEG 400HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 40036ET3G449TS-W22

40036ET3G449TS-W22 WEG 400HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 40036ET3G449TS-W22

Selected accessories will also be added to cart
$39,698.45 / Each
Quantity:
IC411 - TEFC, IP55, L447TS/L449TS Frame, 460VAC 60Hz 3 Phase, 11408289, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

FrameL447/9TS
Output400 HP (300 kW)
Number of Poles2
Frequency60 Hz
Rated speed3583 rpm
Slip0.47 %
Rated voltage460 V
Rated current442 A
L. R. Amperes4066 A
LRC9.2x(Code K)
No load current118 A
Rated torque586 ft.lb
Locked rotor torque260 %
Breakdown torque290 %
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)91.9 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?88.0 dB(A)
Approx. weight?3185 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.80  0.85  0.89
FrameL447/9TS
Output350 HP (260 kW)
Number of Poles2
Frequency50 Hz
Rated speed2982 rpm
Slip0.60 %
Rated voltage380 V
Rated current458 A
L. R. Amperes3618 A
LRC7.9x(Code H)
No load current115 A
Rated torque616 ft.lb
Locked rotor torque250 %
Breakdown torque260 %
Locked rotor time43s (cold) 24s (hot)
Moment of inertia (J)91.9 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?86.0 dB(A)
Approx. weight?3185 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.80  0.85  0.90
FrameL447/9TS
Output350 HP (260 kW)
Number of Poles2
Frequency50 Hz
Rated speed2984 rpm
Slip0.53 %
Rated voltage400 V
Rated current435 A
L. R. Amperes3872 A
LRC8.9x(Code J)
No load current122 A
Rated torque616 ft.lb
Locked rotor torque270 %
Breakdown torque290 %
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)91.9 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?86.0 dB(A)
Approx. weight?3185 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.80  0.85  0.90
FrameL447/9TS
Output350 HP (260 kW)
Number of Poles2
Frequency50 Hz
Rated speed2985 rpm
Slip0.50 %
Rated voltage415 V
Rated current424 A
L. R. Amperes4070 A
LRC9.6x(Code K)
No load current129 A
Rated torque616 ft.lb
Locked rotor torque290 %
Breakdown torque320 %
Locked rotor time37s (cold) 21s (hot)
Moment of inertia (J)91.9 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?86.0 dB(A)
Approx. weight?3185 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.4  95.8  95.8

Power factor

50%75%100%
0.78  0.85  0.89

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemExtended, at Drive end and Non-drive end
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Horsepower
400HP
Input Voltage
460VAC
Frame
L447TS/L449TS
