/Products/Electric Motors/Single Phase/Marathon Single Phase Electric Motors/Oil Burner/4774 Marathon 1/3HP HVAC/R Electric Motor, 3600RPM
Click Image to Expand

Product ID: 4774

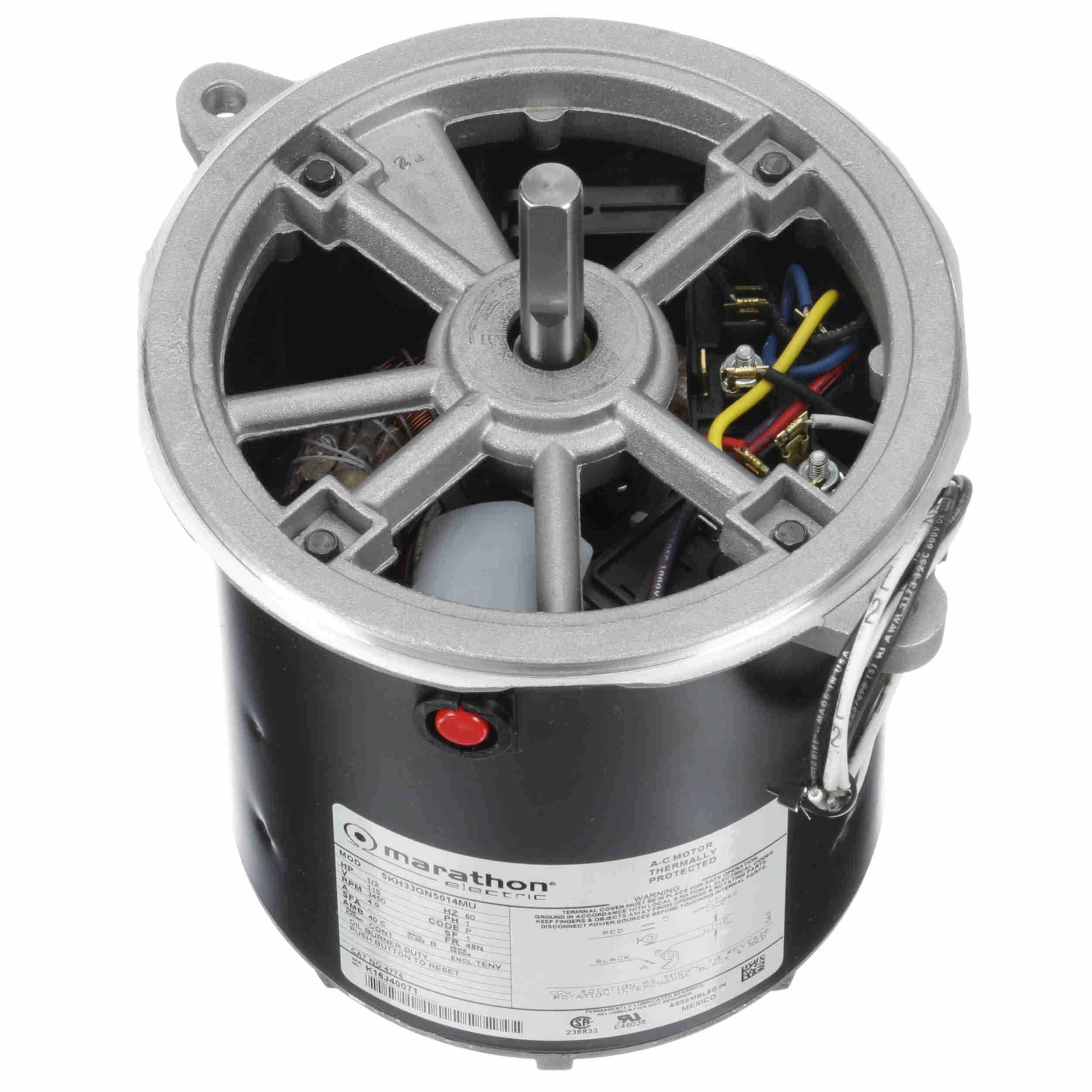

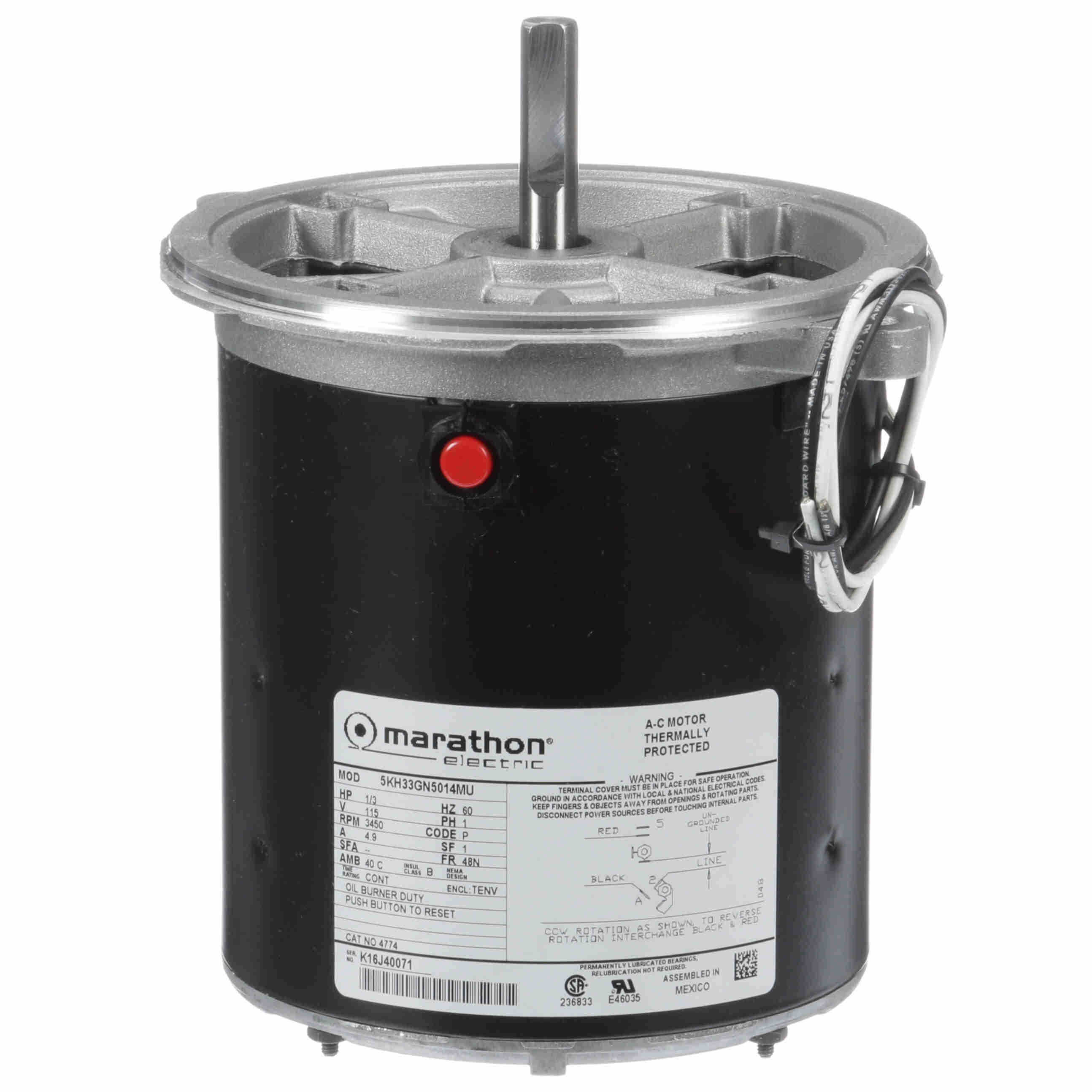

4774 Marathon 1/3HP HVAC/R Electric Motor, 3600RPM

MFG: Marathon Electric
MFG Part Number: 4774

Selected accessories will also be added to cart
$289.97 / Each
Quantity:
TENV, 48N Frame, 115VAC 60Hz Single Phase, 5KH33GN5014U, 1/2" Shaft Diameter, Rolled Steel Frame

Features

  • UL recognized component listing and CSA certification ensures the product is safe for use.
  • Double shielded ball bearings provide longer service life.
  • Continuous or continuous air over duty design allows consistent operation at the rated power(as noted).
  • Various mounting configurations (as noted).

General Specifications

UPC: 722856041463 Weight: 15.00 LB
Packaged Length: 12.63 IN Packaged Width: 6.94 IN
Packaged Height: 7.5 IN HTC: 8501.40.4040
Country of Origin: Mexico

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 115 V
Current: 4.9 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 62.6 % Power Factor: 0
Duty: Continuous Insulation Class: B
KVA Code: P Frame: 48N
Enclosure: Totally Enclosed Non Ventilated Thermal Protection: Manual
Ambient Temperature: 40 °C Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Yes CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Split Phase Starting Method: SM
Poles: 2 Rotation: Clockwise/Counterclockwise
Mounting: Round Motor Orientation: ANY
Drive End Bearing: BALL Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Overall Length: 8.45 in
Frame Length: 5.41 in Shaft Diameter: 0.500 in
Shaft Extension: 1.88 in Thru-bolts Extension: 0 in
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TENV
Horsepower
1/3HP
Frame
48N
