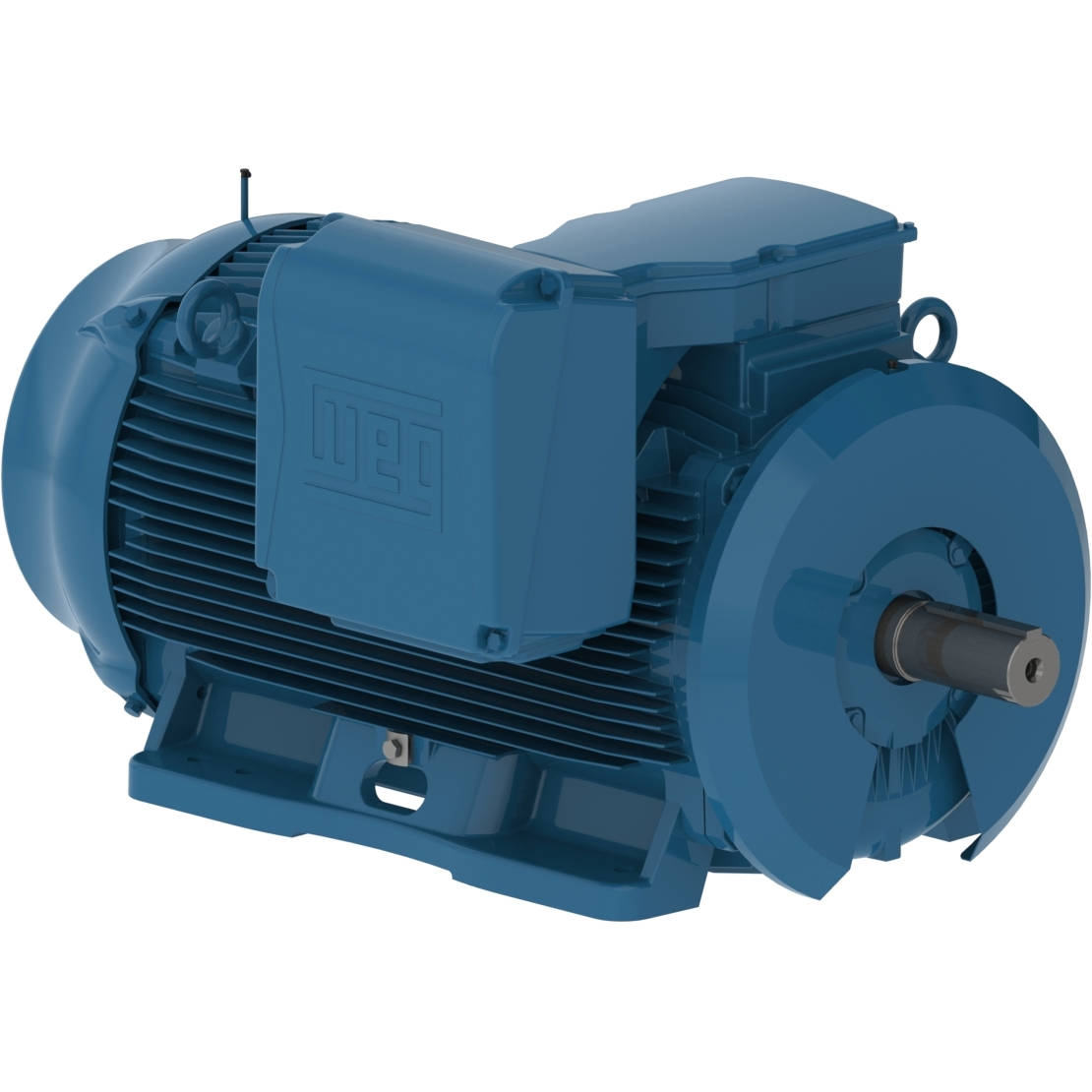

50036ET3G586/7S-W22 WEG 500HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 50036ET3G586/7S-W22

50036ET3G586/7S-W22 WEG 500HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 50036ET3G586/7S-W22

Selected accessories will also be added to cart
$50,111.45 / Each
Quantity:
IC411 - TEFC, IP55, 586TS/587TS Frame, 460VAC 60Hz 3 Phase, 11679203, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame586/7TS
Output500 HP (370 kW)
Number of Poles2
Frequency60 Hz
Rated speed3580 rpm
Slip0.56 %
Rated voltage460 V
Rated current530 A
L. R. Amperes4505 A
LRC8.5x(Code J)
No load current100 A
Rated torque733 ft.lb
Locked rotor torque220 %
Breakdown torque240 %
Locked rotor time70s (cold) 39s (hot)
Moment of inertia (J)143 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?84.0 dB(A)
Approx. weight?4332 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.2  96.2

Power factor

50%75%100%
0.88  0.90  0.91
Frame586/7TS
Output450 HP (330 kW)
Number of Poles2
Frequency50 Hz
Rated speed2980 rpm
Slip0.67 %
Rated voltage380 V
Rated current575 A
L. R. Amperes3450 A
LRC6.0x(Code F)
No load current99.0 A
Rated torque793 ft.lb
Locked rotor torque200 %
Breakdown torque220 %
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)143 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?80.0 dB(A)
Approx. weight?4332 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  95.8  95.8

Power factor

50%75%100%
0.89  0.90  0.91
Frame586/7TS
Output450 HP (330 kW)
Number of Poles2
Frequency50 Hz
Rated speed2980 rpm
Slip0.67 %
Rated voltage400 V
Rated current546 A
L. R. Amperes3658 A
LRC6.7x(Code G)
No load current106 A
Rated torque793 ft.lb
Locked rotor torque220 %
Breakdown torque240 %
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)143 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?80.0 dB(A)
Approx. weight?4332 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.2  95.8

Power factor

50%75%100%
0.88  0.90  0.91
Frame586/7TS
Output450 HP (330 kW)
Number of Poles2
Frequency50 Hz
Rated speed2980 rpm
Slip0.67 %
Rated voltage415 V
Rated current530 A
L. R. Amperes3816 A
LRC7.2x(Code G)
No load current111 A
Rated torque793 ft.lb
Locked rotor torque240 %
Breakdown torque260 %
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)143 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?80.0 dB(A)
Approx. weight?4332 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
95.8  96.2  96.2

Power factor

50%75%100%
0.87  0.89  0.90

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemExtended, at Drive end and Non-drive end
Space Heater Voltage200 - 240 V
Main terminal box hole2xNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C3)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Fan materialPlastic
Screw capCARBON STEEL SAE 1010/20
NDE bearing SealTaconite Labyrinth
DE bearing SealTaconite Labyrinth
Cable Press MaterialSem
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Horsepower
500HP
Input Voltage
460VAC
Frame
586TS/587TS
