/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Rolled Steel, TEFC/C-Face, Footless/.5012ES3H56CFL-S WEG 1/2HP General Purpose Electric Motor, 1200RPM

Product ID: .5012ES3H56CFL-S

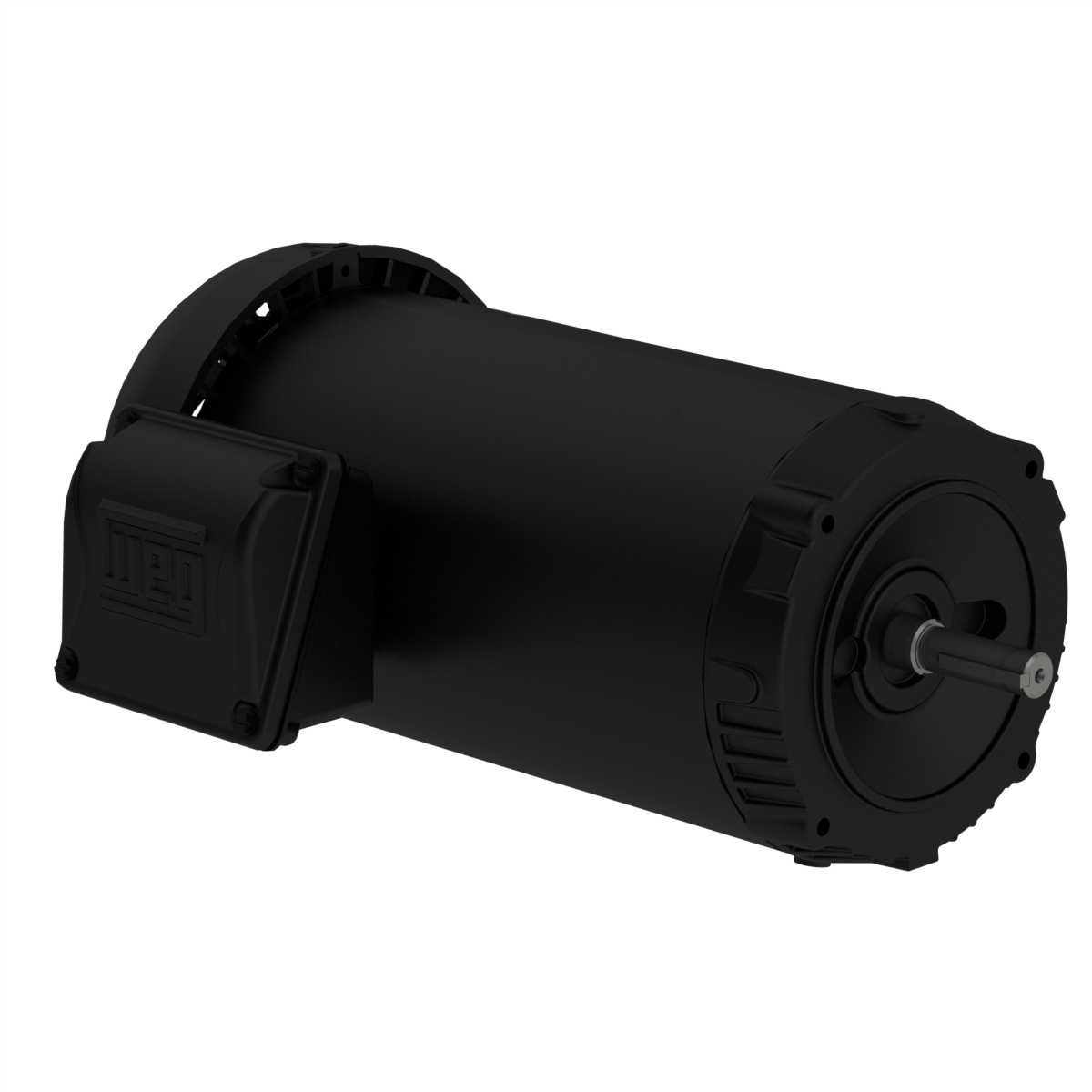

.5012ES3H56CFL-S WEG 1/2HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: .5012ES3H56CFL-S

Selected accessories will also be added to cart

$392.49 / Each

Quantity:

IC411 - TEFC, IP55, 56C Frame, 575VAC 60Hz 3 Phase, 14786363, Rolled Steel, Standard Efficiency, Footless, C-Face

Electric Motors

Frame	56C
Output	0.5 HP (0.37 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1160 rpm
Slip	3.33 %
Rated voltage	575 V
Rated current	0.794 A
L. R. Amperes	4.29 A
LRC	5.4x(Code K)
No load current	0.618 A
Rated torque	2.26 ft.lb
Locked rotor torque	210 %
Breakdown torque	300 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.1065 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	50.0 dB(A)
Approx. weight?	26.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
64.0	70.0	72.0

Power factor

50%	75%	100%
0.44	0.56	0.65

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3

6203ZZC3 Koyo Ball Bearing, Shielded

6203ZZC3 Koyo Ball Bearing, Shielded

6203-ZZC3, 17mm x 40mm x 12mm
Available Stock: 14

MFG: JTEKT Corporation

6203-ZZC3

$6.00 / Each

Type

Electric Motor

Input Phase

3-Phase

Speed

1200RPM

Frame

56C

Enclosure

TEFC

Horsepower

1/2HP

Input Voltage

575VAC
