/Products/Electric Motors/3 Phase Stainless Steel/WEG 3-Phase Stainless Steel Electric Motors/Hydroduty/TEFC, C-Face, Foot Mount/.5012ET3EHD56C WEG 1/2HP Hydroduty Washdown Electric Motor, 1200RPM

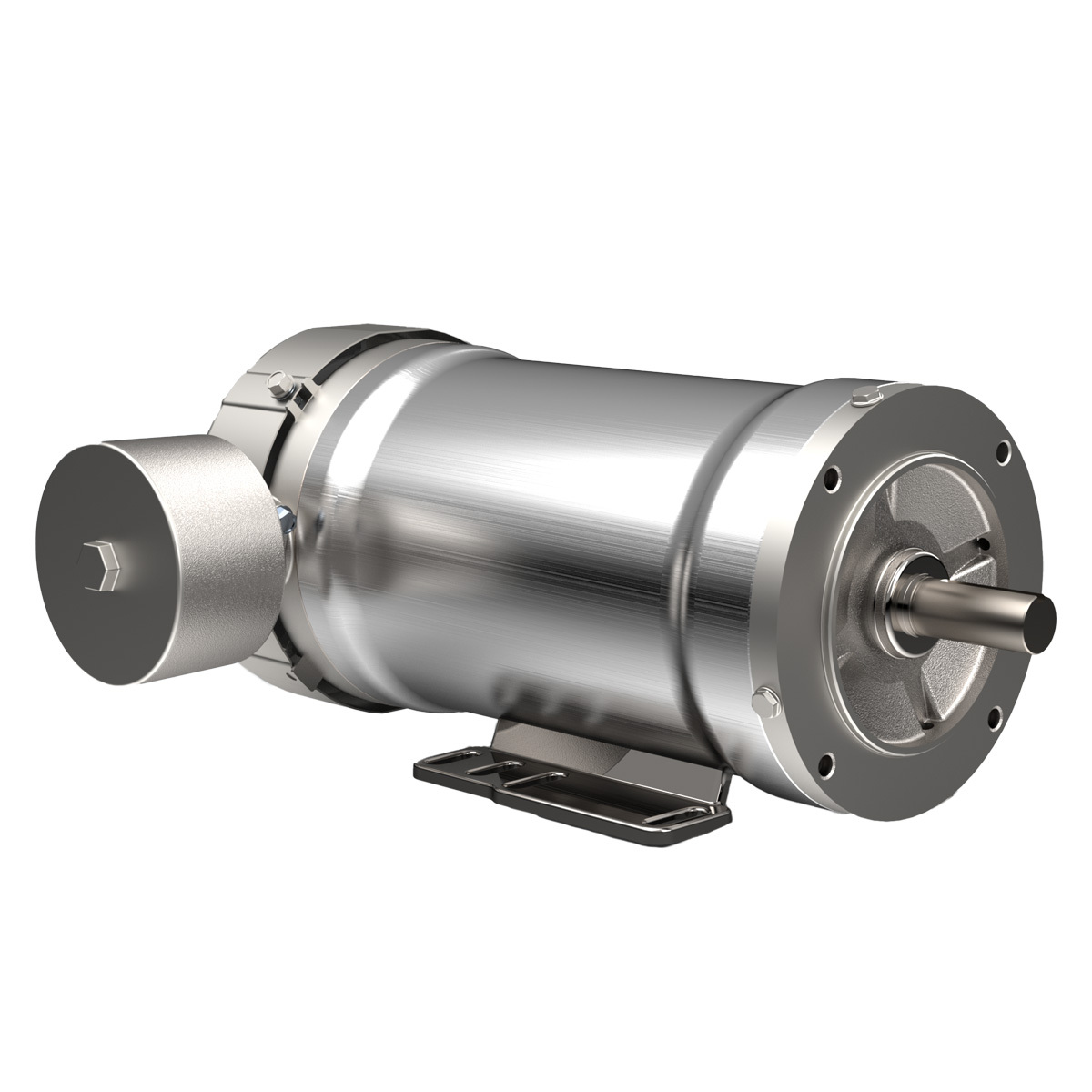

.5012ET3EHD56C WEG 1/2HP Hydroduty Washdown Electric Motor, 1200RPM
Enlarge Photo

Product ID: .5012ET3EHD56C

.5012ET3EHD56C WEG 1/2HP Hydroduty Washdown Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: .5012ET3EHD56C

Selected accessories will also be added to cart
$1,507.66 / Each
Quantity:
TEFC, IP69K, 56C Frame, 208-230/460VAC, 60Hz, 3 Phase
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

StandardNEMA MG-1
Degree of ProtectionIP69K
MountingF-1/B34R(D)
Output rating0.5 HP
EnclosureTEFC
Frequency60 Hz
FlangeC
Frame MaterialStainless steel
EfficiencyStandard Efficiency
Motor ApplicationWASHDOWN
Terminal box¹Left position
Frame56C
Voltage208-230/460V
Synchronous speed1200 rpm
Number of Poles06
DesignB
Insulation ClassF
Duty CycleS1
Rotation¹Both (CW and CCW)


Promo Video

Documents

Type
Electric Motor
Frame
56C
Input Phase
3-Phase
Horsepower
1/2HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
460VAC
Speed
1200RPM
