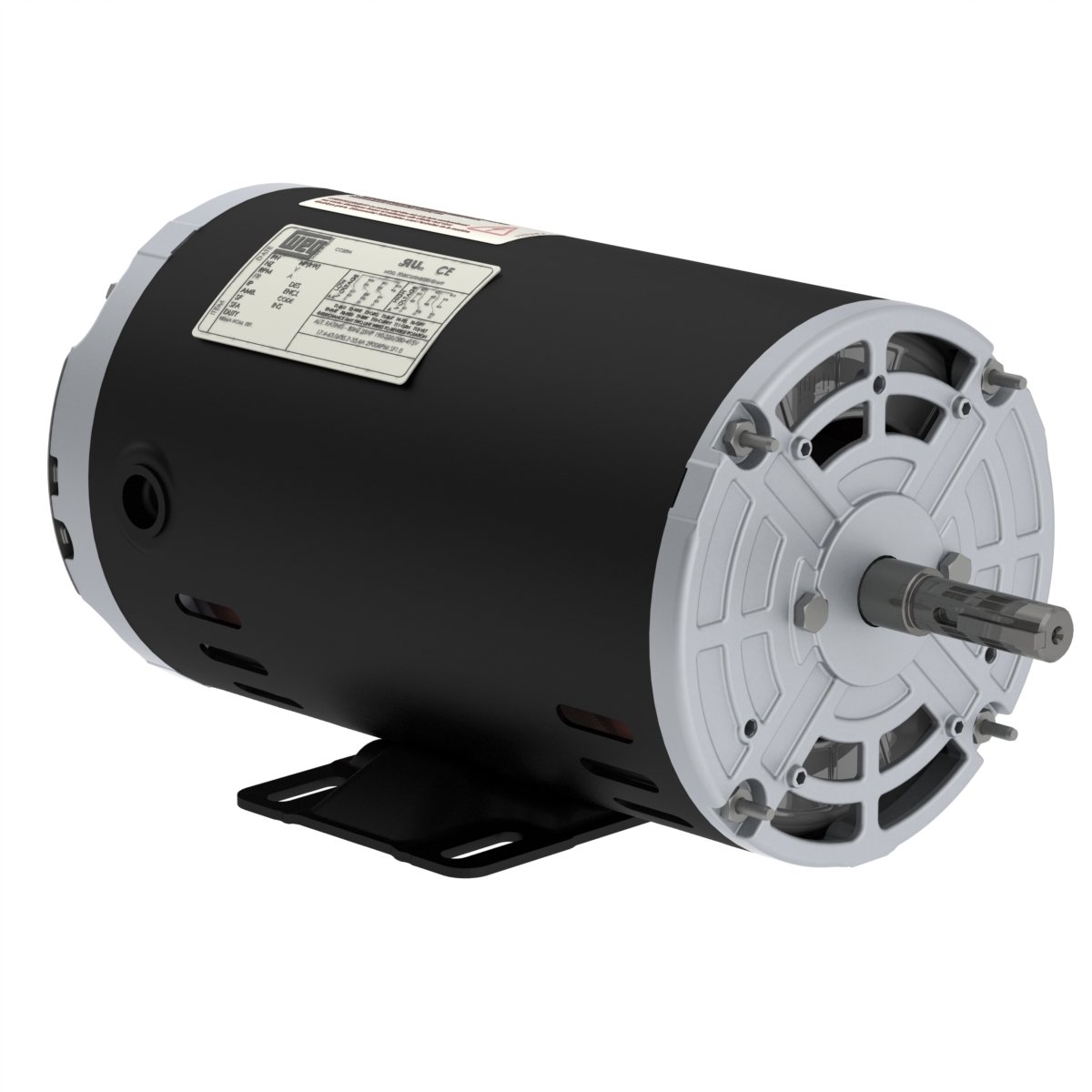

Motor/Control Division

Frame	56
Output	0.5 HP (0.37 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1155 rpm
Slip	3.75 %
Rated voltage	208-230/460 V
Rated current	2.06-1.87/0.934 A
L. R. Amperes	10.5-9.53/4.76 A
LRC	5.1x(Code J)
No load current	1.29-1.50/0.750 A
Rated torque	2.24 ft.lb
Locked rotor torque	200 %
Breakdown torque	260 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	0.0888 sq.ft.lb
Insulation Class	F
Temperature rise	80 K
Service factor	1.25 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	50.0 dB(A)
Approx. weight?	22.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
68.0	74.0	75.3

Power factor

50%	75%	100%
0.43	0.56	0.66

Frame	56
Output	0.5 HP (0.37 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	935 rpm
Slip	6.50 %
Rated voltage	190/380 V
Rated current	2.08/1.04 A
L. R. Amperes	8.32/4.16 A
LRC	4.0x(Code F)
No load current	1.45/0.727 A
Rated torque	2.77 ft.lb
Locked rotor torque	150 %
Breakdown torque	200 %
Locked rotor time	52s (cold) 29s (hot)

Moment of inertia (J)	0.0888 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.25 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	48.0 dB(A)
Approx. weight?	22.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
68.8	72.1	71.3

Power factor

50%	75%	100%
0.52	0.66	0.76

Frame	56
Output	0.5 HP (0.37 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	950 rpm
Slip	5.00 %
Rated voltage	220/415 V
Rated current	1.96/1.04 A
L. R. Amperes	8.83/4.68 A
LRC	4.5x(Code H)
No load current	1.59/0.843 A
Rated torque	2.73 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.0888 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.25 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	48.0 dB(A)
Approx. weight?	22.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
64.9	70.4	71.7

Power factor

50%	75%	100%
0.45	0.59	0.69

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without

6203ZZC3 Koyo Ball Bearing, Shielded

6203-ZZC3, 17mm x 40mm x 12mm
Available Stock: 9

MFG: JTEKT Corporation

6203-ZZC3

$6.00 / Each

Details...

Type

Electric Motor

Input Phase

3-Phase

Speed

1200RPM

Frame

Enclosure

ODP

Horsepower

1/2HP

Input Voltage

208VAC

Input Voltage

208VAC

Input Voltage

230VAC

Input Voltage

230VAC

Input Voltage

460VAC

Input Voltage

460VAC
