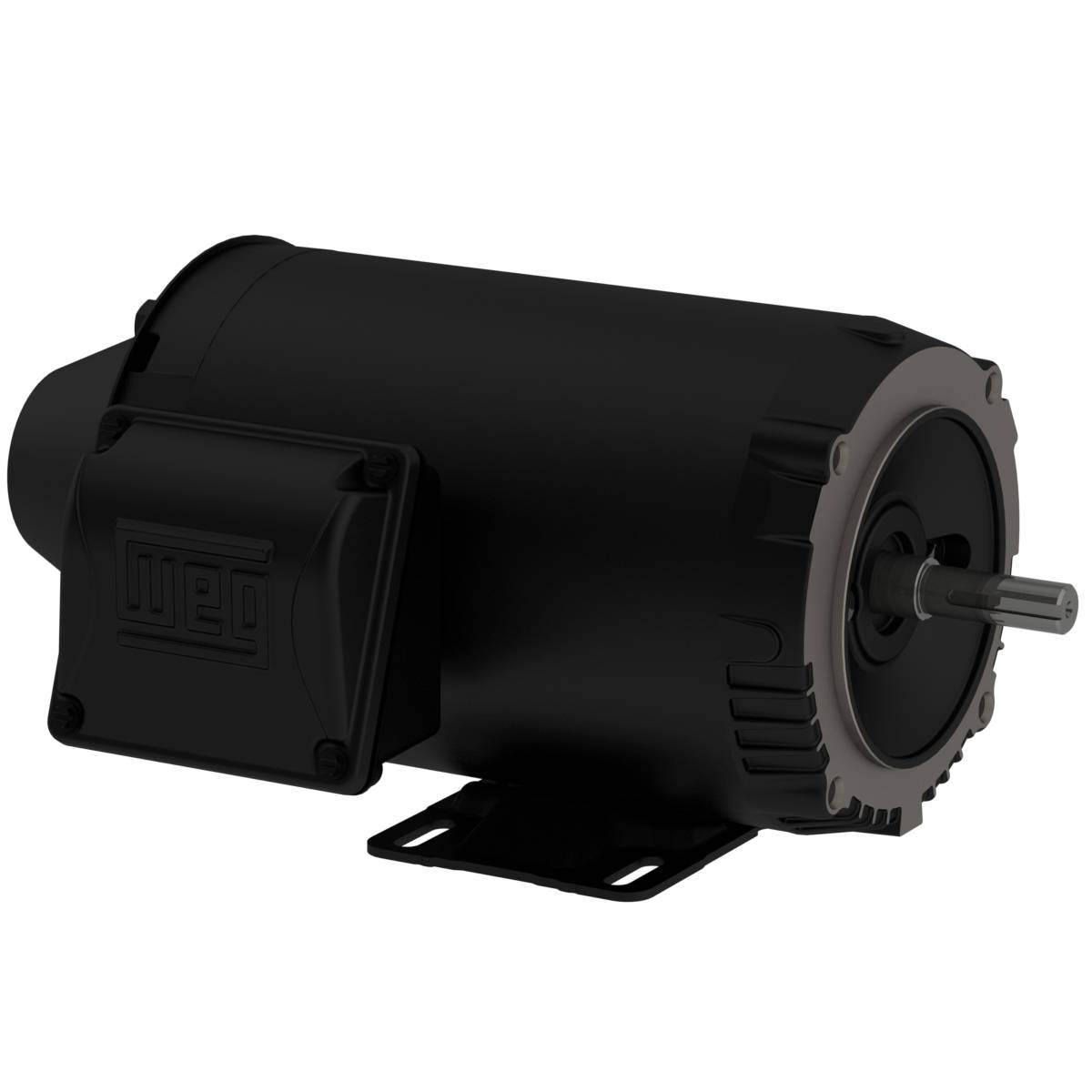

.5018NT3FVD56C-S WEG 1/2HP Vector Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: .5018NT3FVD56C-S

.5018NT3FVD56C-S WEG 1/2HP Vector Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .5018NT3FVD56C-S

Selected accessories will also be added to cart
$533.11 / Each
Quantity:
IC410 - TENV, IP55, 56CZ Frame, 230/460VAC 60Hz 3 Phase, 15754022, Rolled Steel, Premium Efficiency, Foot Mounted, 5/8" Keyed Shaft

Electric Motors

Frame56CZ
Output0.5 HP (0.37 kW)
Number of Poles4
Frequency60 Hz
Rated speed1775 rpm
Slip1.39 %
Rated voltage230/460 V
Rated current1.97/0.986 A
L. R. Amperes17.1/8.58 A
LRC8.7x(Code P)
No load current1.52/0.760 A
Rated torque1.48 ft.lb
Locked rotor torque330 %
Breakdown torque500 %
Locked rotor time34s (cold) 19s (hot)
Insulation ClassH
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TENV
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?27.8 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
74.0  75.5  78.5

Power factor

50%75%100%
0.41  0.50  0.60

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Enclosure
TENV
Horsepower
1/2HP
Input Voltage
230VAC
Input Voltage
460VAC
Frame
56C
