/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Farm Duty - Poultry Fan/.5018ES1BPFC56 WEG 1/2HP Farm Duty Poultry Fan Electric Motor, 1800RPM

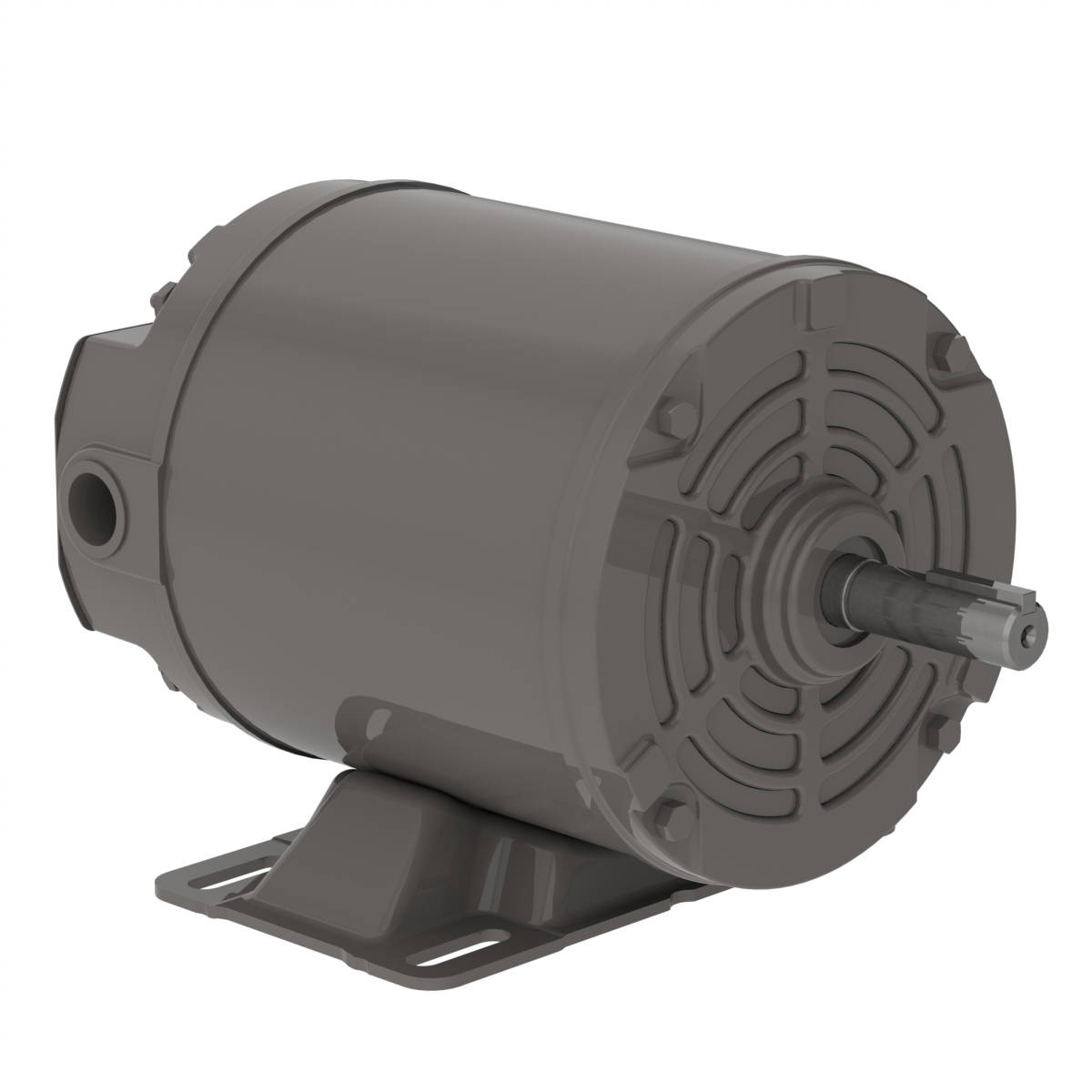

.5018ES1BPFC56 WEG 1/2HP Farm Duty Poultry Fan Electric Motor, 1800RPM
Enlarge Photo

Product ID: .5018ES1BPFC56

.5018ES1BPFC56 WEG 1/2HP Farm Duty Poultry Fan Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .5018ES1BPFC56

Selected accessories will also be added to cart
$299.04 / Each
Quantity:
IC410 - TEAO, C56 Frame, 115/208-230V, 60Hz, Single Phase

Electric Motors

FrameC56
Output0.5 HP (0.37 kW)
Number of Poles4
Frequency60 Hz
Rated speed1710 rpm
Slip5.00 %
Rated voltage115/208-230 V
Rated current8.40/4.10-4.20 A
L. R. Amperes43.7/21.3-21.8 A
LRC5.2x(Code M)
No load current7.00/3.02-3.50 A
Rated torque1.51 ft.lb
Locked rotor torque120 %
Breakdown torque229 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0472 sq.ft.lb
Insulation ClassB
Temperature rise80 K
Service factor1.25 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP44
EnclosureIC410 - TEAO
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³23.5 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
55.061.065.0

Power factor

50%75%100%
0.410.510.60

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7022 207N (ISO 12944 - C3)

Grounding LugsSingle
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Shaft EndKey
Resilient BaseWithout

 Loading...

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6203 ZZ 6202 ZZ
SealingWithout Bearing SealWithout Bearing Seal
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
22 lb46 lb
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Horsepower
1/2HP
Enclosure
TEAO
Frame
C56
Application
Poultry Fan
