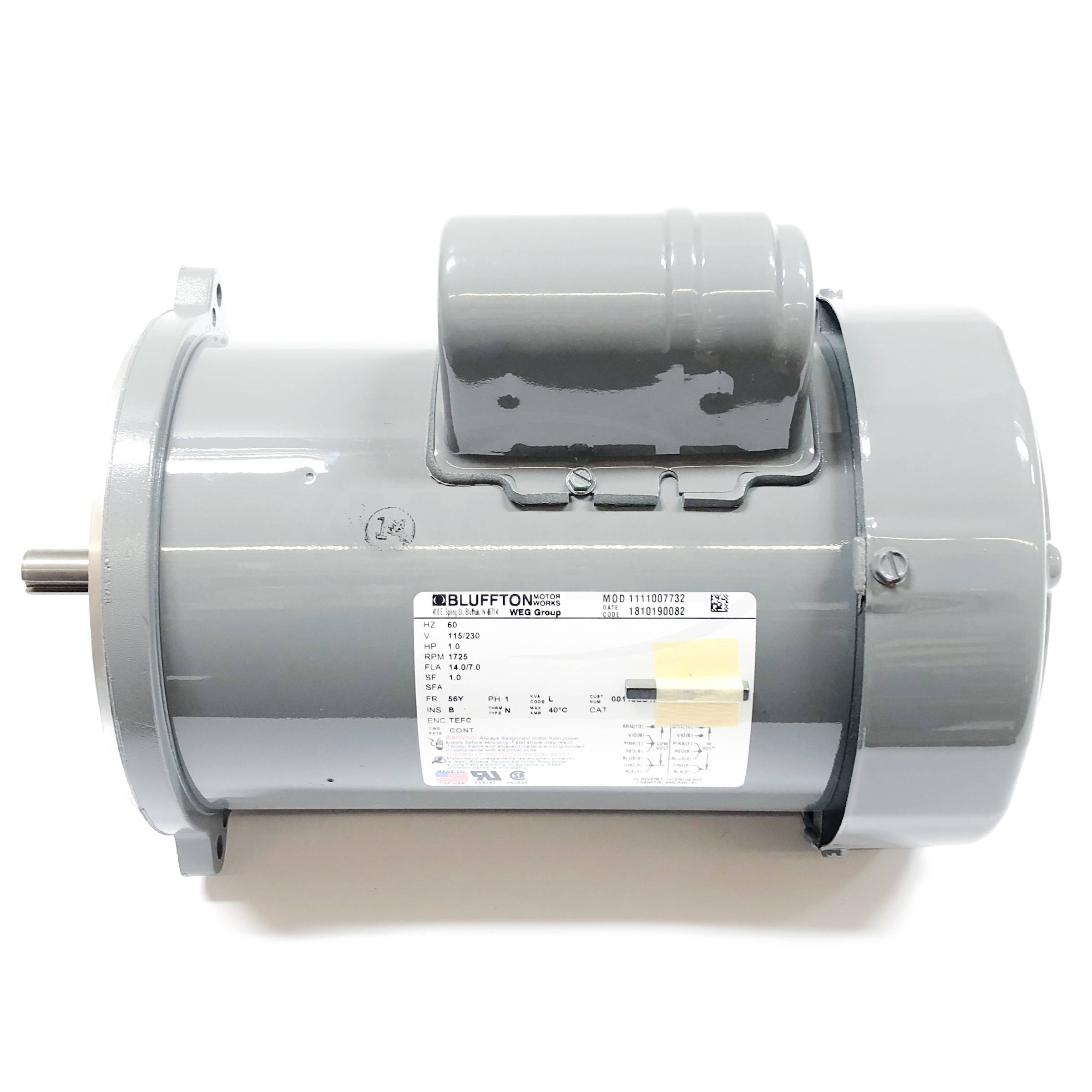

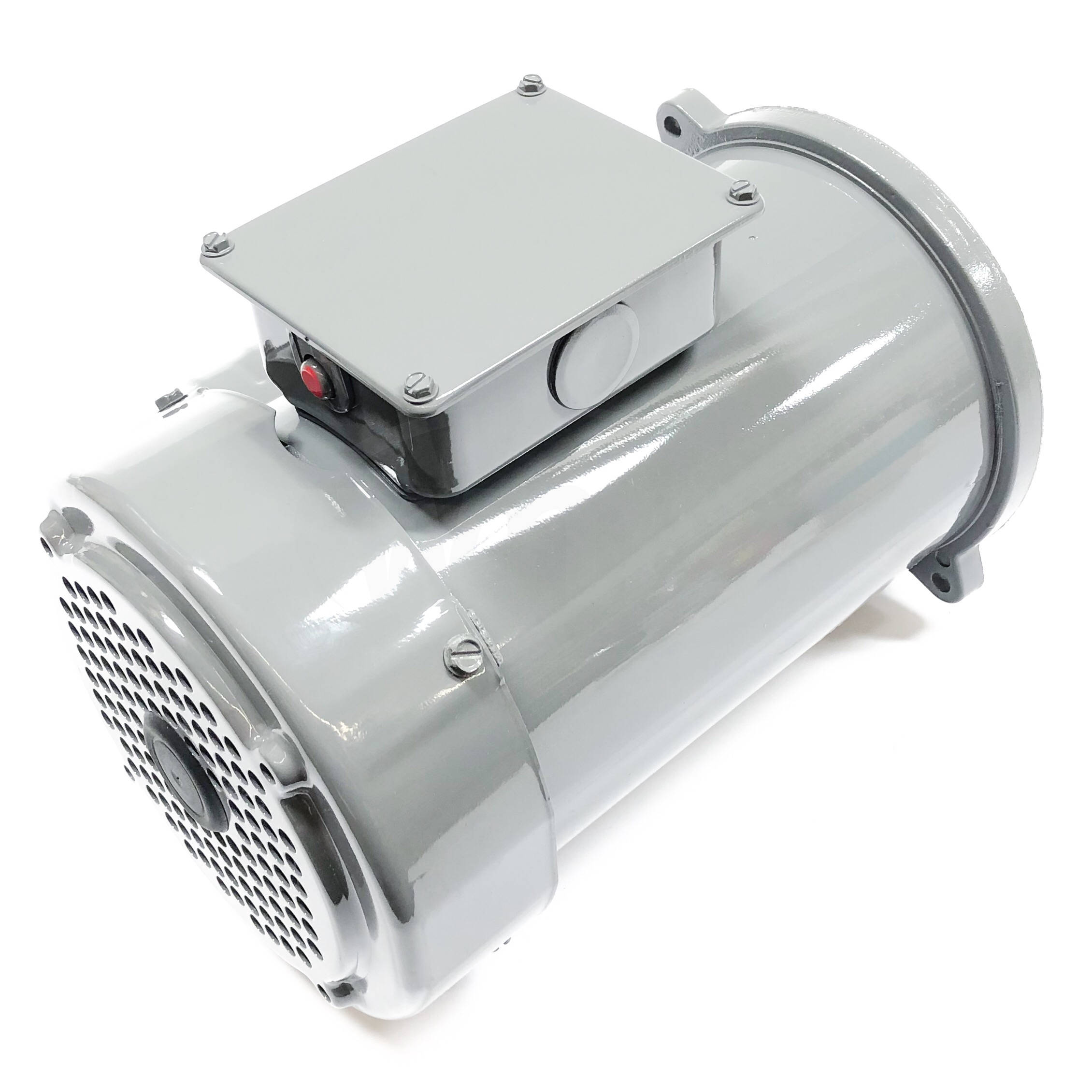

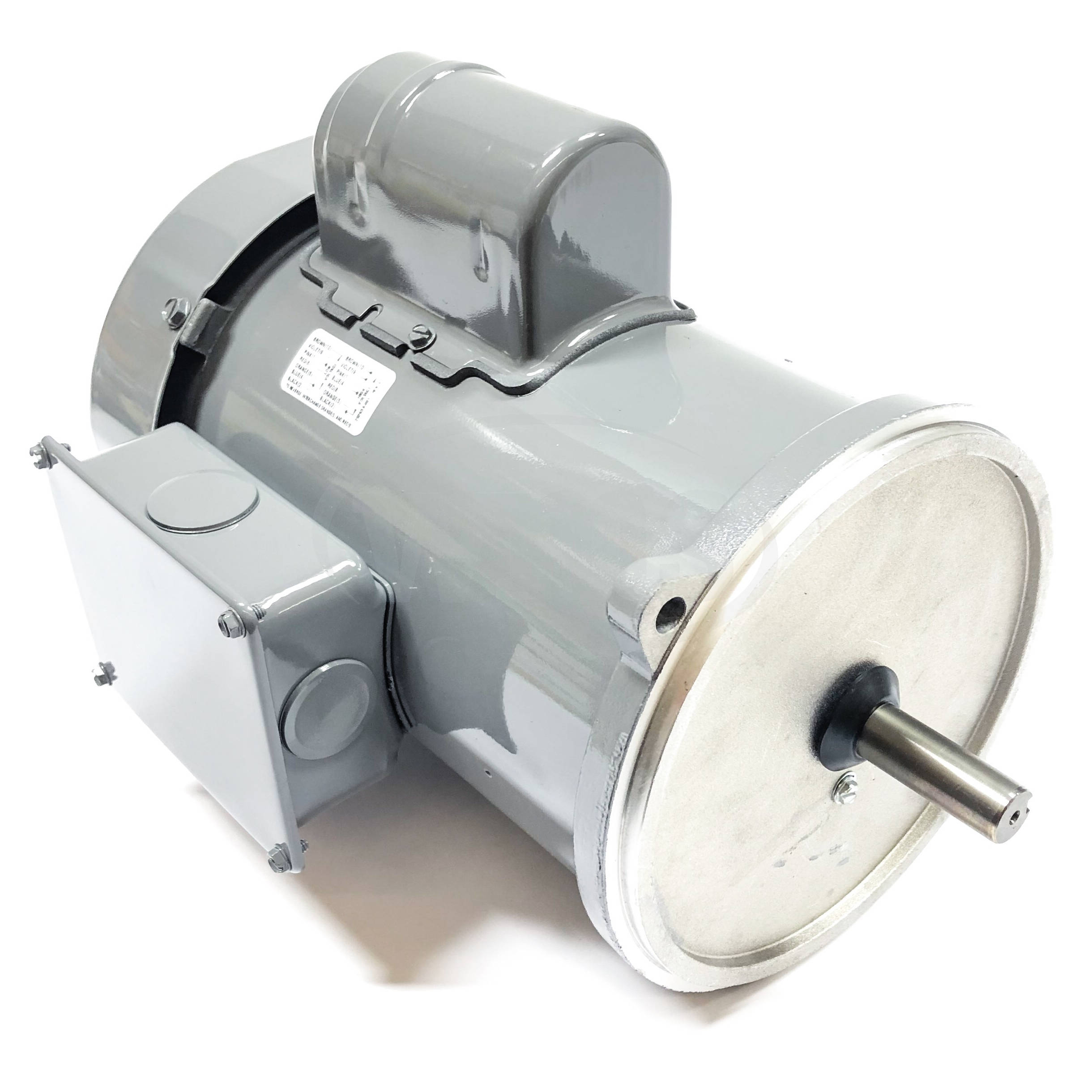

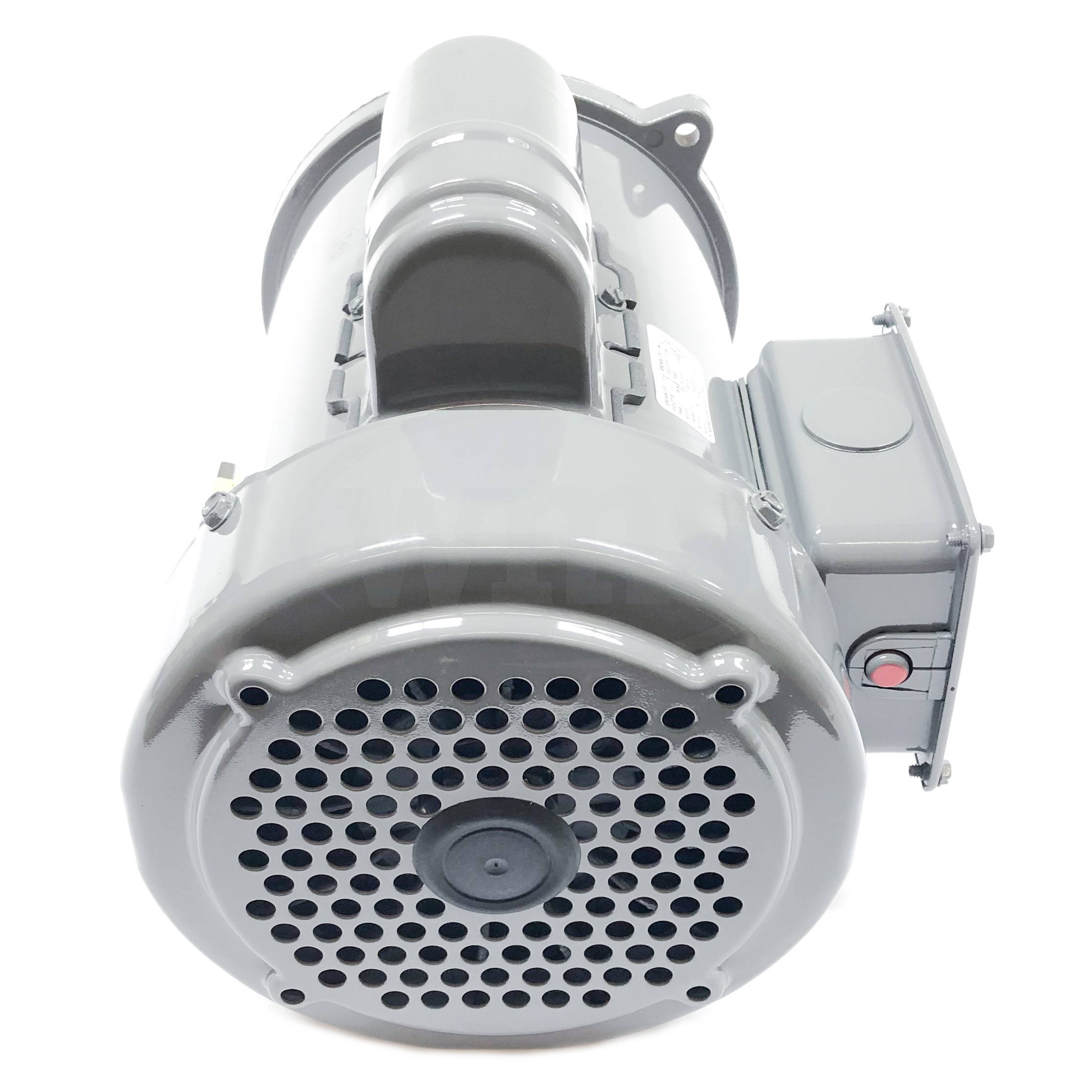

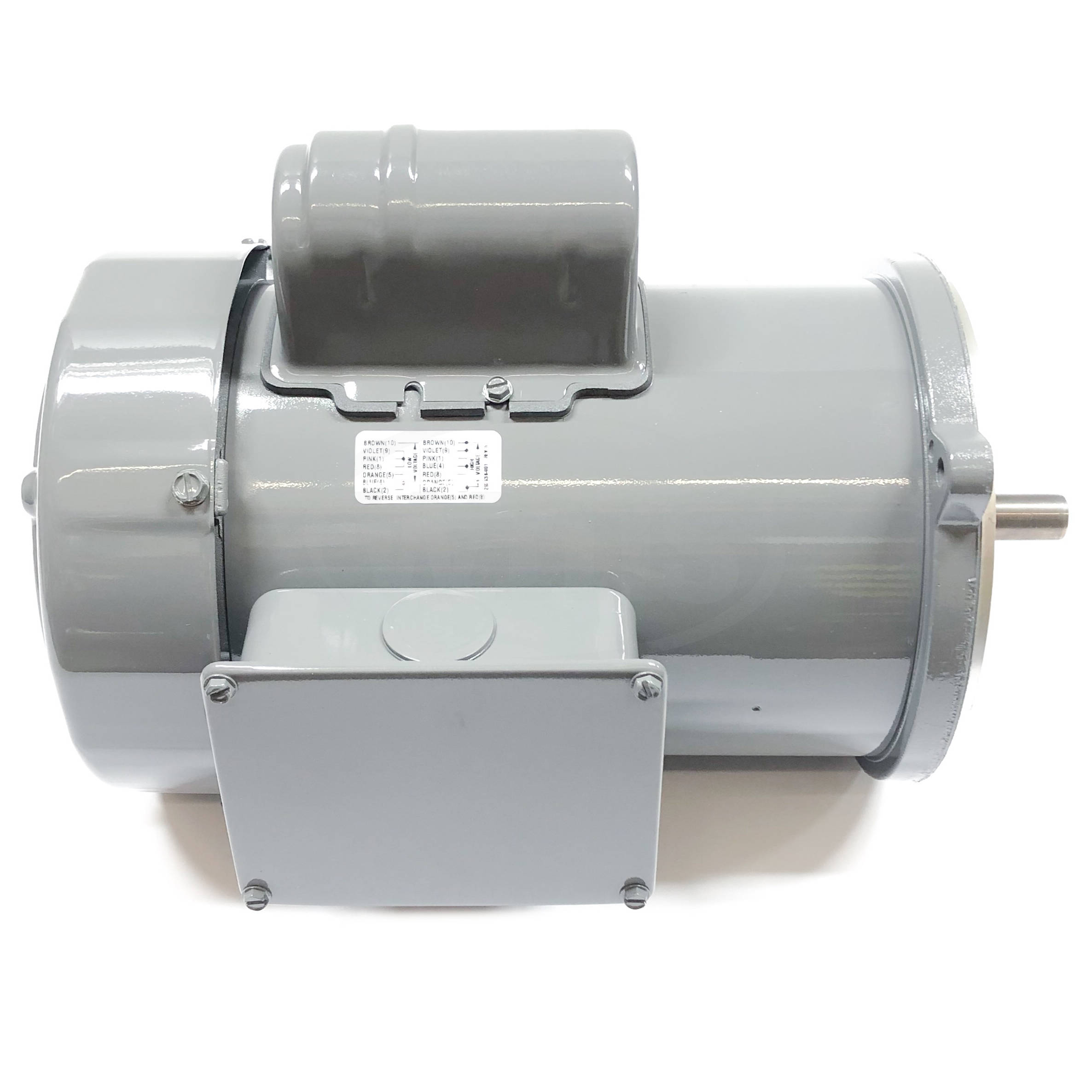

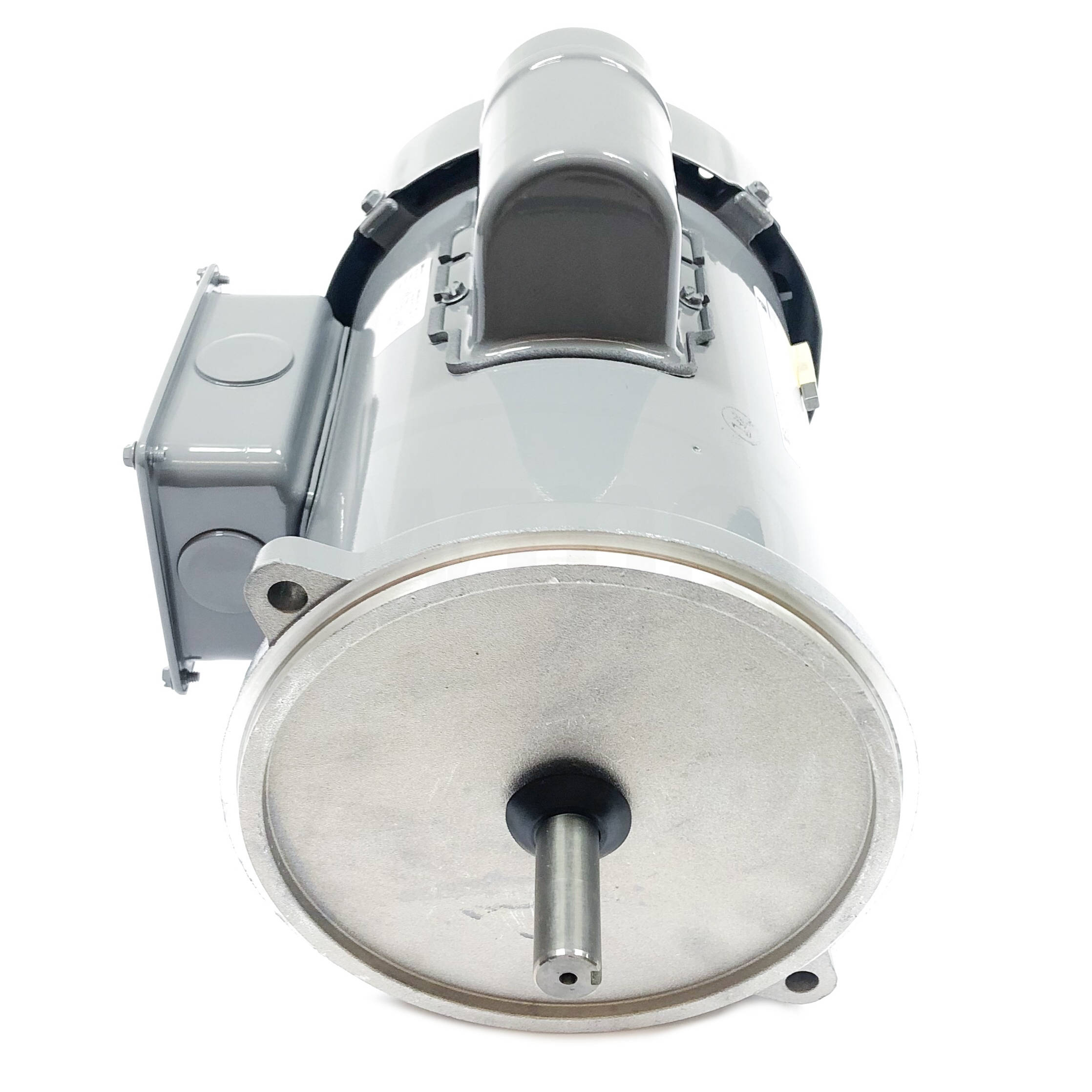

WEG Auger Drive motors are specifically designed for Feed-Drive units requiring a reliable and efficient motor. Provided with mechanical protection of centrifugal switch to prevent damage to the motor in case of overspeed, manual thermal overload protection and two bolts mounting NEMA "N" flange.
Electric Motors
| Frame | B56N |
|---|
| Output | 0.5 HP (0.37 kW) |
|---|
| Number of Poles | 4 |
|---|
| Frequency | 60 Hz |
|---|
| Rated speed | 1750 rpm |
|---|
| Slip | 2.78 % |
|---|
| Rated voltage | 115/230 V |
|---|
| Rated current | 7.44/3.72 A |
|---|
| L. R. Amperes | 43.2/21.6 A |
|---|
| LRC | 5.8x(Code L) |
|---|
| No load current | 6.00/3.00 A |
|---|
| Rated torque | 0.207 kgfm |
|---|
| Locked rotor torque | 290 % |
|---|
| Breakdown torque | 270 % |
|---|
| Locked rotor time | 10s (cold) 6s (hot) |
|---|
| Moment of inertia (J) | 0.0034 kgm² |
|---|
| Insulation Class | B |
|---|
| Service factor | 1.15 |
|---|
| Temperature rise | 80 K |
|---|
| Duty Cycle | Cont.(S1) |
|---|
| Starting Method | Direct On Line |
|---|
| Ambient temperature | -20°C to +40°C |
|---|
| Altitude | 1000 m.a.s.l. |
|---|
| Degree of Protection | IP55 |
|---|
| Enclosure | IC411 - TEFC |
|---|
| Mounting | F-1 |
|---|
| Rotation¹ | Both (CW and CCW) |
|---|
| Noise level² | 55.0 dB(A) |
|---|
| Approx. weight³ | 12.6 kg |
|---|
| | |
|---|
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
