/Products/Electric Motors/3 Phase Stainless Steel/WEG 3-Phase Stainless Steel Electric Motors/Hydroduty/TEFC, C-Face, Foot Mount/.5018ET3EHD56C WEG 1/2HP HydroDuty Washdown Electric Motor, 1800RPM

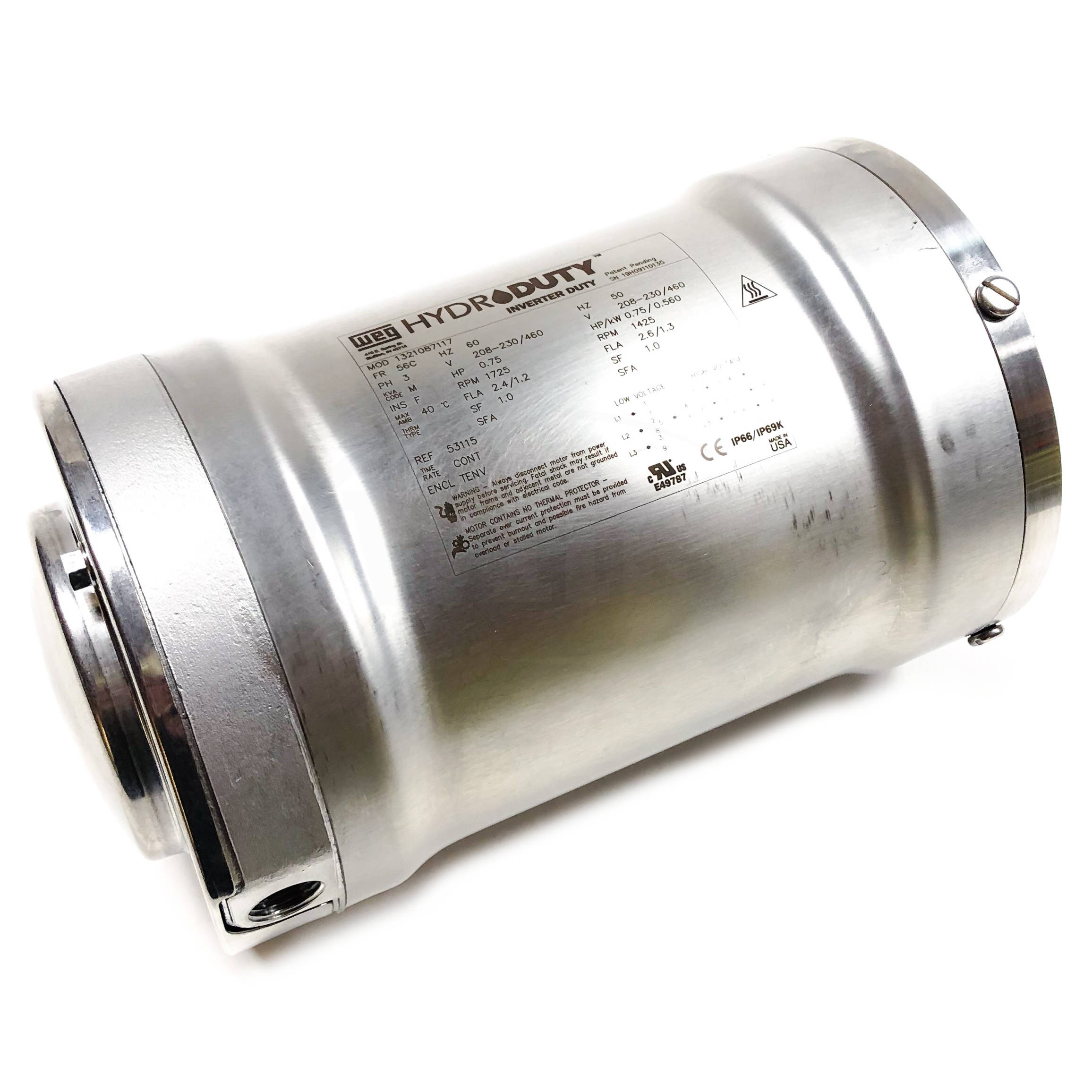

Click Image to Expand

Product ID: .5018ET3EHD56C

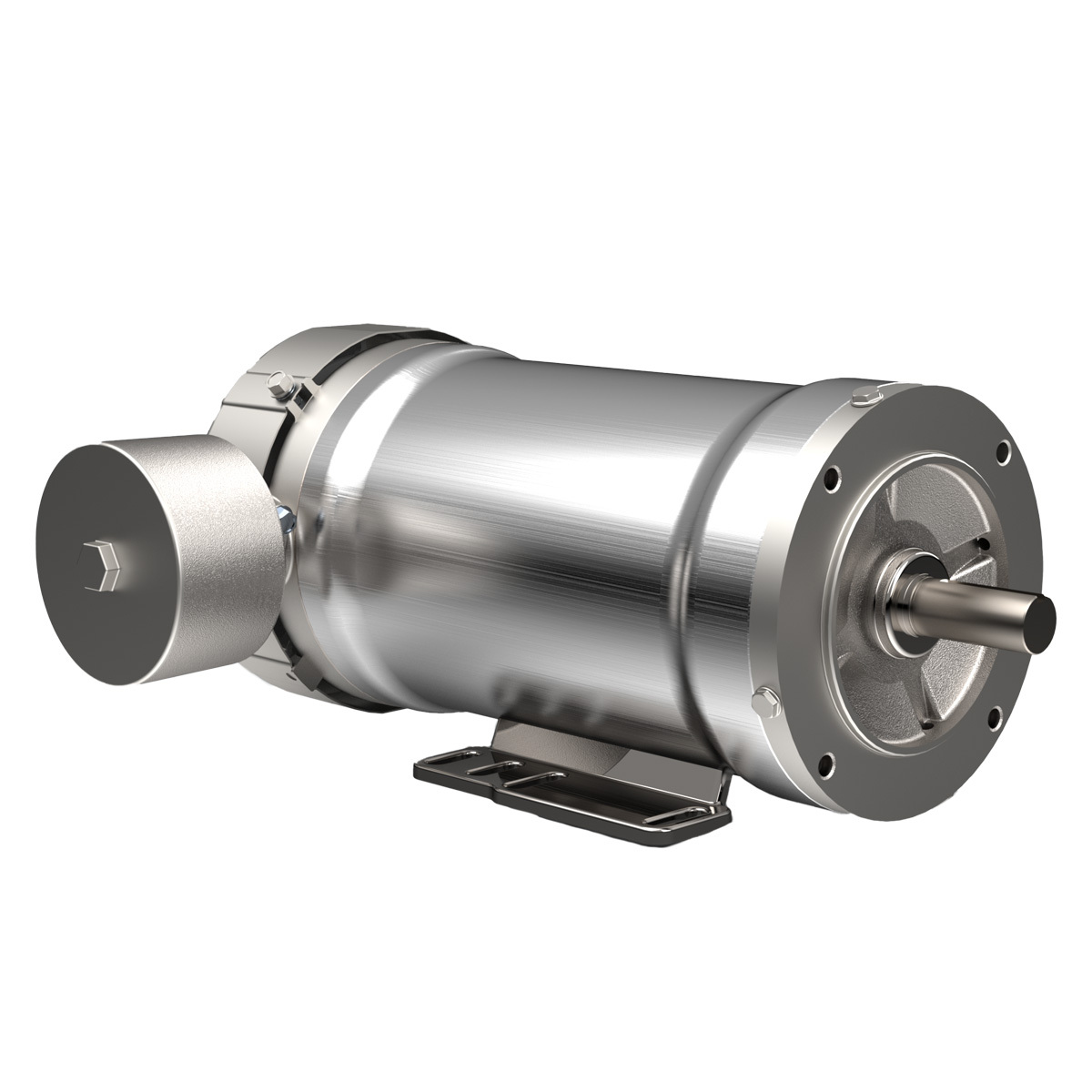

.5018ET3EHD56C WEG 1/2HP HydroDuty Washdown Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .5018ET3EHD56C

Selected accessories will also be added to cart
$1,290.50 / Each
Quantity:
TENV, IP66, 56C Frame, 230/460VAC 3-Phase 50/60Hz, 14763218, C-Face, Footless, Stainless Steel, 5/8" Keyed Shaft, EZ Connect, Standard Efficiency
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

StandardNEMA MG-1
Degree of ProtectionIP66
MountingF-1
FlangeC
Frame MaterialStainless steel
Frequency60/50 Hz
Output rating0.5 HP
EnclosureTENV
Number of poles4P
Motor ApplicationHydroDuty
MountingFootless
EfficiencyStandard Efficiency
Terminal box¹Left position
Frame56C
Voltage230/460 V
Synchronous speed1800/1500 rpm

Promo Video

Documents

Type
Electric Motor
Speed
1800RPM
Frame
56C
Enclosure
TENV
Input Phase
3-Phase
Horsepower
1/2HP
Input Voltage
230VAC
Input Voltage
460VAC
