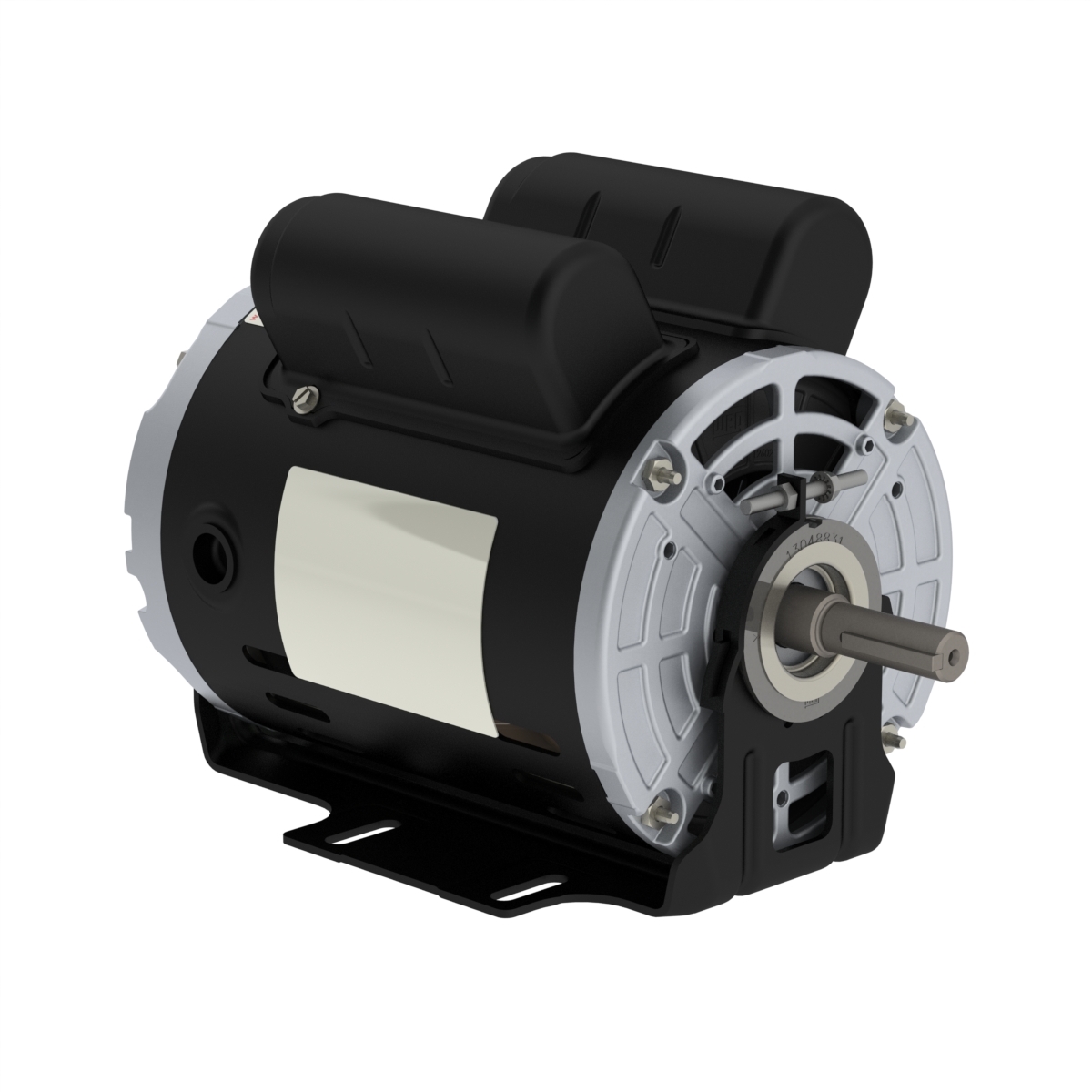

Motor/Control Division

Frame	W56
Output	0.5 HP (0.37 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1730 rpm
Slip	3.89 %
Rated voltage	115/208-230 V
Rated current	4.86/3.04-2.43 A
L. R. Amperes	37.4/23.4-18.7 A
LRC	7.7x(Code K)
No load current	2.70/1.16-1.35 A
Rated torque	1.50 ft.lb
Locked rotor torque	300 %
Breakdown torque	270 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.0520 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.25 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	50.0 dB(A)
Approx. weightÂ³	25.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
65.0	73.0	76.2

Power factor

50%	75%	100%
0.72	0.81	0.87

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without

Loading...

Bearing details

	Drive End	Non Drive End
Bearing type	6203 ZZ	6202 ZZ
Sealing	Sem vedaÃ§Ã£o	Without Bearing Seal
Lubrication interval	-	-
Lubricant amount	-	-
Grease Type	Mobil Polyrex EM

Foundation loads

Max. traction	Max. compression
26 lb	52 lb
