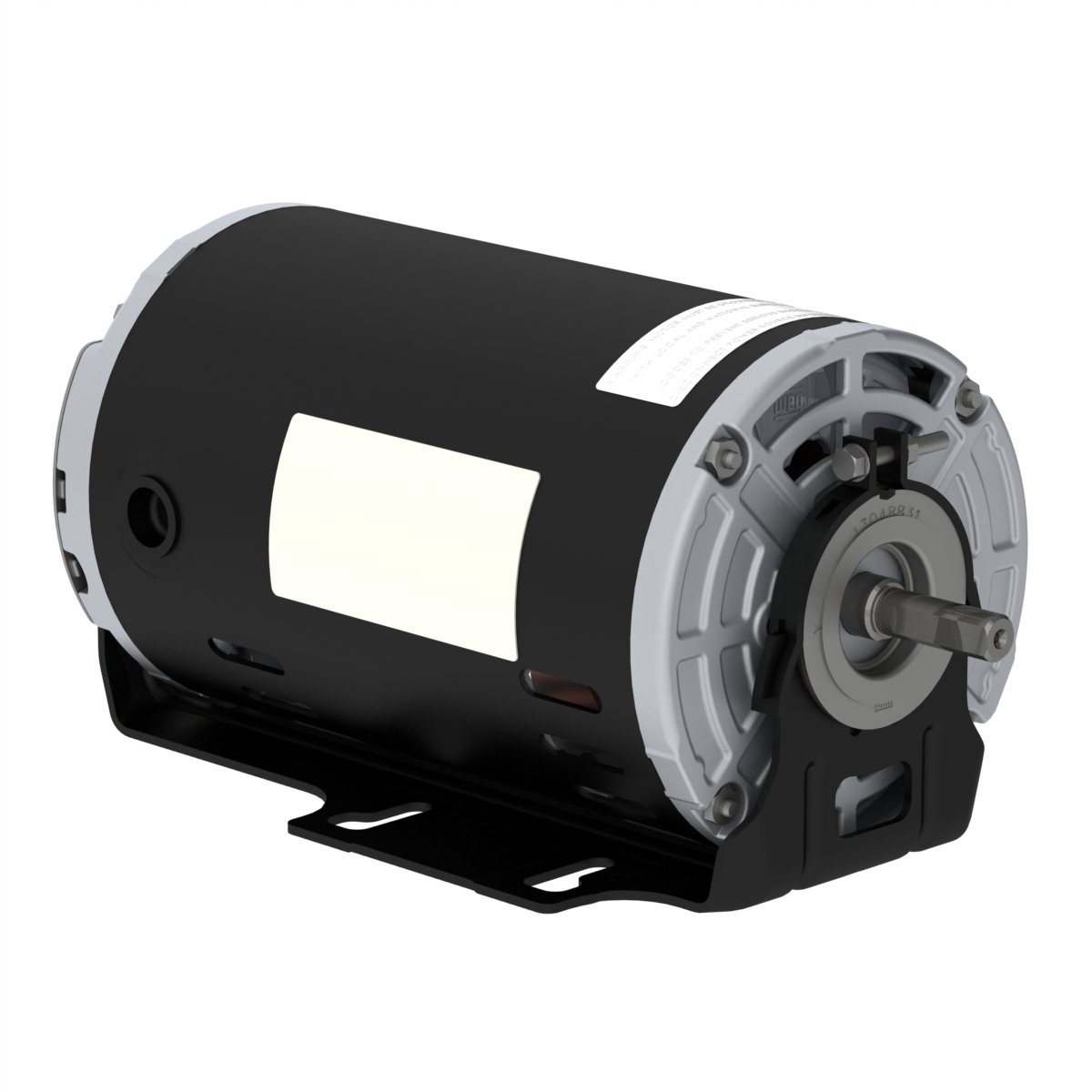

.5018OS1BSPRBO48Z-S WEG 1/2HP Fan & Exhaust Electric Motor, 1800RPM
Enlarge Photo

Product ID: .5018OS1BSPRBO48Z-S

.5018OS1BSPRBO48Z-S WEG 1/2HP Fan & Exhaust Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .5018OS1BSPRBO48Z-S

Selected accessories will also be added to cart
$276.79 / Each
Quantity:
IC01 - ODP, 48Z Frame, 115/208-230VAC Single Phase 60Hz, 13190518, Resilient Base Mount, Rolled Steel, Split Phase, 1/2" Shaft

Electric Motors

Frame48Z
Output0.5 HP (0.37 kW)
Number of Poles4
Frequency60 Hz
Rated speed1715 rpm
Slip4.72 %
Rated voltage115/208-230 V
Rated current7.24/3.80-3.62 A
L. R. Amperes47.1/24.7-23.5 A
LRC6.5x(Code M)
No load current5.80/2.50-2.90 A
Rated torque1.51 ft.lb
Locked rotor torque130 %
Breakdown torque220 %
Locked rotor time10s (cold) 6s (hot)
DesignO
Insulation ClassF
Temperature rise80 K
Service factor1.25 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³24.6 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
52.060.063.5

Power factor

50%75%100%
0.500.600.70

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodNot Balanced
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
1/2HP
Frame
48Z
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
