/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Air Handling/.5018OS1DEC56 WEG 1/2HP Fan & Exhaust Electric Motor, 1800RPM

Product ID: .5018OS1DEC56

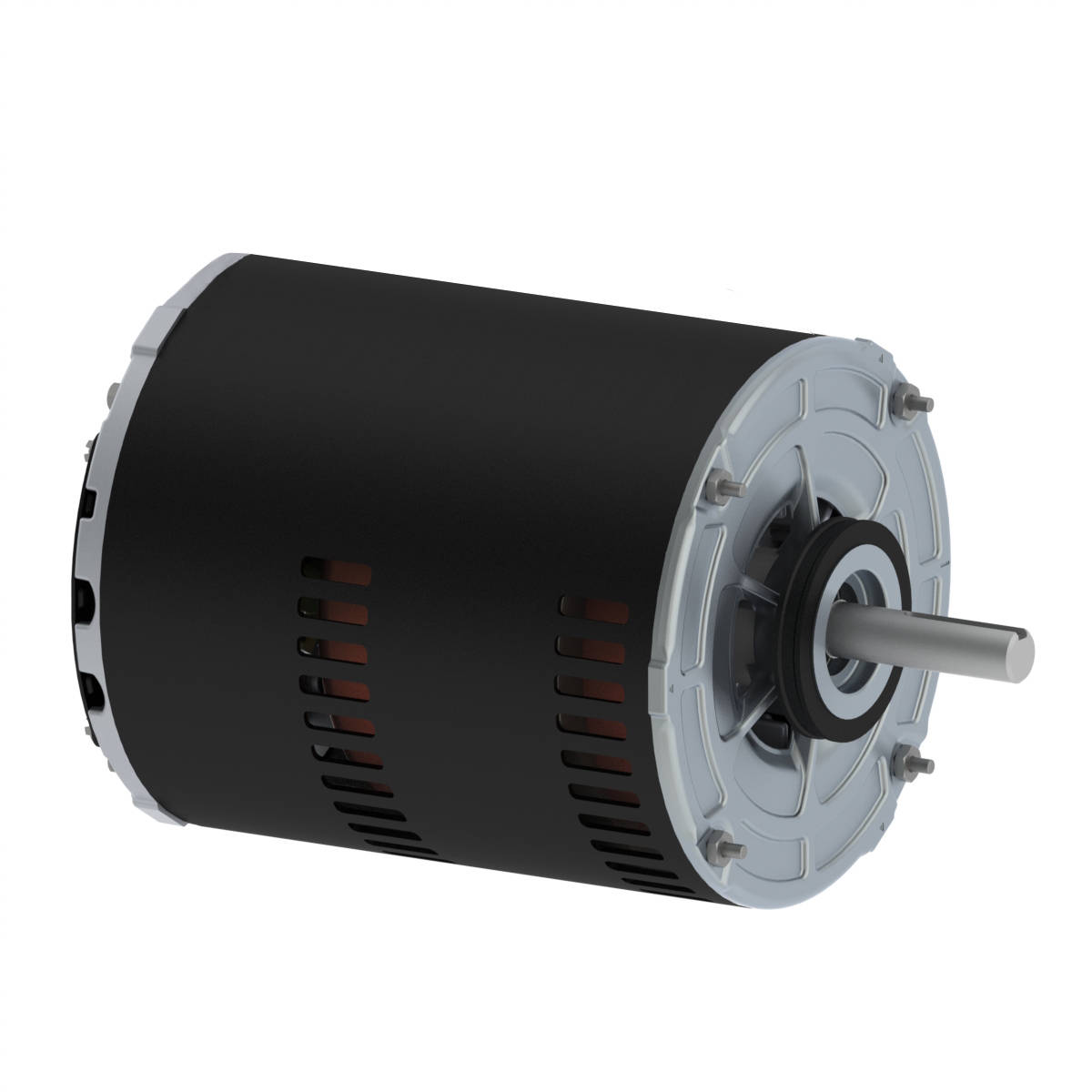

.5018OS1DEC56 WEG 1/2HP Fan & Exhaust Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .5018OS1DEC56

Selected accessories will also be added to cart

$147.74 / Each

Quantity:

IC01 - ODP, IP21, E56 Frame, 240VAC 60Hz Single Phase, 12231476, Rolled Steel Frame, Footless, 1/2" Flatted Shaft

Details
Specs

Electric Motors

Frame	E56
Output	0.37 kW (0.5 HP)
Number of Poles	4
Frequency	60 Hz
Rated speed	1725 rpm
Slip	4.17 %
Rated voltage	240 V
Rated current	4.80 A
L. R. Amperes	30.2 A
LRC	6.3x(Code R)
No load current	4.30 A
Rated torque	1.51 ft.lb
Locked rotor torque	150 %
Breakdown torque	240 %

Locked rotor time	10s (cold) 6s (hot)
Moment of inertia (J)	0.0712 sq.ft.lb
Insulation Class	B
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Ã‚Â°C to +40Ã‚Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP21
Enclosure	IC01 - ODP
Mounting	F-1
RotationÃ‚Â¹	CW
Approx. weightÃ‚Â³	19.8 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
40.9	49.7	54.0

Power factor

50%	75%	100%
0.46	0.55	0.64

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Winding thermal protection	Thermostat - 2 wires 1 per phase 130Ã‚Â°C
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector

Type

Electric Motor

Input Phase

Single Phase

Speed

1800RPM

Enclosure

ODP

Horsepower

1/2HP

Frame

E56

Input Voltage

240VAC
