/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Air Handling/.5036ES1BOLW56-S WEG 1/2HP Air Handling Electric Motor, 3600RPM

Product ID: .5036ES1BOLW56-S

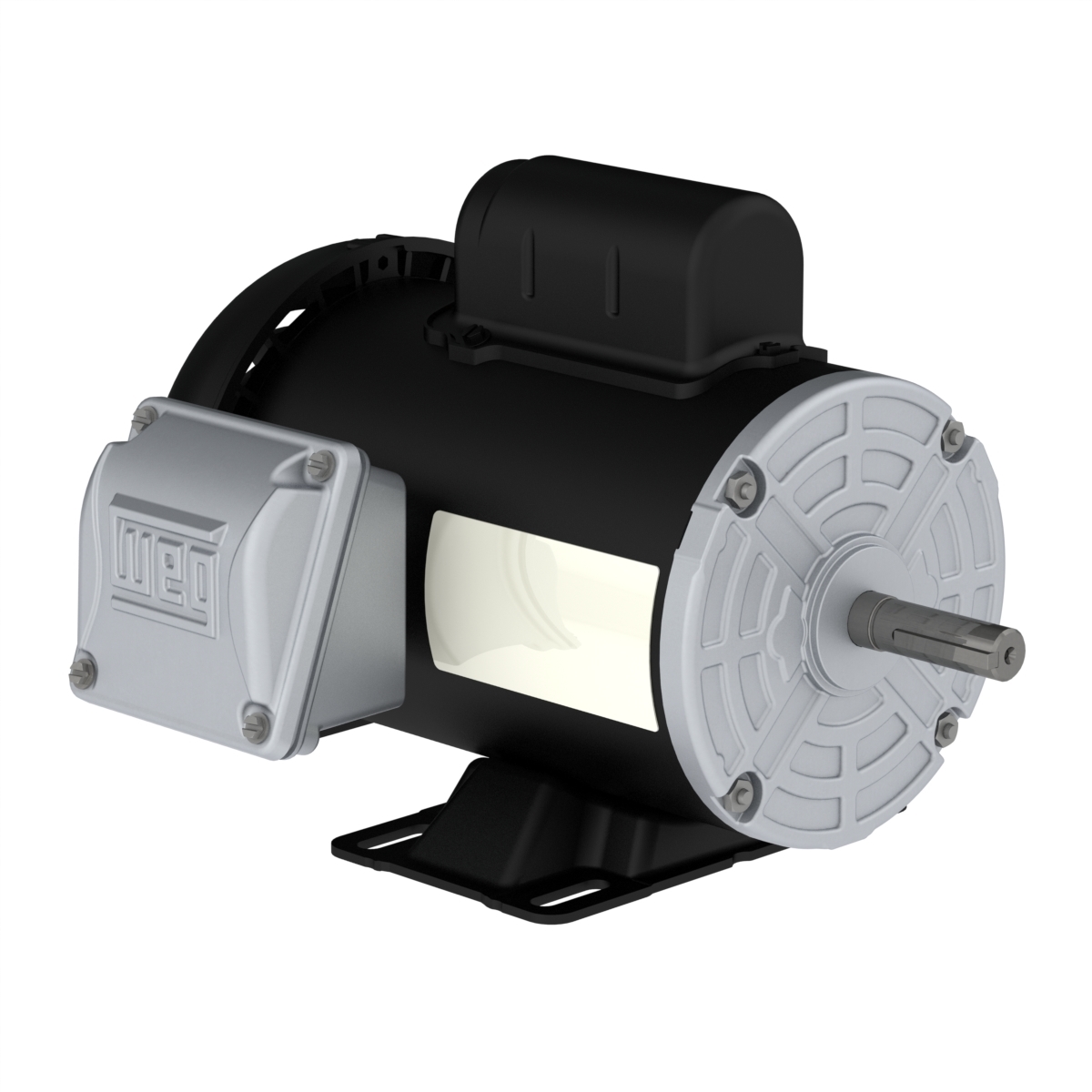

.5036ES1BOLW56-S WEG 1/2HP Air Handling Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .5036ES1BOLW56-S

Selected accessories will also be added to cart

$281.24 / Each

Quantity:

IC411 - TEFC, IP55, W56 Frame, 115/208-230VAC 60Hz Single Phase, 14419292, Rolled Steel, Foot Mounted, 14419292, 5/8" Keyed Shaft, F-1/B3R(D)

Electric Motors

Frame	W56
Output	0.5 HP (0.37 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	115/208-230 V
Rated current	7.00/3.87-3.50 A
L. R. Amperes	56.0/31.0-28.0 A
LRC	8.0x(Code P)
No load current	4.80/2.07-2.40 A
Rated torque	0.750 ft.lb
Locked rotor torque	290 %
Breakdown torque	300 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.0233 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Ã‚Â°C to +40Ã‚Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÃ‚Â¹	Both (CW and CCW)
Noise levelÃ‚Â²	66.0 dB(A)
Approx. weightÃ‚Â³	21.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
50.0	58.0	60.0

Power factor

50%	75%	100%
0.59	0.69	0.76

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Automatic

6203ZZC3 Koyo Ball Bearing, Shielded

6203ZZC3 Koyo Ball Bearing, Shielded

6203-ZZC3, 17mm x 40mm x 12mm
Available Stock: 15

MFG: JTEKT Corporation

6203-ZZC3

$6.00 / Each

Type

Electric Motor

Input Phase

Single Phase

Speed

3600RPM

Enclosure

TEFC

Horsepower

1/2HP

Input Voltage

230VAC

Input Voltage

208VAC

Input Voltage

115VAC

Frame

W56
