/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Compressor Duty/.5036OS1BCDW56-S WEG 1/2HP Compressor Duty Electric Motor, 3600RPM

Click Image to Expand

Previous Next

Product ID: .5036OS1BCDW56-S

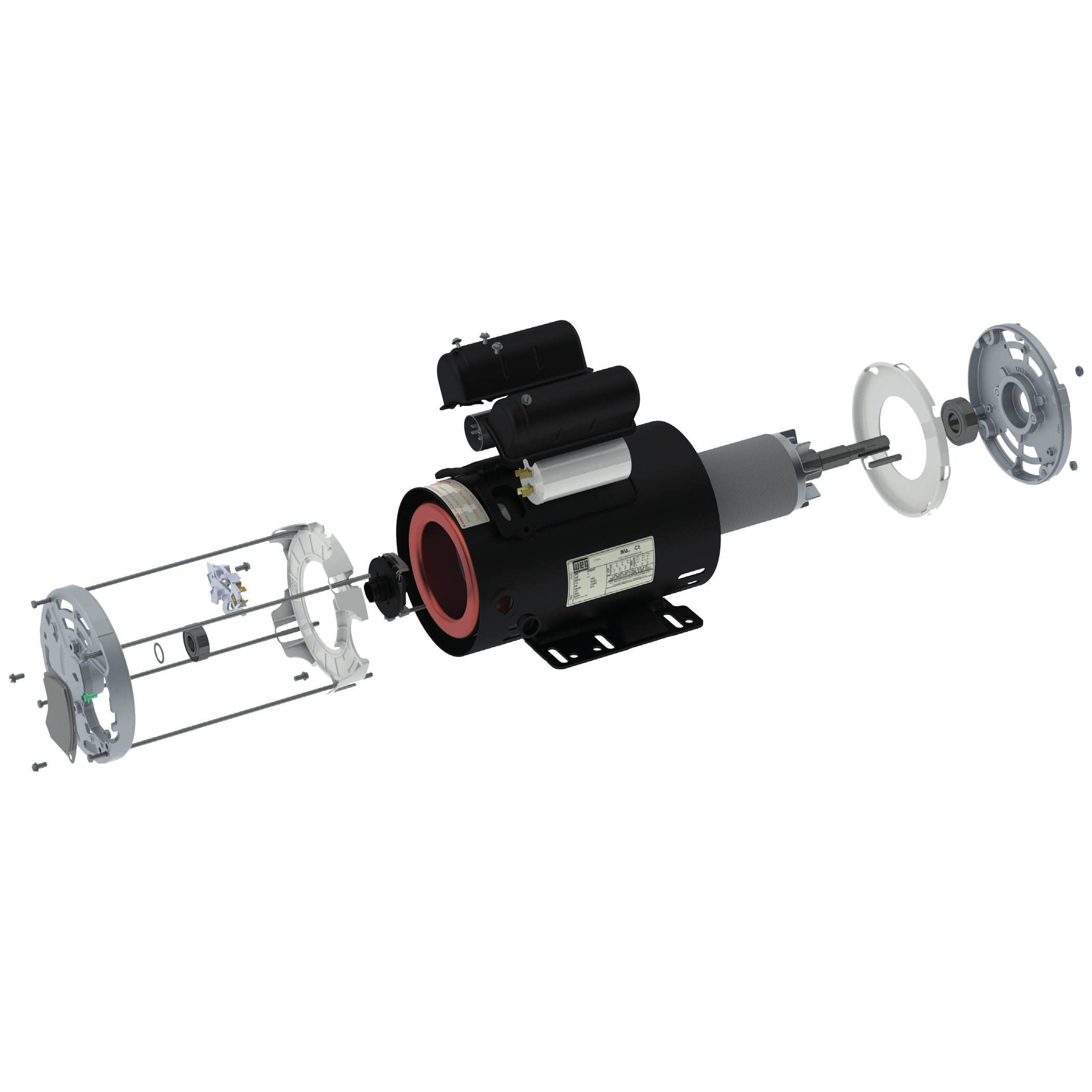

.5036OS1BCDW56-S WEG 1/2HP Compressor Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .5036OS1BCDW56-S

Selected accessories will also be added to cart

$199.36 / Each

Quantity:

IC01 - ODP, W56 Frame, 115/208-230VAC Single Phase 60Hz, 13470996, Foot Mount, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame	W56
Output	0.5 HP (0.37 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3450 rpm
Slip	4.17 %
Rated voltage	115/208-230 V
Rated current	6.20/3.40-3.10 A
L. R. Amperes	36.0/19.7-18.0 A
LRC	5.8x(Code K)
No load current	3.40/1.47-1.70 A
Rated torque	0.751 ft.lb
Locked rotor torque	190 %
Breakdown torque	190 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	0.0190 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.00 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	56.0 dB(A)
Approx. weightÂ³	18.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
57.4	63.0	63.5

Power factor

50%	75%	100%
0.66	0.77	0.82

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without

6203ZZC3 Koyo Ball Bearing, Shielded

6203ZZC3 Koyo Ball Bearing, Shielded

6203-ZZC3, 17mm x 40mm x 12mm
Available Stock: 15

MFG: JTEKT Corporation

6203-ZZC3

$6.00 / Each

Type

Electric Motor

Input Phase

Single Phase

Speed

3600RPM

Enclosure

ODP

Horsepower

1/2HP

Input Voltage

230VAC

Input Voltage

208VAC

Input Voltage

115VAC

Frame

W56
