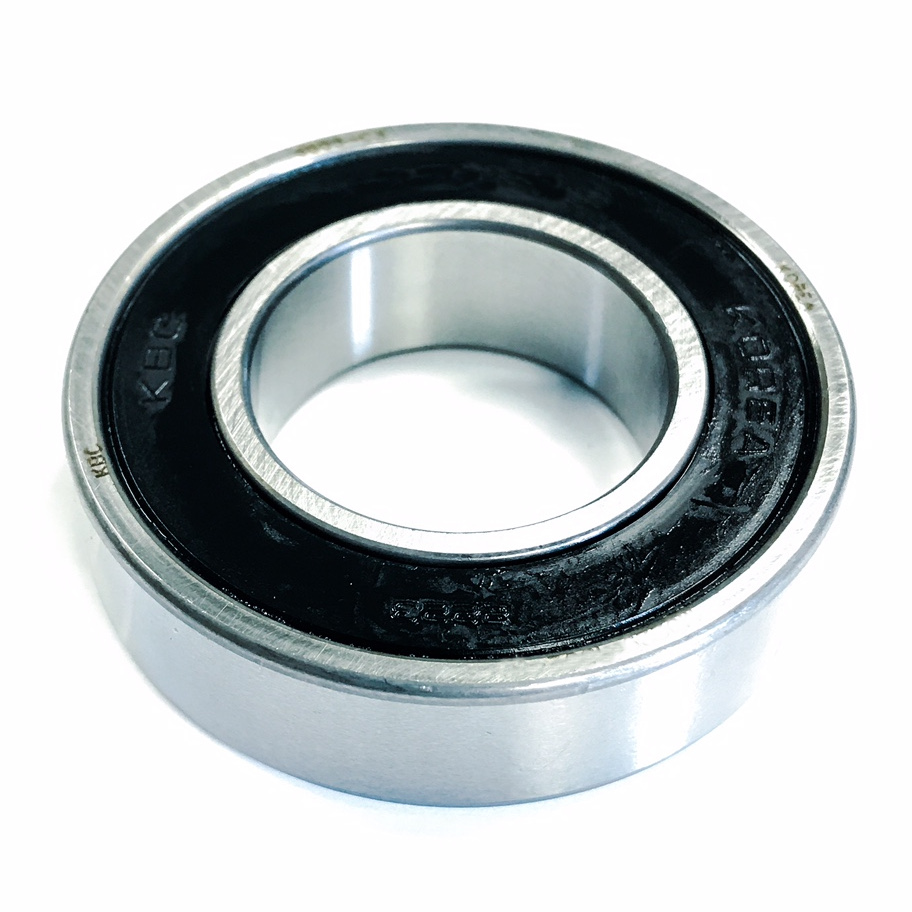

Brand	KBC Bearings (AST Bearing)
Manufacturer Part Number	6000DDC3G81
Group	Deep Groove Ball Bearings
Type	Rubbing Seals on Both Sides (DD)
Bore / Inside Diameter (d)	10 mm
Housing / Outside Diameter (D)	26 mm
Width (B)	8 mm
Minimum Radius (r)	0.3 mm
Operating Temperature	120°C
Cage Type	Pressed Steel Cage
Configuration	Single-row
Standards	KS B 2023
Allowable Misalignment	Low Loads: 2’… 6’ High Loads: 5’… 10’
Basic Load Rating	C_r 4550 N (464 kgf) C_0r 1960 N (200 kgf)
Limiting Speeds (Grease Lubrication)	22,000 min^-1
Weight	0.018 kg 0.04 lbs
Ball Qty	7
Ball Diameter	4.762 mm
Shaft Abutment Dimension (d_a)	12 mm Minimum
Housing Abutment Dimension (D_a)	24 mm Maximum
Abutment Radius (r_a)	0.3 mm Maximum
Precision	A1
Standard Clearance	C0
Material	52100 Chrome Steel (or equivalent)
Country of Manufacture	Korea

Type

Ball Bearing
