/Products/Ball Bearings/6000 Series Ball Bearings/6004DDC3G81 KBC Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6004-2RS

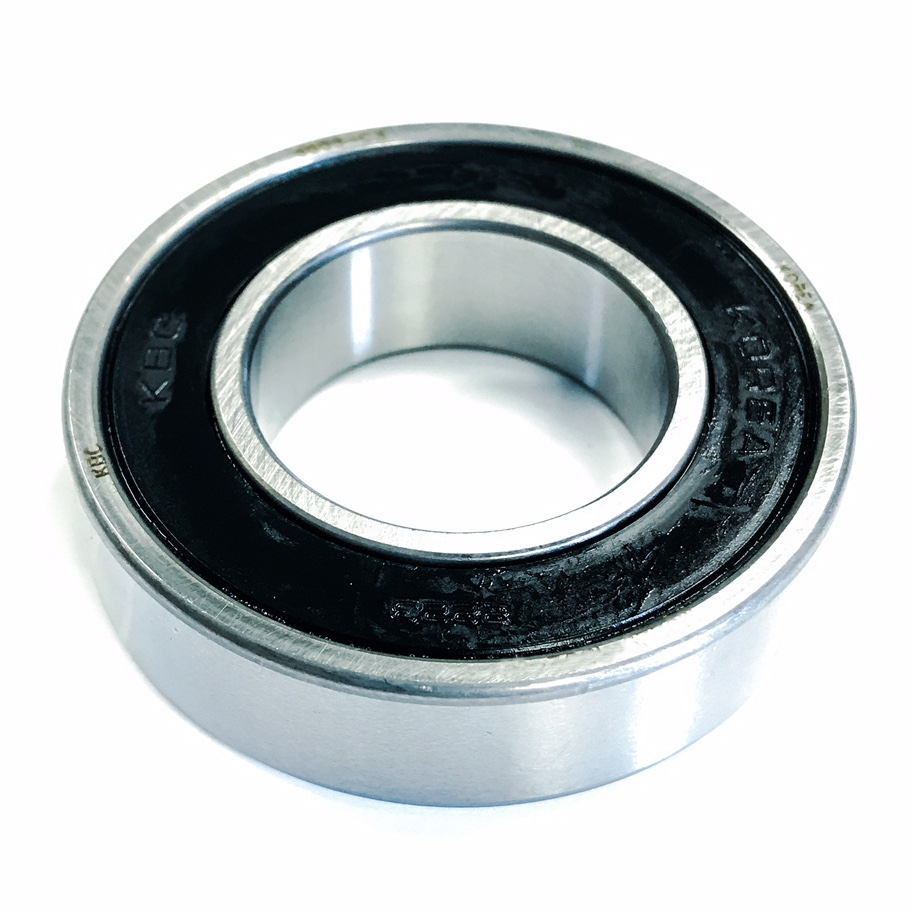

6004DDC3G81 KBC Ball Bearing, Rubber Sealed

MFG: AST Bearings (Owns KBC, JAF, SMT)
MFG Part Number: 6004DDC3G81

Available Stock: 9
Selected accessories will also be added to cart
$7.50 / Each
Quantity:
6004-2RS

Specifications

Brand KBC Bearings (AST Bearing)
Manufacturer Part Number 6004DDC3G81
Group Deep Groove Ball Bearings

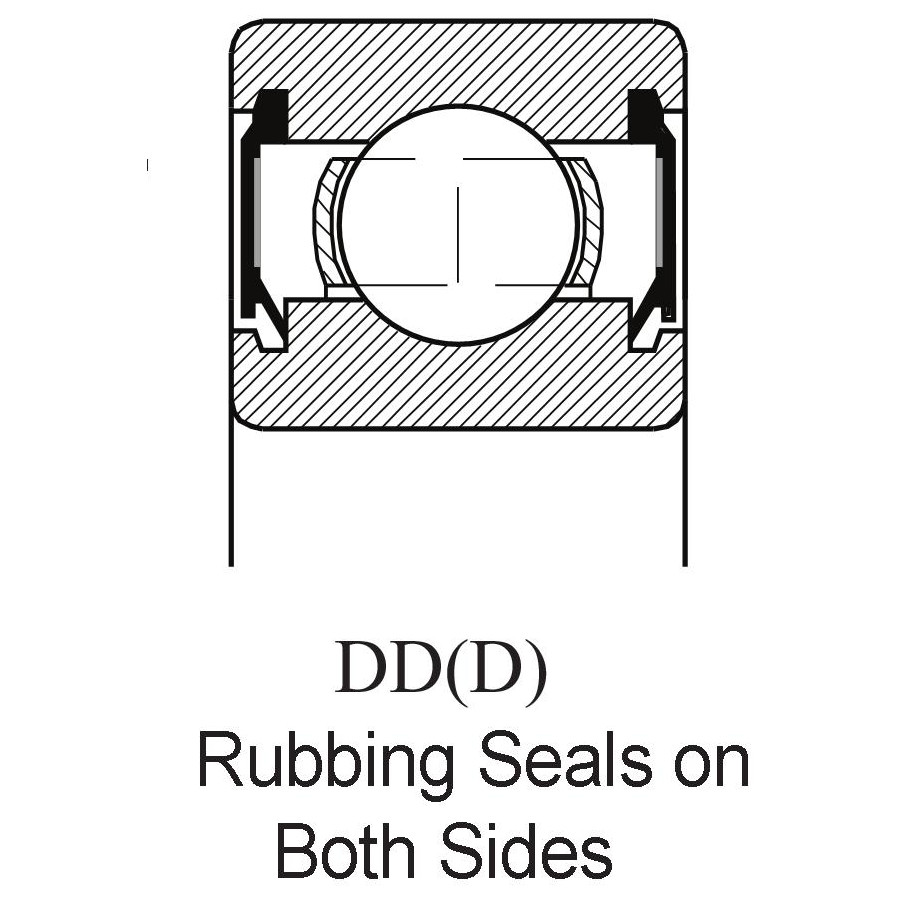

Type Rubbing Seals on Both Sides (DD)

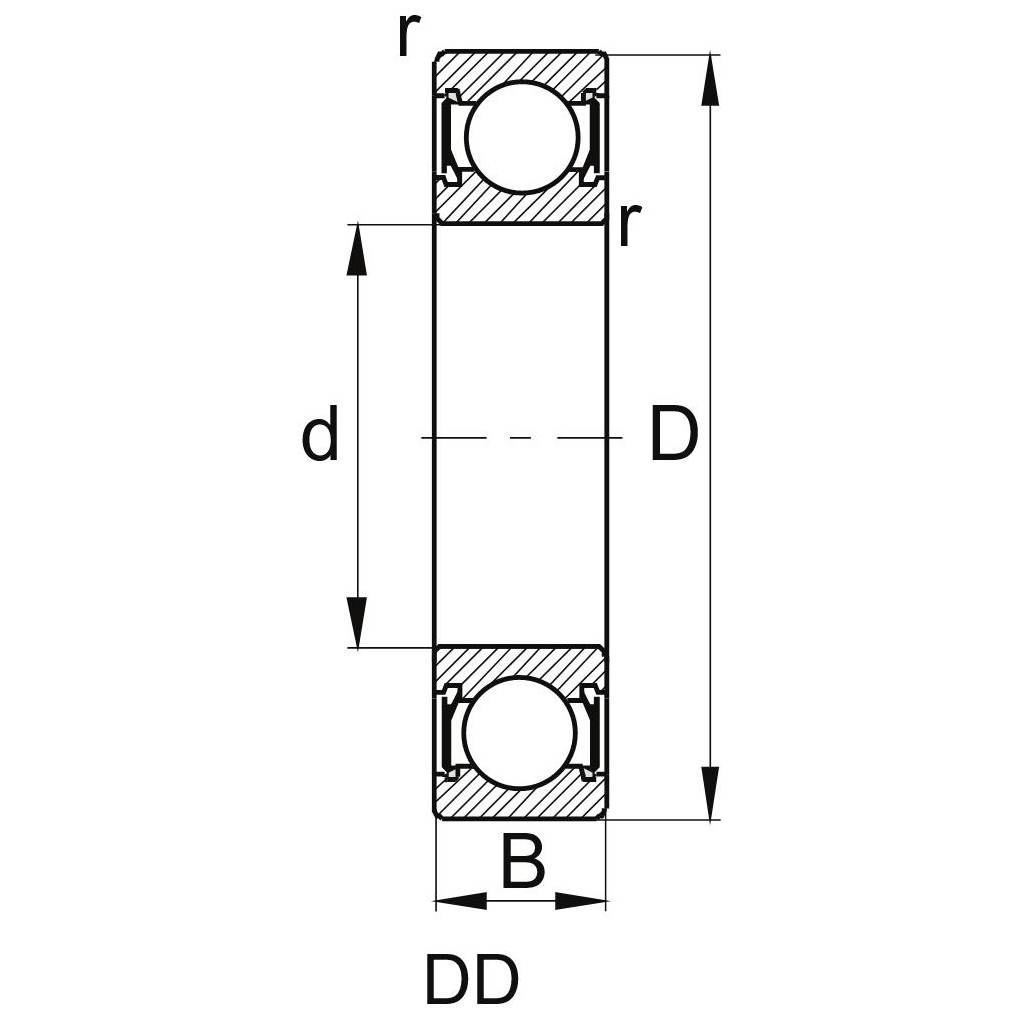

Bore / Inside Diameter (d) 20 mm
Housing / Outside Diameter (D) 42 mm
Width (B) 12 mm
Minimum Radius (r) 0.6 mm
Operating Temperature 120°C
Cage Type Pressed Steel Cage
Configuration Single-row
Standards KS B 2023
Allowable Misalignment Low Loads: 2’… 6’
High Loads: 5’… 10’
Basic Load Rating Cr 9,400 N (958 kgf)
C0r 5,000 N (510 kgf)
Limiting Speeds (Grease Lubrication) 11,000 min-1
Weight 0.07 kg
0.16 lbs
Ball Qty 9
Ball Diameter 6.35 mm
Shaft Abutment Dimension (da) 23.5 mm Minimum
Housing Abutment Dimension (Da) 38.5 mm Maximum
Abutment Radius (ra) 0.6 mm Maximum
Precision A1
Standard Clearance C0
Material 52100 Chrome Steel (or equivalent)
Country of Manufacture Korea
