/Products/Ball Bearings/6000 Series Ball Bearings/60062RSC3 KBC Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6006-2RS

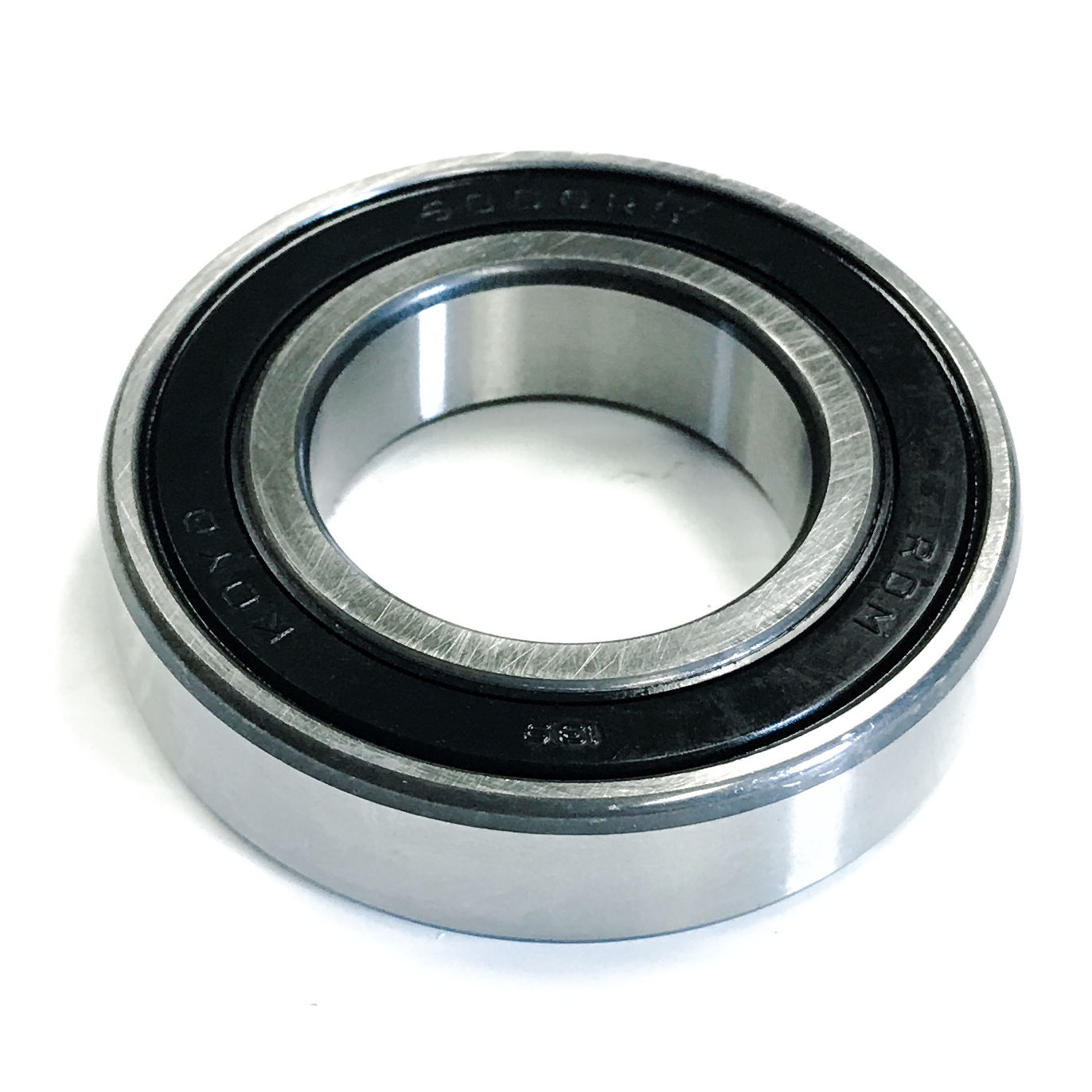

60062RSC3 KBC Ball Bearing, Rubber Sealed

MFG: AST Bearings (Owns KBC, JAF, SMT)
MFG Part Number: 60062RSC3

Available Stock: 3
Selected accessories will also be added to cart
$12.00 / Each
Quantity:
6006-2RS

Specifications

BrandKBC Bearings
Manufacturer Part Number60062RSC3
GroupDeep Groove Ball Bearings

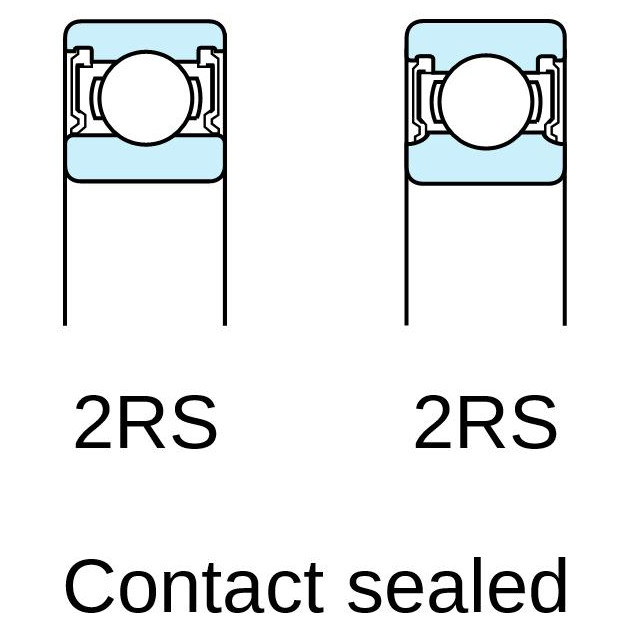

TypeContact Sealed (2RS)

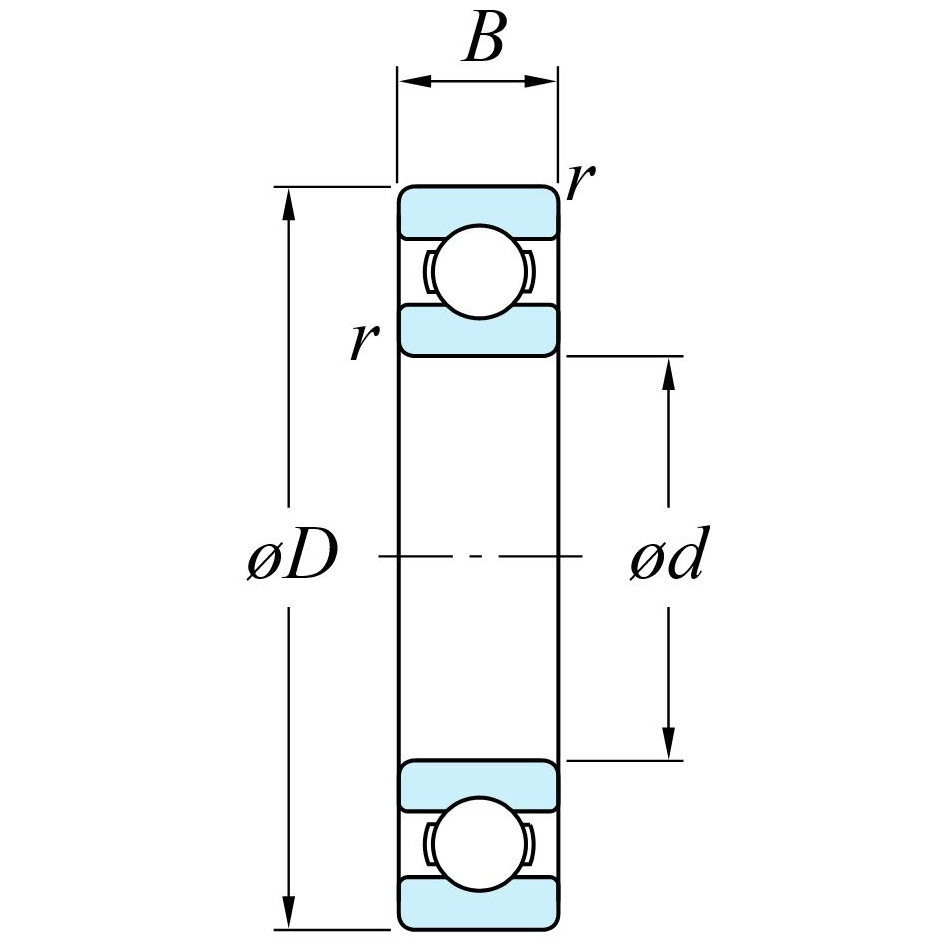

Bore / Inside Diameter (d)30 mm
Housing / Outside Diameter (D)55 mm
Width (B)13 mm
Minimum Radius (r)1 mm
Operating Temperature-30 to 110°C
Cage TypePressed Steel Cage
ConfigurationSingle-row
TolerancesJIS B 1514
Allowable Misalignment.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load RatingCr 13.2 kN
C0r 8.25 kN
Fatigue Load Limit (Cu)0.530 kN
Factor (f0)14.7
Limiting Speeds (Grease Lubrication)7,500 min-1
Shaft Shoulder Mounting Dimension (da)35 mm Minimum
36 mm Maximum
Housing Shoulder Mounting Dimension (Da)50 mm Maximum
Shoulder Radius (ra)1 mm Maximum
Mass0.116 kg
0.26 lbs
UPC
Country of ManufactureJapan
Type
Ball Bearing
