Product ID: 6007-2RS

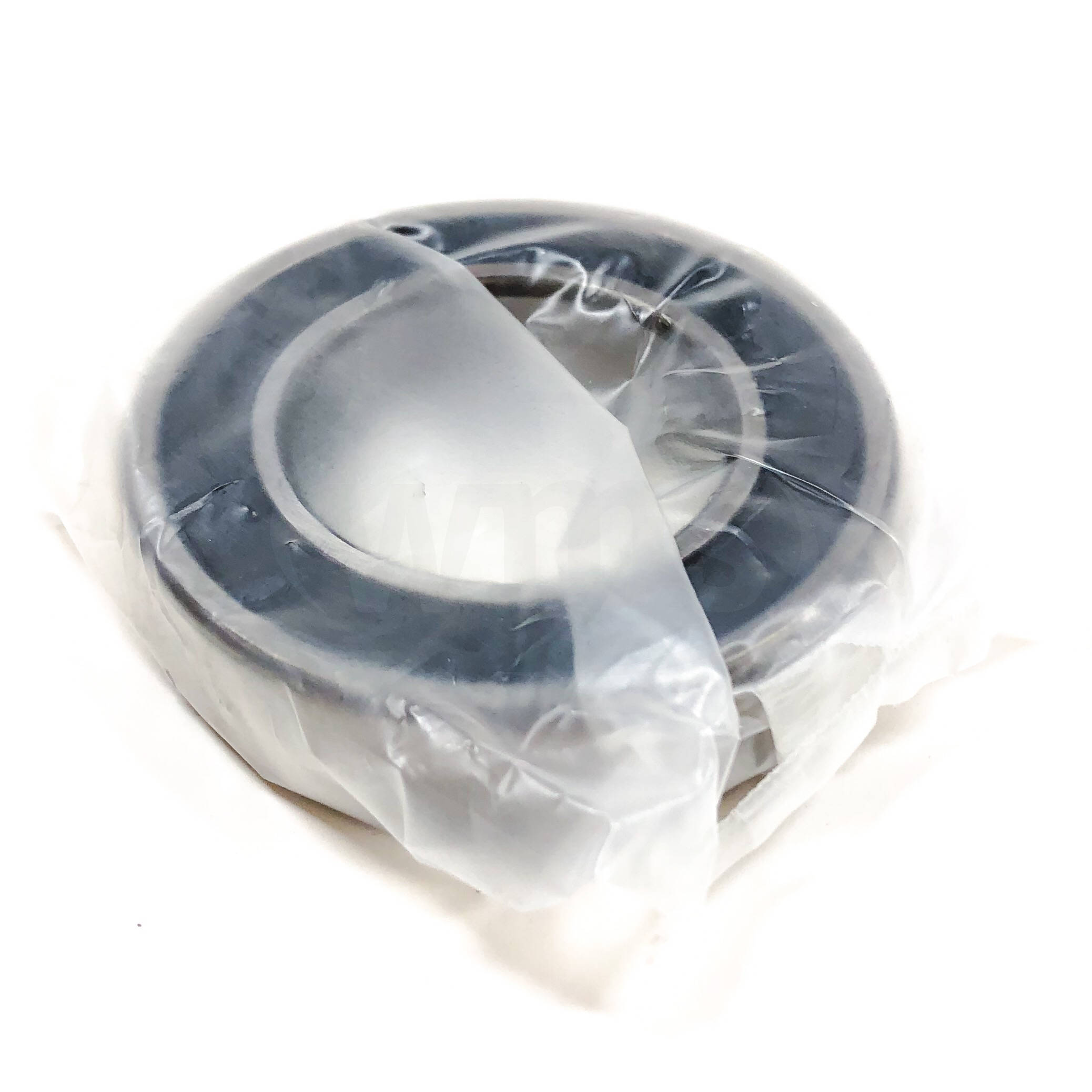

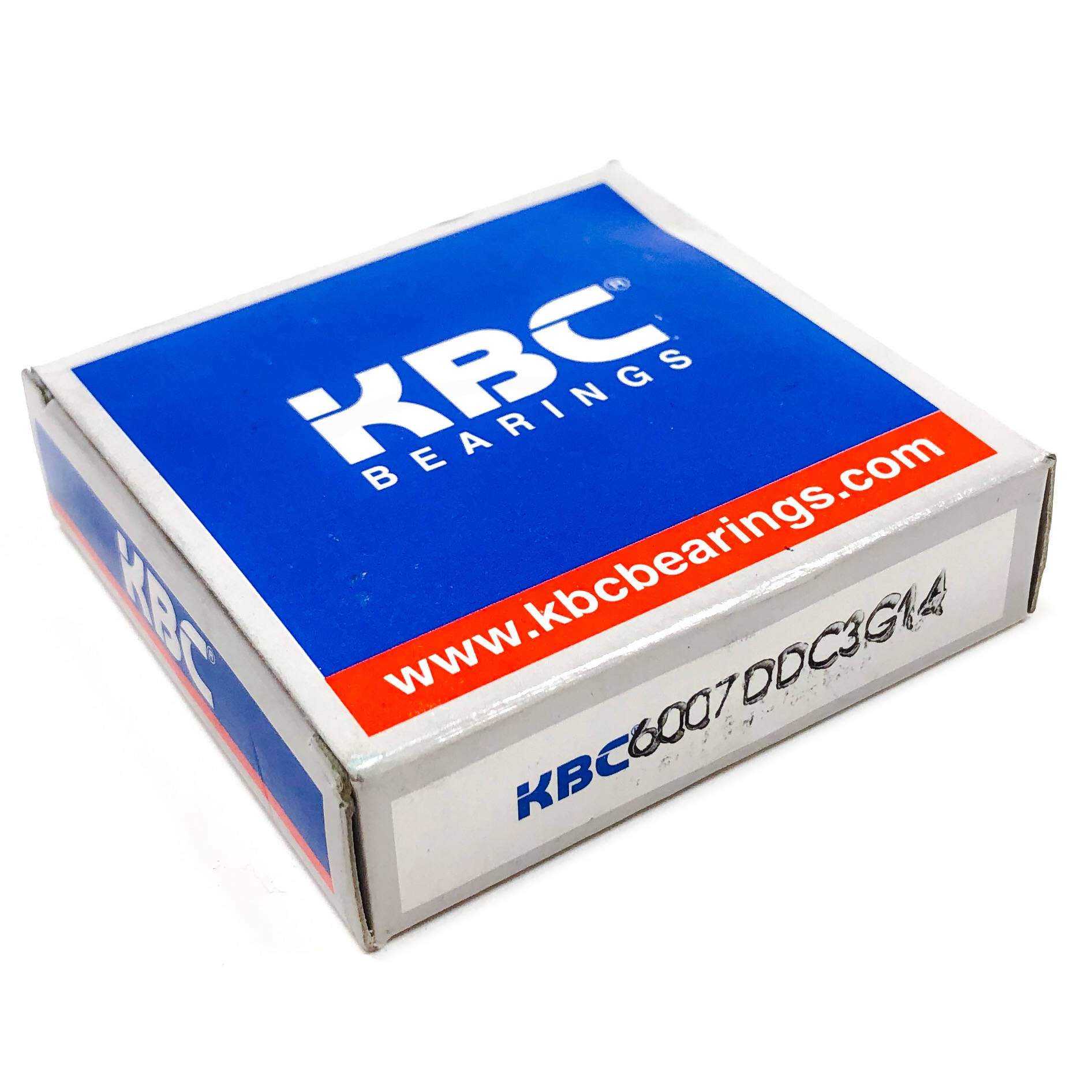

6007-2RS KBC Ball Bearing, Rubber Sealed

MFG: AST Bearings (Owns KBC, JAF, SMT)
MFG Part Number: 6007DDC3G14

Selected accessories will also be added to cart
$21.12 / Each
Quantity:

Available Stock: 6

Specifications

Brand KBC Bearings
Manufacturer Part Number 6007DDC3G14
Group Deep Groove Ball Bearings
Type Contact Sealed (2RS)
Bore / Inside Diameter (d) 35 mm
Housing / Outside Diameter (D) 62 mm
Width (B) 14 mm
Minimum Radius (r) mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 13.2 kN
C0r 8.25 kN
Fatigue Load Limit (Cu) kN
Factor (f0)
Limiting Speeds (Grease Lubrication) min-1
Shaft Shoulder Mounting Dimension (da) mm Minimum
mm Maximum
Housing Shoulder Mounting Dimension (Da) mm Maximum
Shoulder Radius (ra) mm Maximum
Mass kg
lbs
UPC
Country of Manufacture Japan
