Available Stock: 2

Selected accessories will also be added to cart

$24.09 / Each

Quantity:

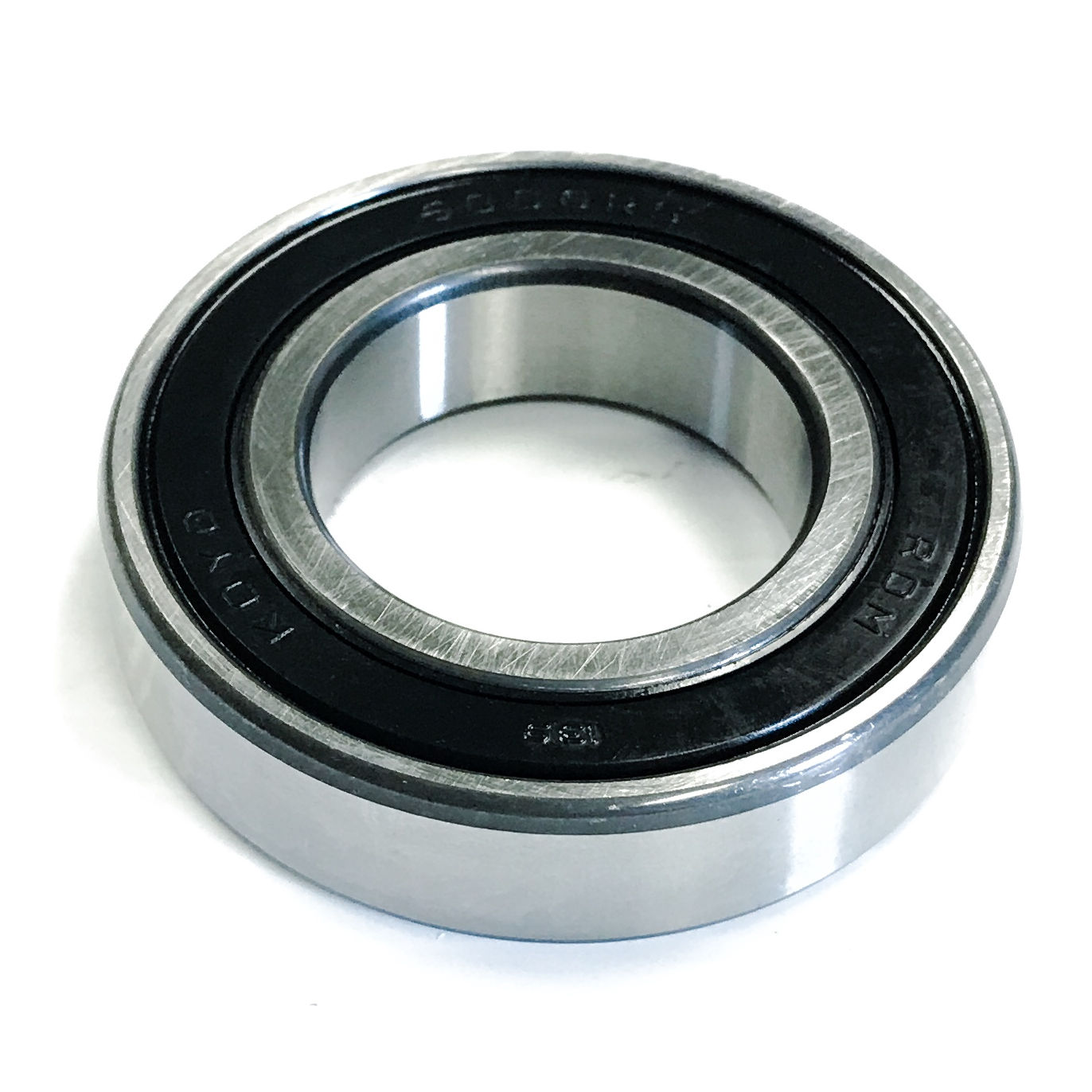

6008-2RS

Brand	Koyo Seiko Company, LTD
Manufacturer Part Number	60082RSC3
Group	Deep Groove Ball Bearings

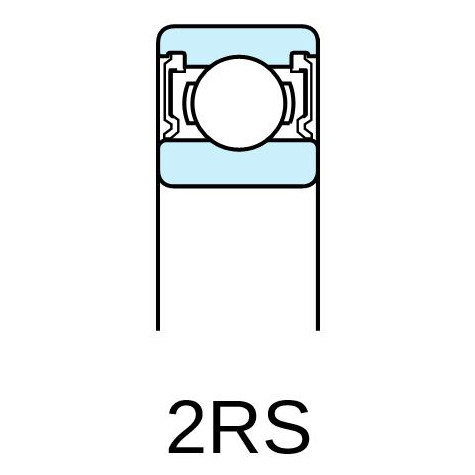

Type	Contact Sealed (2RS)

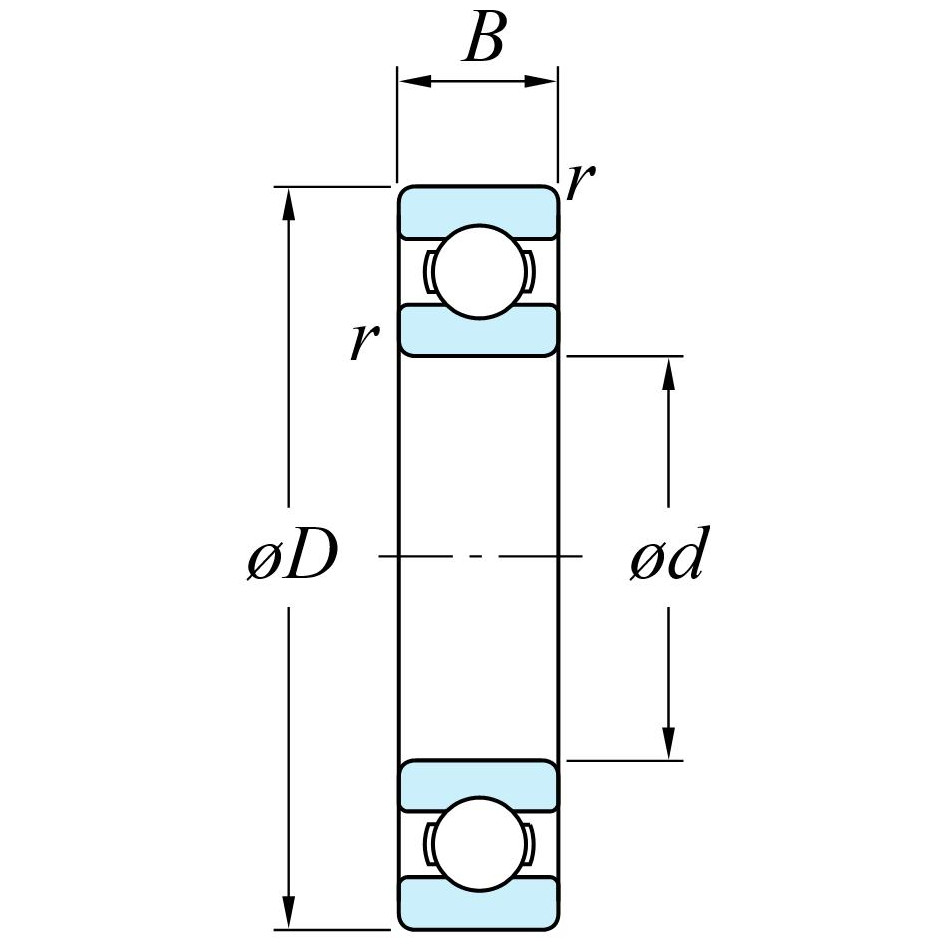

Bore / Inside Diameter (d)	40 mm
Housing / Outside Diameter (D)	68 mm
Width (B)	15 mm
Minimum Radius (r)	1 mm
Operating Temperature	-30 to 110°C
Cage Type	Pressed Steel Cage
Configuration	Single-row
Tolerances	JIS B 1514
Allowable Misalignment	.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating	C_r 16.7 kN C_0r 11.5 kN
Fatigue Load Limit (C_u)	0.690 kN
Factor (f0)	15.2
Limiting Speeds (Grease Lubrication)	5,800 min^-1
Shaft Shoulder Mounting Dimension (d_a)	45 mm Minimum 46.5 mm Maximum
Housing Shoulder Mounting Dimension (D_a)	63 mm Maximum
Shoulder Radius (r_a)	1 mm Maximum
Mass	0.192 kg 0.43 lbs
UPC	4549250144936
Country of Manufacture	Japan
